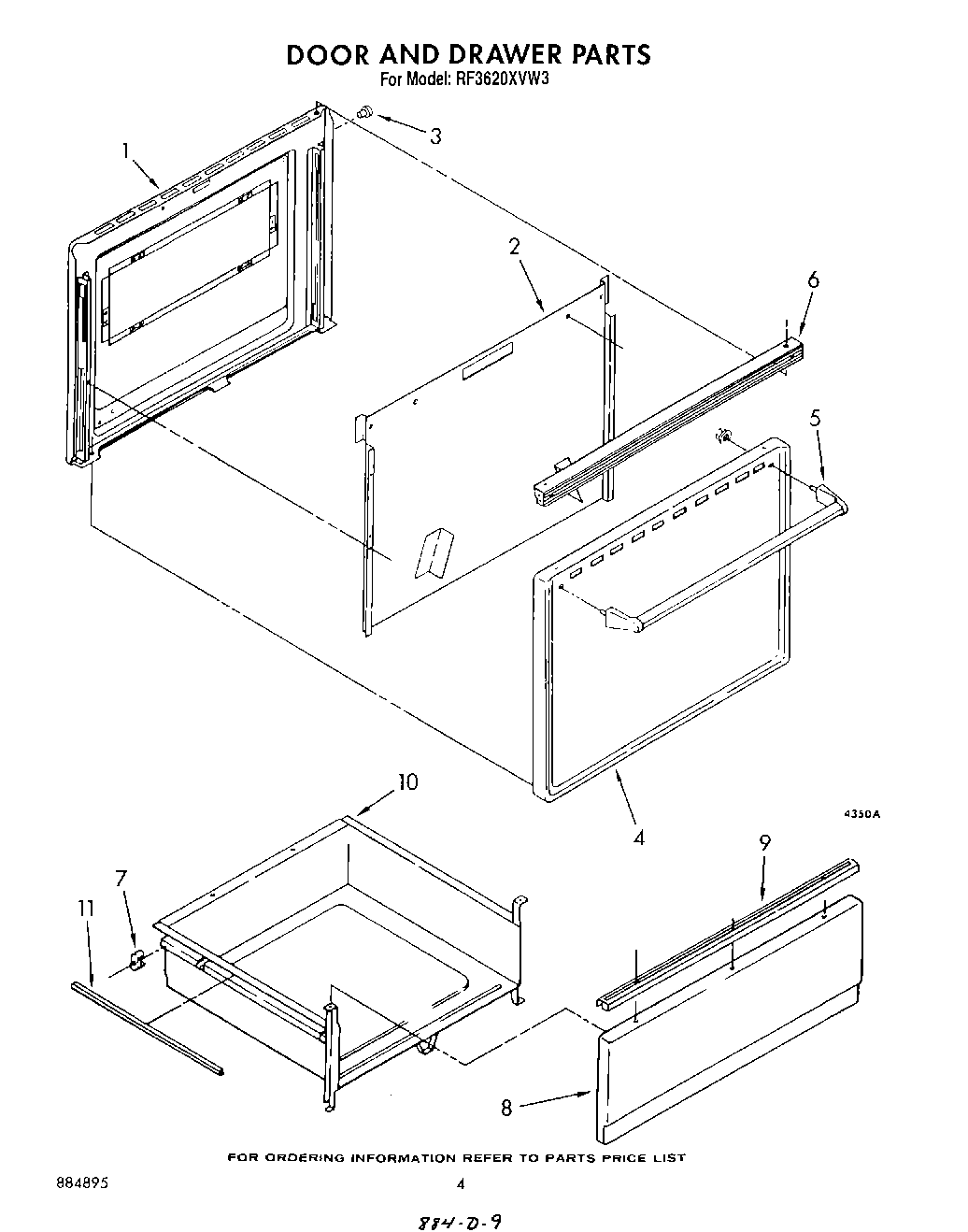

RF3620XVW3 04 – DOOR AND DRAWER

Products

Position	Product
	List, Parts
	Wiring Diagram
	Guide, Use & Care
	Instructions, Installation
1	Liner, Oven Door
2	Screw
2	Retainer, Insulation
3	Bumper (4)
4	Panel, Door (White)
4	Panel, Door (Almond)
5	Handle, Door
5	WP308499 Whirlpool Nut
6	Panel, Door (Fastener (2))
6	Top, Door
7	Screw, 10A x 1/2 (2) (Black)
7	Glide, Rear (2)
8	Panel Drawer (White)
8	Panel, Drawer (Almond)
8	WP488787 Whirlpool Refrigerator Screw
9	Handle, Drawer
9	WP488627 Whirlpool Refrigerator Screw
10	Drawer, Utility
11	Protector, Drawer (2)
