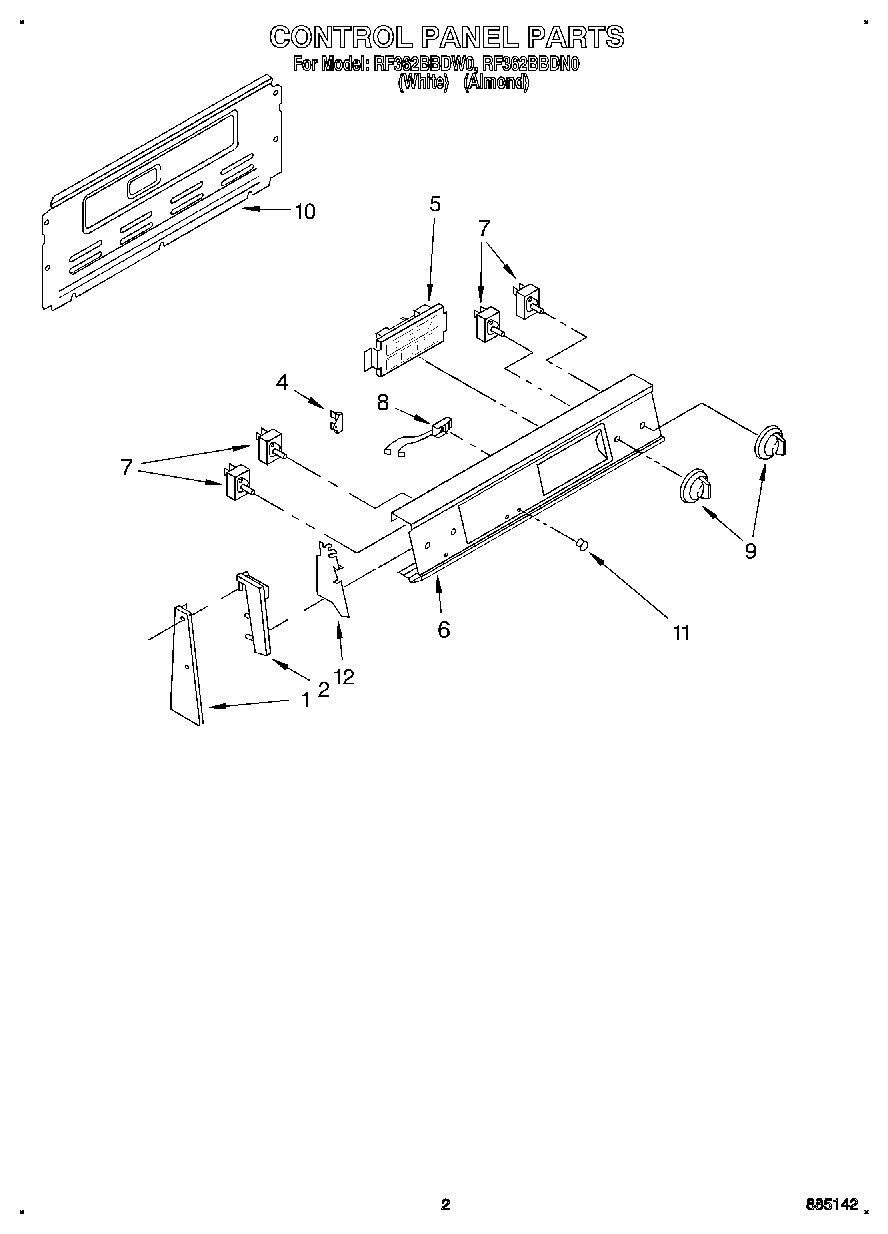

RF362BBDN0 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	End Trim (LH, Black)
1	End Trim R.H. (Black)
2	End Cap L.H. (Black)
2	Screw,
2	End Cap, R.H. (Black)
4	Fuse, Thermal
5	Electronic Control (White/Almond Mdl.)
6	Panel, Control
7	WP3149400 Whirlpool Oven Infinite Switch
7	Screw, 8-32 x 3/16 (2)
7	WP3148952 Whirlpool Oven Infinite Switch
8	Indicator Light (Surface Unit On)
9	WP3196231 Whirlpool Knob
10	SCREW
10	Rear Cover Contr
11	Lens, Amber
12	WP965173 Whirlpool Dishwasher Screw
12	Shield (2)
