RF362BBDN0 04 – DOOR AND DRAWER

RF362BBDN0 04 – DOOR AND DRAWER

Written by

in

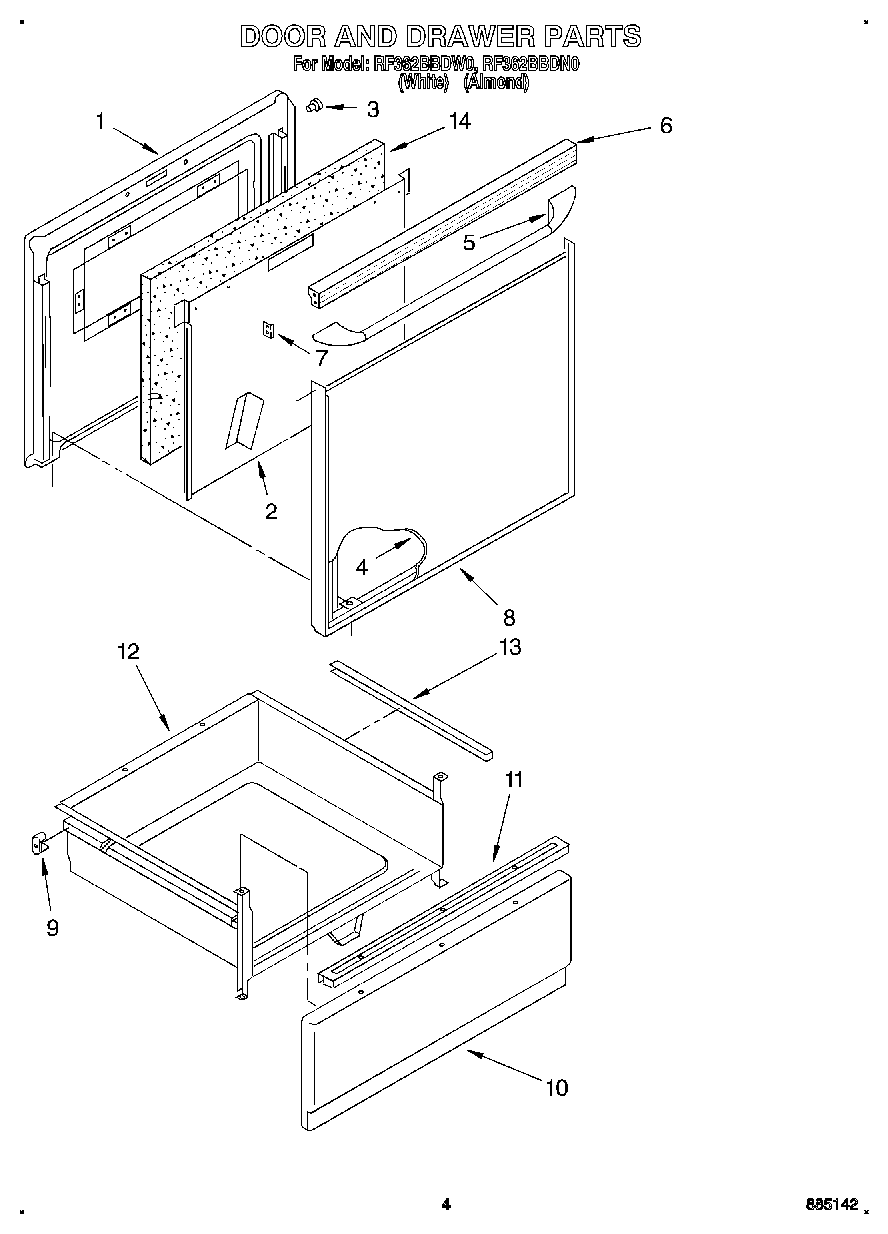

RF362BBDN0 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Oven Door
2Retainer, Insulation
2Screw
3Bumper (4)
4Panel, Door (Black Glass)
5Handle, Door (Black)
5WP999367 Whirlpool Refrigerator Screw
6Top, Door Frame (Black)
6Screw, 10A x 1/2 (2) (Black)
7Clip, Mtg (2)
8Back Splash (Screw (4) 10AB x 1/2“)
8Frame, Door (Black)
8Handle, Door (Screw (4))
9WP308685 Whirlpool Microwave Screw
9Glide, Rear (2)
10Panel Drawer (White)
10Panel Drawer (Almond)
10WP488627 Whirlpool Refrigerator Screw
11Handle, Drawer (Almond)
11Handle, Drawer (White)
12Drawer, Utility
13Protector, Drawer (2)
14Insulation, Door
