RF362BBDQ0 04 – DOOR AND DRAWER

RF362BBDQ0 04 – DOOR AND DRAWER

Written by

in

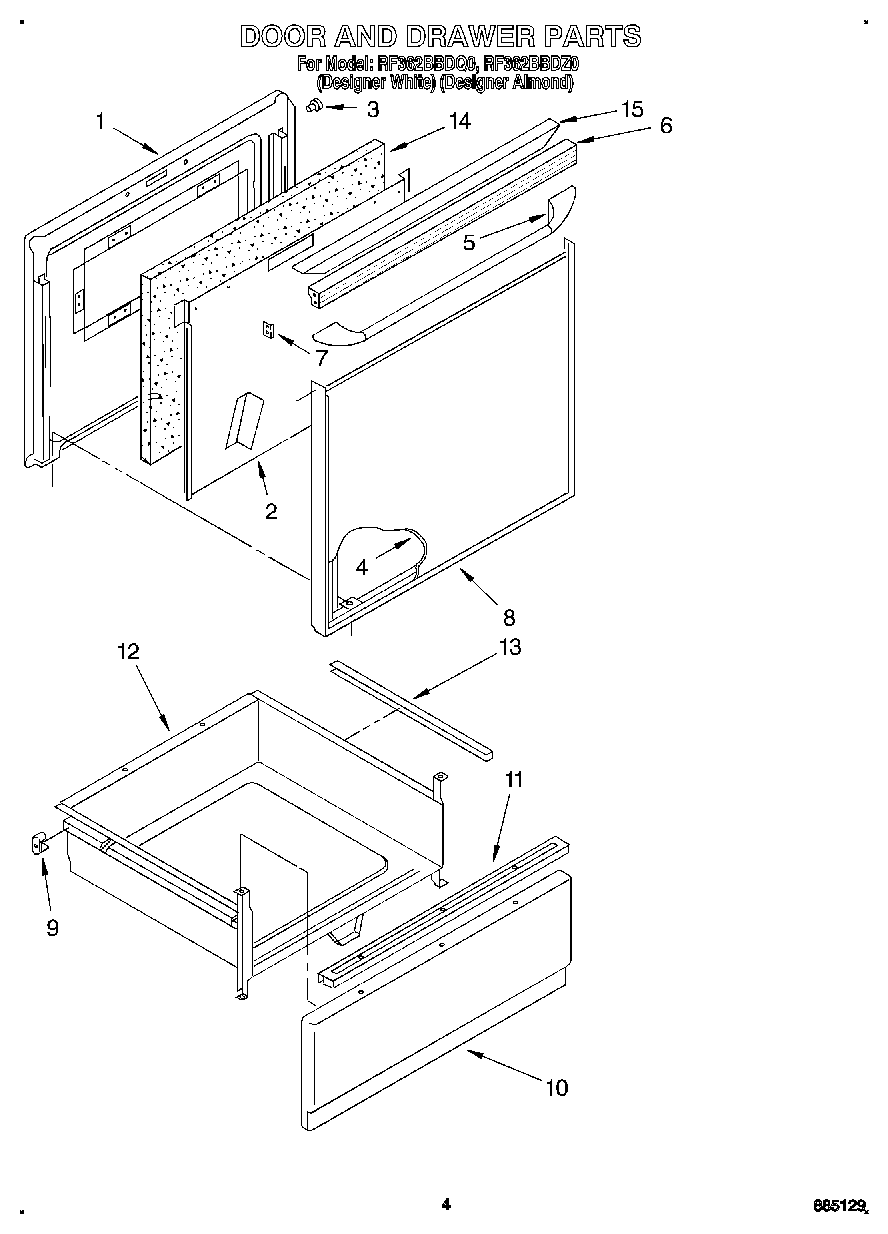

RF362BBDQ0 04 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Oven Door
2Retainer, Insulation
2Screw
3Bumper (4)
4Outer Glass (Almond)
4Outer Glass Panel (Designer White)
5WP999367 Whirlpool Refrigerator Screw
5Handle, Door (Almond)
5Handle, Door (White)
6Top, Door Frame (Designer Almond)
6Screw, 10A x 1/2 (2) (Black)
6Top, Door Frame (Designer White)
7Clip, Mtg (2)
7Back Splash (Screw (4) 10AB x 1/2“)
8Frame, Door (Almond)
8Frame, Door (White)
8Frame, Door (Screw (4))
8Handle, Door (Screw)
8Screw
9Glide, Rear (2)
9WP308685 Whirlpool Microwave Screw
10Panel Drawer (Almond)
10Panel Drawer (White)
10WP488627 Whirlpool Refrigerator Screw
11Handle, Drawer (Almond)
11Handle, Drawer (White)
12Drawer, Utility
13Protector, Drawer (2)
14Insulation, Door
15Cap, Top (Designer Almond)
15Cap, Top (Designer White)
15Top, Door Frame (Screw (2))
15Top, Door Frame (Screw (2))
