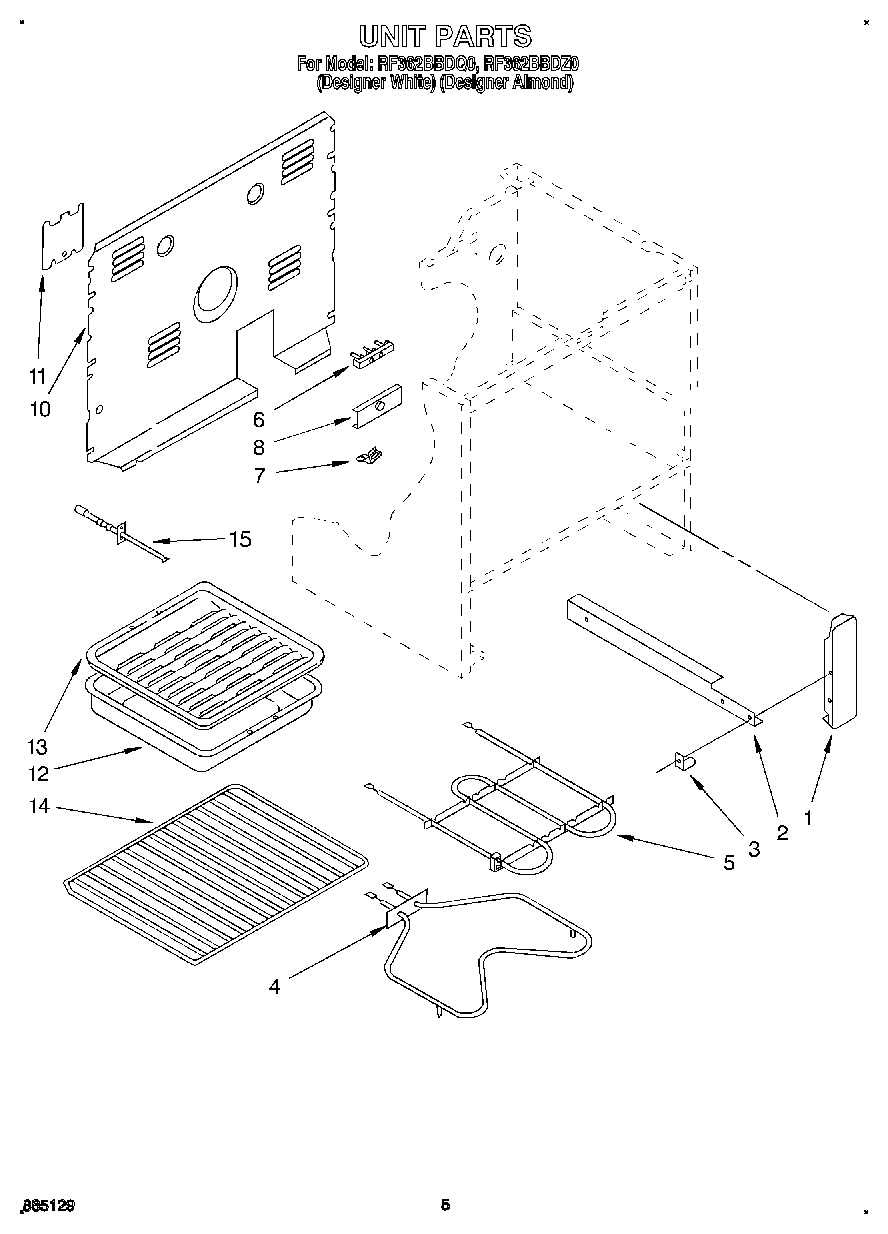

RF362BBDQ0 05 – UNIT, OPTIONAL

Products

Position	Product
	WPL LIT677973
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1	Bracket, Mounting (2)
2	Rail R.H. (Includes Illus. 3)
2	Rail L.H. (Includes Illus. 3)
3	Glide, Front (2)
3	Screw, 10A x 1/2 (2) (Black)
4	ELMNT-BAKE
4	WP312309 Whirlpool Bake Element
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Unit, Broil (208V)
5	Screw (2)
6	WP112432 Whirlpool Nut Assembly
6	Screw, (2) 10-16 x 1
6	WP8203546 Whirlpool Terminal Block
7	WPL 308498
7	Clip, Ground Wire
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	WPL 308172
14	WPL 308173
15	18 Ga. 80~c Rating (Red)
15	Leveler (Thinner) (2oz.)
15	350930 Whirlpool White Spray Paint
15	Wire (14 Ga. 150 c Brown)
15	Wire (14 Ga. 150 c Green)
15	1
15	Grease
15	Wire (14 Ga. 150 c Orange)
15	Wire (14 Ga. 200 c Brown)
15	Wire (14 Ga. 150 c Yellow)
15	Wire (12 Ga. 150 c Black)
15	8212471 Whirlpool Oven Paint
15	Wire (14 Ga. 150 c Blue)
15	242831 Whirlpool Oven Wire
15	Platinum (Uncut)
15	Enamal, Toast (1 Qt. Uncut)
15	Paint, Spray (13 Oz.) (Platinum)
15	Toast
15	Golden Harvest (Uncut)
15	Golden Harvest
15	72113 Whirlpool Touch-Up Paint
15	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
15	Almond (Uncut)
15	WP72107 Whirlpool Touchup
15	799344 Whirlpool Refrigerator Paint
15	72017 Whirlpool Appliance Touch-Up Paint White
15	WPL 72112
15	350942 Whirlpool Spray Paint
15	511873 Whirlpool Refrigerator Paint
15	285006 Whirlpool Spray
15	Sensor, Heat
15	Screw (2)
15	Paint, Spray 13 Oz. (Avocado)
15	paint, spray 13 oz. (coffee)
15	Paint, Touch-Up 1/2 Oz. (Coffee)
15	72109 Whirlpool Dacor Avocado Touch-Up Paint
15	Wire, 25“ Roll (White 14 GA.)
15	Wire, 25` Roll (Red 14 Ga.)
15	Wire, 25` Roll (Black 14 Ga.)
15	FOIL, ALUMINUM OVEN (18“ X 25 )
15	WPL 799832
15	350956 Whirlpool Spray Assembly
