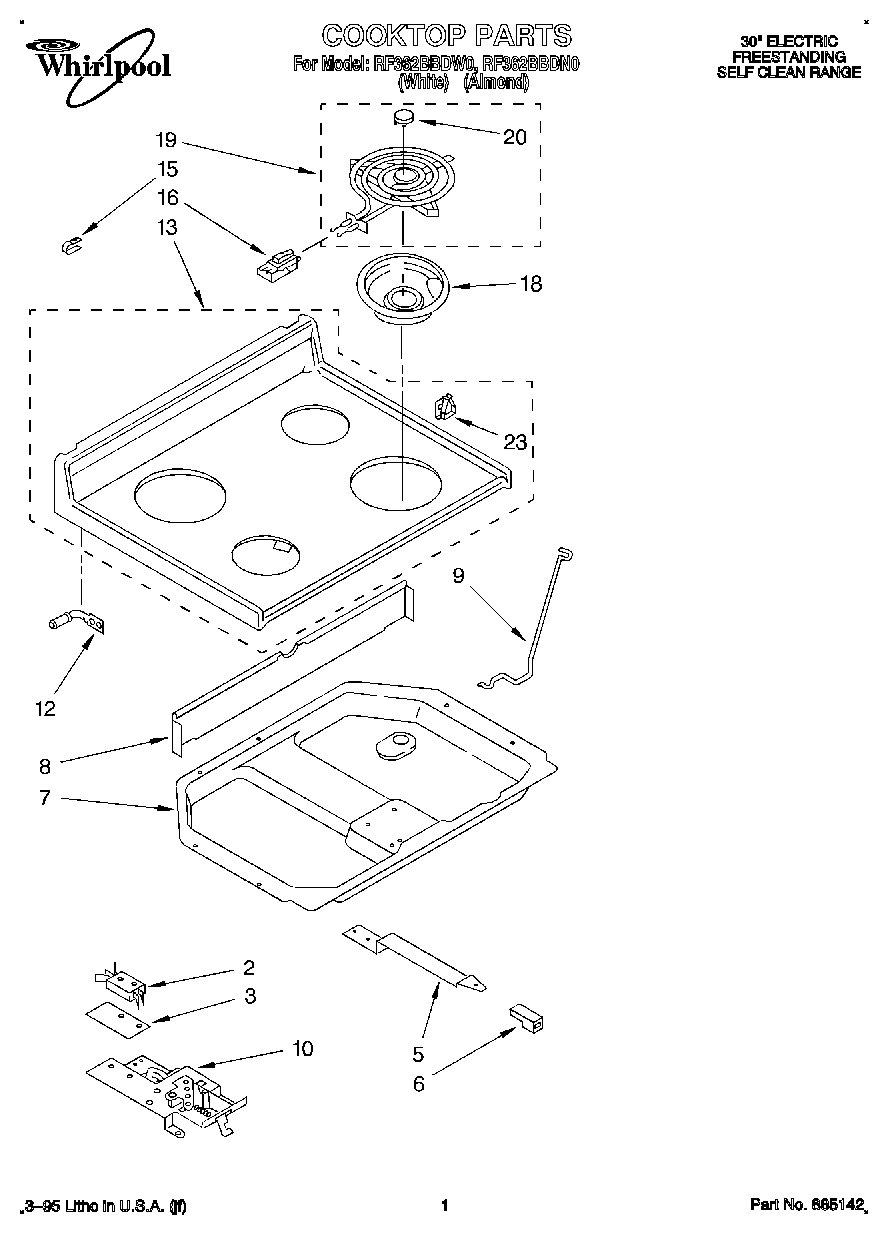

RF362BBDW0 01 – COOKTOP
Written by
in
RF362BBDW0 01 – COOKTOP
Products
Position
Product
2
Safety Switch
2
WPL 312717
3
Insulator, Switch
5
Screw
5
Handle, Latch
6
Knob, Latch
7
Box, Burner
7
WP3390631 Whirlpool Screw
8
Shield, Wiring
9
Rod, Cooktop
10
Latch Mechanism
12
Pin, Cooktop (2)
13
Cooktop (White)
13
Cooktop (Almond)
15
SCREW
15
WP308605 Whirlpool Refrigerator Clamp
16
WP4332752 Whirlpool Clip
16
WP313808 Whirlpool Screw
18
WPW10290353 Whirlpool Drip Bowl 6" ClimaTek
18
WPW10290350 Whirlpool Stove Drip Bowl
19
WP660532 Whirlpool Oven Surface Element
19
WP660533 Whirlpool Oven 8" Surface Element
20
Medallion (4)
23
814103 Whirlpool Clip
23
WP487887 Whirlpool Refrigerator Screw
23
Nut (4)
←
