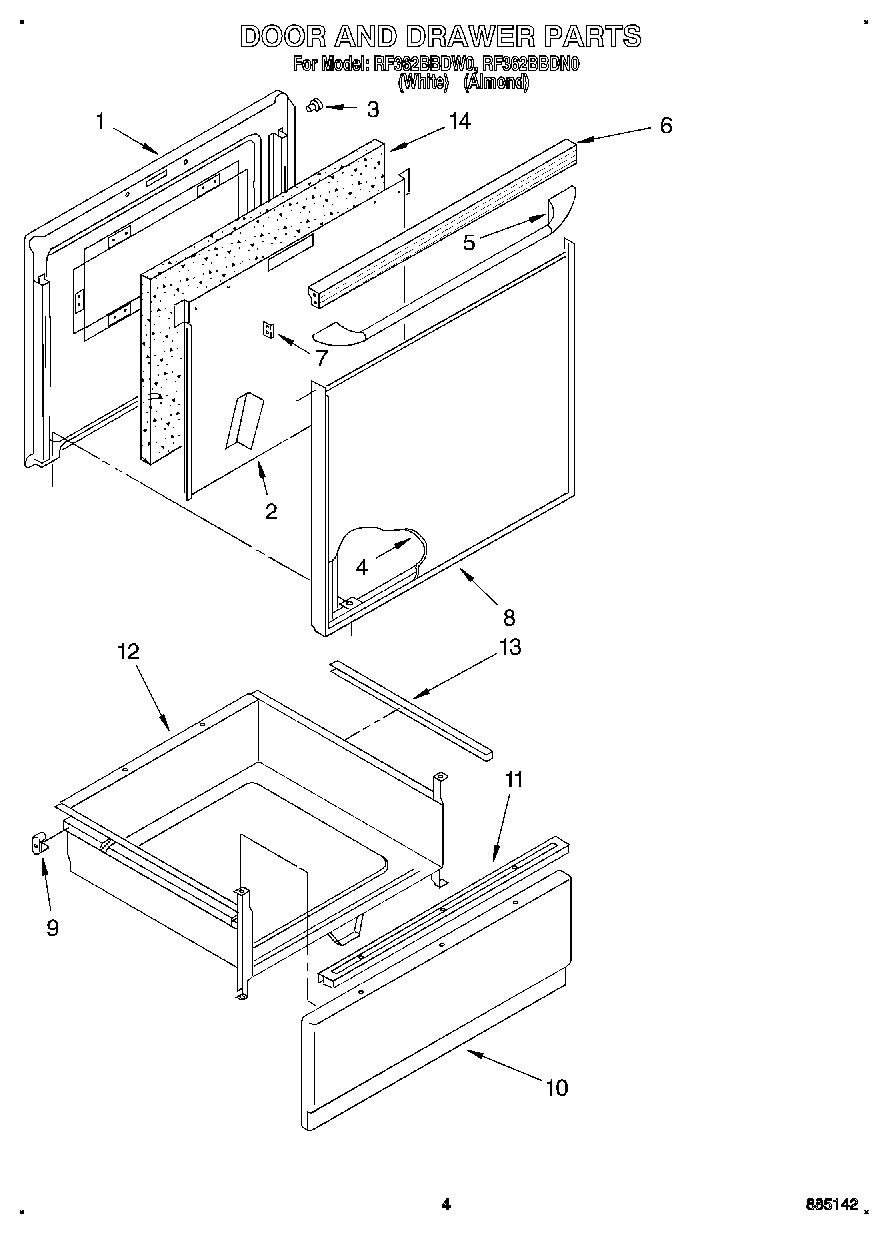

RF362BBDW0 04 – DOOR AND DRAWER
Written by
in
RF362BBDW0 04 – DOOR AND DRAWER
Products
Position
Product
1
Liner, Oven Door
2
Retainer, Insulation
2
Screw
3
Bumper (4)
4
Panel, Door (Black Glass)
5
Handle, Door (Black)
5
WP999367 Whirlpool Refrigerator Screw
6
Top, Door Frame (Black)
6
Screw, 10A x 1/2 (2) (Black)
7
Clip, Mtg (2)
8
Back Splash (Screw (4) 10AB x 1/2“)
8
Frame, Door (Black)
8
Handle, Door (Screw (4))
9
WP308685 Whirlpool Microwave Screw
9
Glide, Rear (2)
10
Panel Drawer (White)
10
Panel Drawer (Almond)
10
WP488627 Whirlpool Refrigerator Screw
11
Handle, Drawer (Almond)
11
Handle, Drawer (White)
12
Drawer, Utility
13
Protector, Drawer (2)
14
Insulation, Door
←
