RF362BBDZ0 02 – CONTROL PANEL
Written by
in

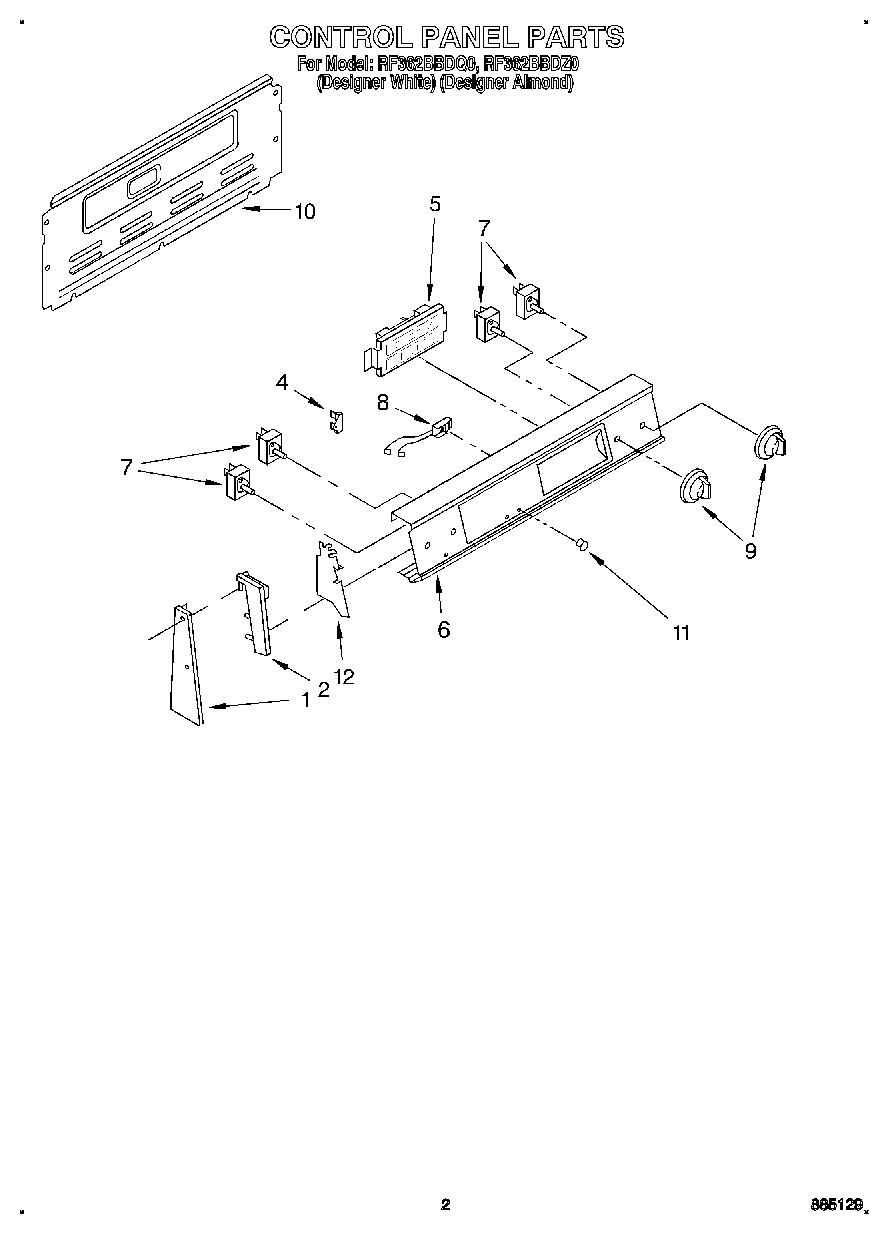

RF362BBDZ0 02 – CONTROL PANEL
Products
Position
Product
1
WP3390631 Whirlpool Screw
1
End Trim (LH, Designer White)
1
End Trim R.H. (Designer White)
1
End Trim (LH, Designer Almond)
1
End Trim R.H. (Designer Almond)
2
End Cap L.H. (Designer White)
2
End Cap R.H. (Designer Almond)
2
Screw,
2
End Cap L.H. (Designer Almond)
2
End Cap R.H. (Designer White)
4
Fuse, Thermal
5
Electronic Control (Designer White Mdl)
5
Timer, ERC Control (Designer Almond)
6
Panel, Control (Designer White)
6
Panel, Control (Almond)
6
Washer
7
Screw, 8-32 x 3/16 (2)
7
WP3148952 Whirlpool Oven Infinite Switch
7
WP3149400 Whirlpool Oven Infinite Switch
8
Indicator Light (Surface Unit On)
9
WP3196232 Whirlpool Knob
9
WPL 3188723
10
Rear Cover Contr
10
SCREW
11
Lens, Amber
12
Shield (2)
12
WP965173 Whirlpool Dishwasher Screw
←
