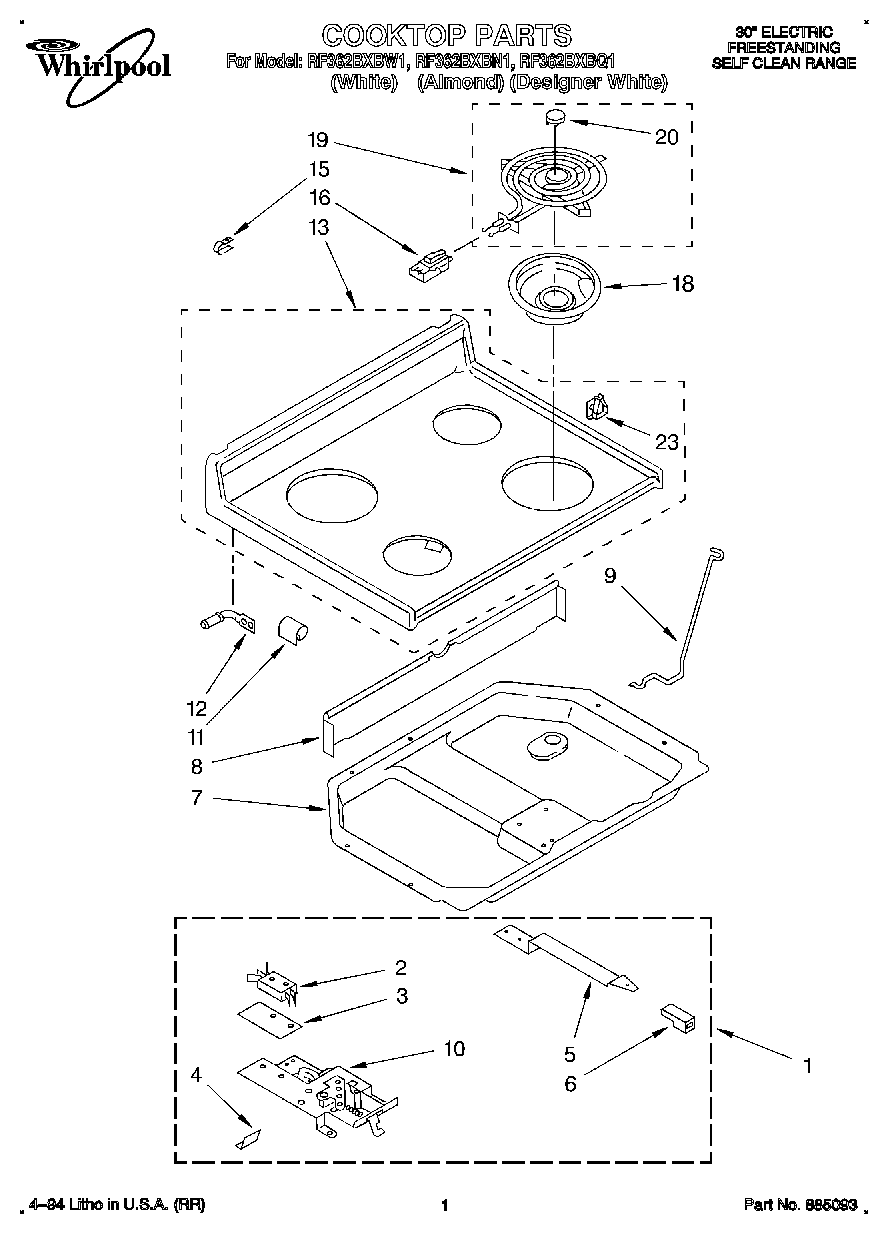

RF362BXBN1 01 – COOKTOP, LITERATURE

Products

Position	Product
	WPL LIT3150400
	Use & Care Guide
	WPL LIT677973
	Instructions, Installation
	Wiring Diagram
1	Latch Asm Complete W/Wiring Harness
1	Designer White Mdl
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Shield, Latch
4	Screw
4	Screw
5	WP486579 Whirlpool Air Conditioner Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	Knob, Latch
7	Box, Burner
7	WP3390631 Whirlpool Screw
8	Shield, Wiring
9	Rod, Cooktop
10	Latch Mechanism
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Almond)
13	Cooktop (White)
15	WP308605 Whirlpool Refrigerator Clamp
15	SCREW
16	WP4332752 Whirlpool Clip
16	WP313808 Whirlpool Screw
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660533 Whirlpool Oven 8" Surface Element
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
23	WP487887 Whirlpool Refrigerator Screw
23	Nut (4)
23	814103 Whirlpool Clip
