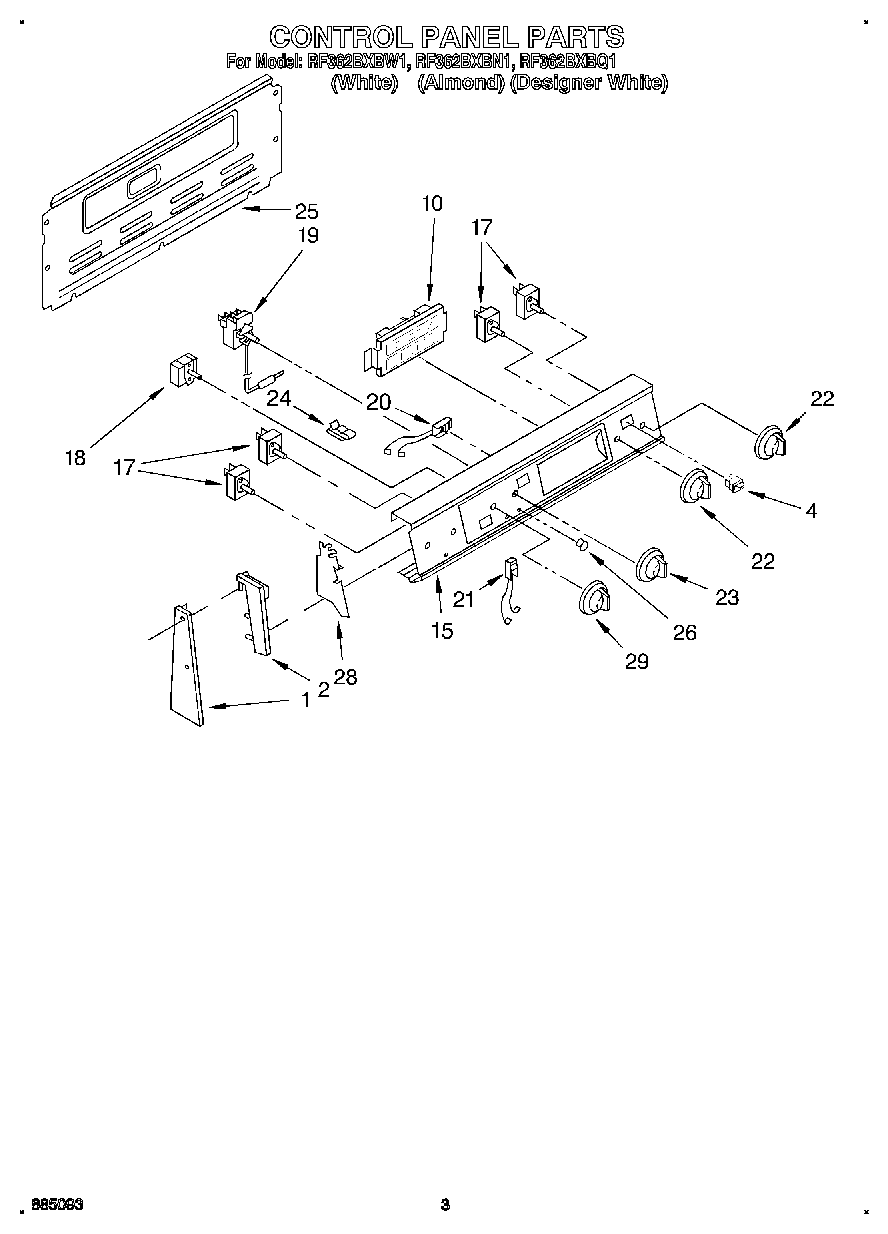

RF362BXBN1 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32x7/16``
1	Screw 10-32x1``
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	Switch, Rocker (White)
4	Switch, Rocker
10	Designer White Mdl
10	Timer, Electronic
15	Panel, Control
15	Washer
15	Designer White Mdl
17	Screw, 8-32 x 3/16 (2)
17	WP3149404 Whirlpool Oven Surface Element Switch
17	SWITCH-INF
18	Switch, Selector
19	WP313808 Whirlpool Screw
19	Thermostat, 0ven Pyro
20	Light, Indicator (250V)
21	Light, Indicator
22	Knob, (4) Infinite Switch (Designer Mdl)
22	Knob, (4) Infinite Switch (White/Almond/Gold)
23	Knob, Temp
23	Designer White Mdl
24	Clip, Tube
25	Rear Cover Contr
25	SCREW
26	Lens, Amber
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
29	Knob (Selector)
29	WPL 3183116
