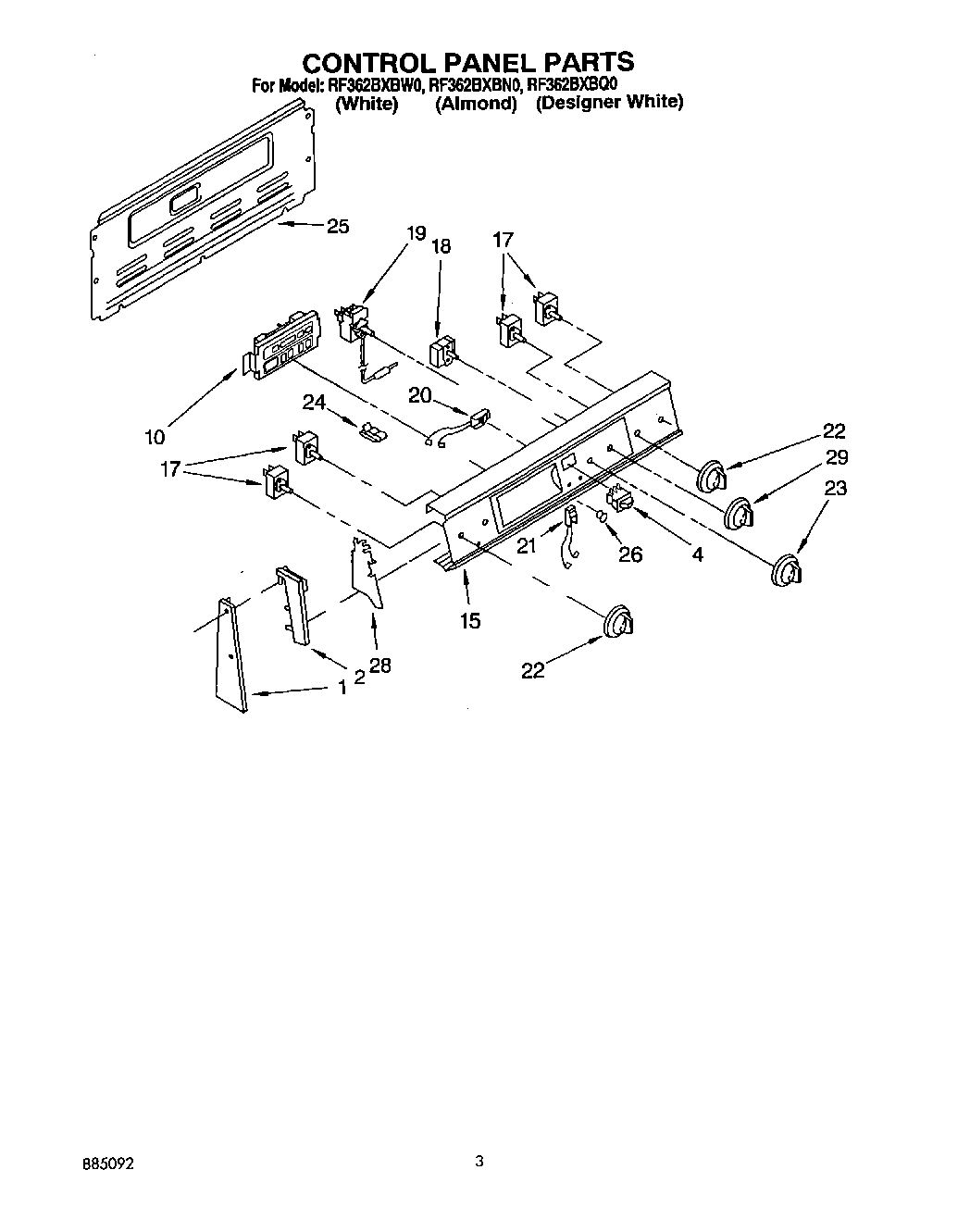

RF362BXBW0 02 – CONTROL PANEL

Products

Position	Product
1	WP3390631 Whirlpool Screw
1	Screw 10-32×7/16“
1	Screw 10-32×1“
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap, R.H. (White/Almond/Gold)
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
4	Switch, Rocker
4	Switch, Rocker (White)
10	Designer White Mdl
10	Timer, Electronic
15	Designer White Mdl
15	Washer
15	Panel, Control
17	Screw, 8-32 x 3/16 (2)
17	SWITCH-INF
17	WP3149404 Whirlpool Oven Surface Element Switch
18	Switch, Selector
19	Thermostat, Oven
19	WP313808 Whirlpool Screw
20	Light, Indicator (250V)
21	Light, Indicator
22	Knob, (4) Infinite Switch (Designer Mdl)
22	Knob, (4) Infinite Switch (White/Almond/Gold)
23	Knob (Temp) (White/Almond)
23	Designer White Mdl
24	Clip, Tube
25	Rear Cover Contr
25	SCREW
26	Lens, Amber
28	WP965173 Whirlpool Dishwasher Screw
28	Shield (2)
29	Knob (Selector)
29	WPL 3183116
