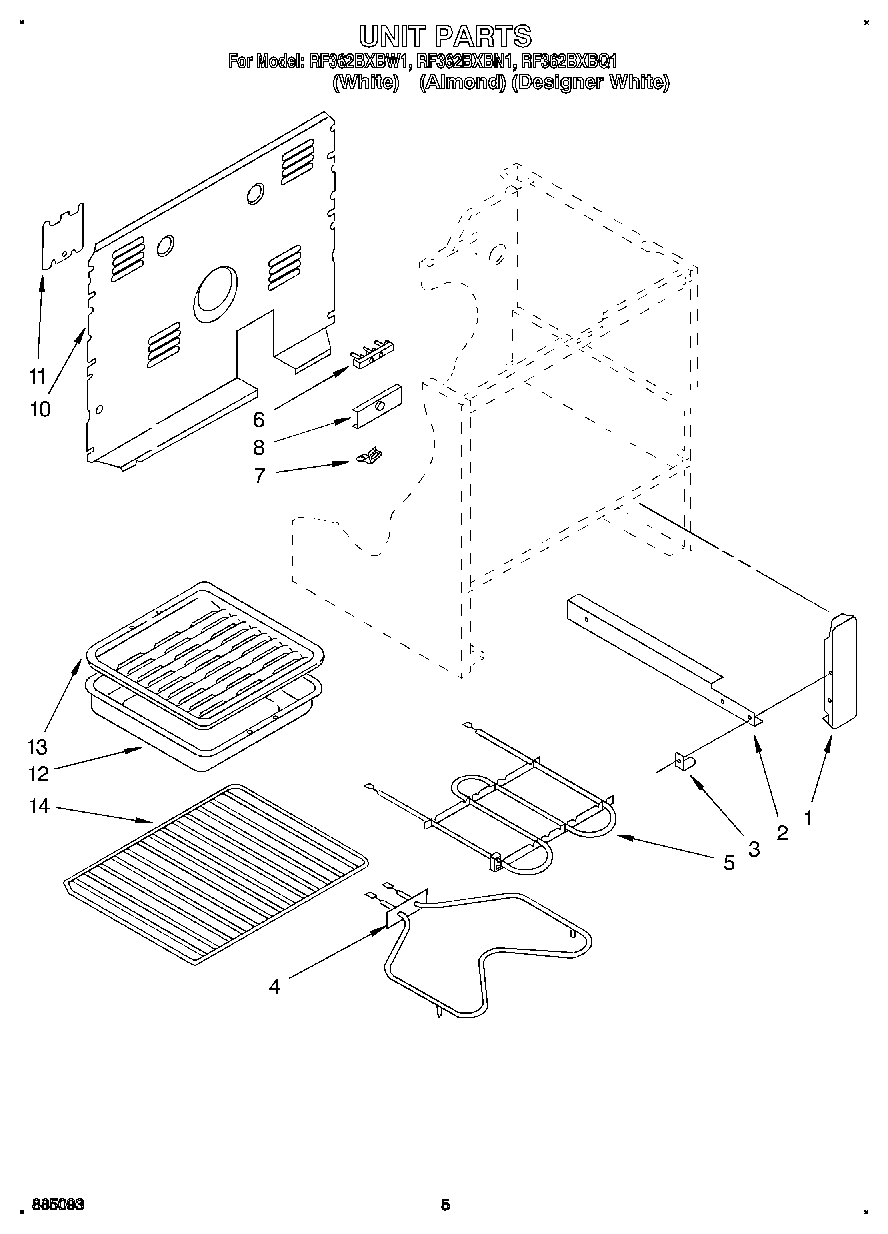

RF362BXBW1 04 – UNIT, OPTIONAL

Products

Position	Product
	WPL LIT677973
	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
1	Bracket, Mounting (2)
2	Rail L.H. (Includes Illus. 3)
2	Rail R.H. (Includes Illus. 3)
3	Screw, 10A x 1/2 (2) (Black)
3	Glide, Front (2)
4	WP312309 Whirlpool Bake Element
4	ELMNT-BAKE
5	Screw (2)
5	WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
5	Unit, Broil (208V)
6	WP8203546 Whirlpool Terminal Block
6	Screw, (2) 10-16 x 1
6	WP112432 Whirlpool Nut Assembly
7	Clip, Ground Wire
7	WPL 308498
8	Bracket, Service
10	Cover, Rear
11	SCREW
11	Cover, Service
13	4396923 Whirlpool Broil Pan Set Gray Porcelain
14	Wire (14 Ga. 150 c Green)
14	WPL 308172
14	350930 Whirlpool White Spray Paint
14	Grease
14	Wire (14 Ga. 150 c Orange)
14	WPL 308173
14	Wire (14 Ga. 150 c Yellow)
14	Wire (12 Ga. 150 c Black)
14	18 Ga. 80~c Rating (Red)
14	8212471 Whirlpool Oven Paint
14	Wire (14 Ga. 200 c Brown)
14	1
14	Leveler (Thinner) (2oz.)
14	Wire (14 Ga. 150 c Brown)
14	Wire (14 Ga. 150 c Blue)
14	Platinum (Uncut)
14	Enamal, Toast (1 Qt. Uncut)
14	Paint, Spray (13 Oz.) (Platinum)
14	Toast
14	Golden Harvest (Uncut)
14	Golden Harvest
14	72113 Whirlpool Touch-Up Paint
14	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
14	Almond (Uncut)
14	WP72107 Whirlpool Touchup
14	799344 Whirlpool Refrigerator Paint
14	72017 Whirlpool Appliance Touch-Up Paint White
14	WPL 72112
14	350942 Whirlpool Spray Paint
14	242831 Whirlpool Oven Wire
14	Wire, 25`` Roll (White 14 GA.)
14	Paint, Spray 13 Oz. (Avocado)
14	paint, spray 13 oz. (coffee)
14	Paint, Touch-Up 1/2 Oz. (Coffee)
14	72109 Whirlpool Dacor Avocado Touch-Up Paint
14	285006 Whirlpool Spray
14	Wire, 25` Roll (Red 14 Ga.)
14	Wire, 25` Roll (Black 14 Ga.)
14	FOIL, ALUMINUM OVEN (18`` X 25 )
14	WPL 799832
14	511873 Whirlpool Refrigerator Paint
14	350956 Whirlpool Spray Assembly
