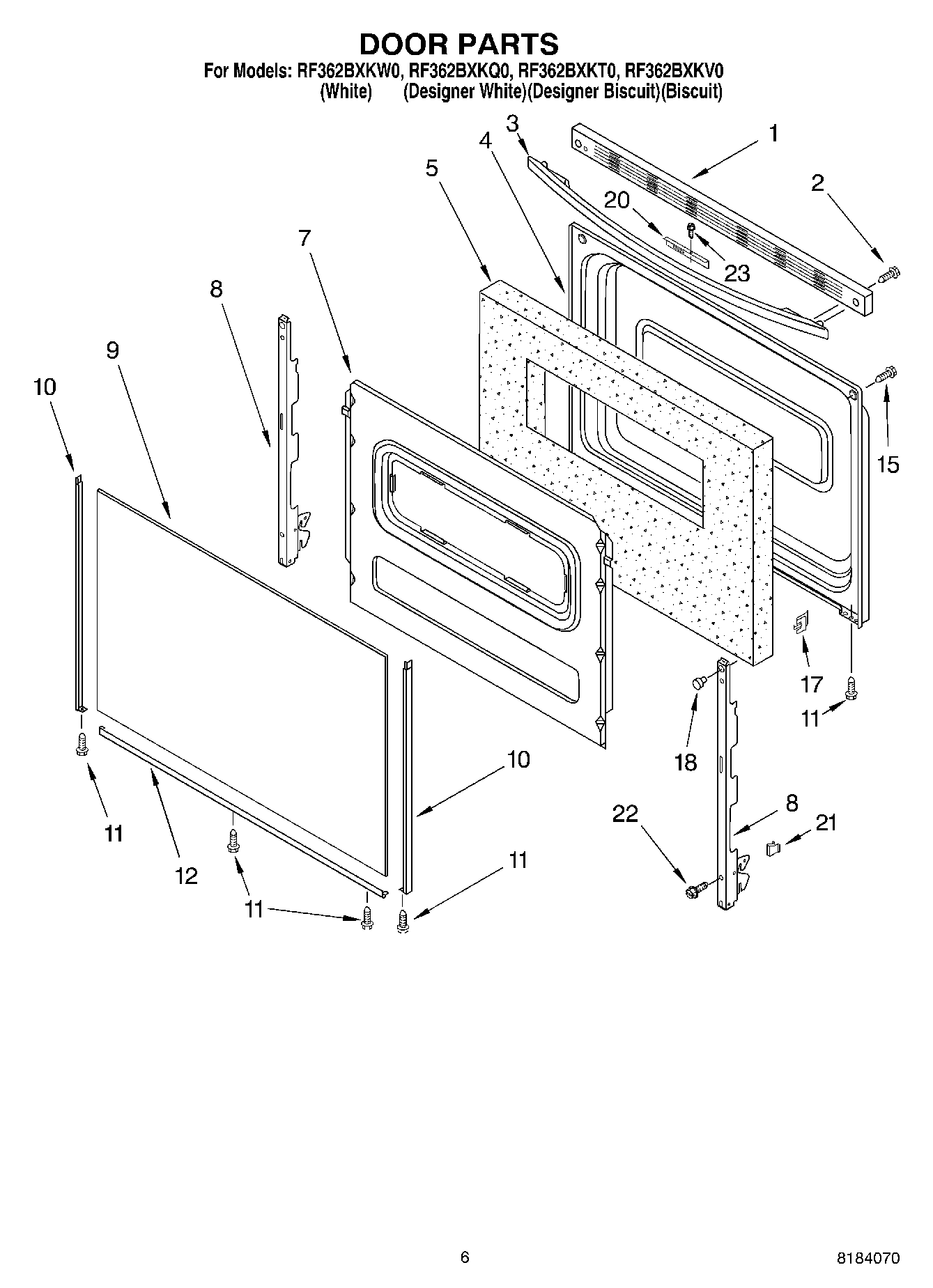

RF362BXKQ0 05 – DOOR, OPTIONAL

Products

Position	Product
1	WPW10016370 Whirlpool Door Trim
1	Trim, Top (Biscuit)
1	Trim, Top (Black)
2	WP3196164 Whirlpool Screw
3	Handle, Door (Biscuit)
3	WPW10202217 Whirlpool Door Handle
3	WPW10202216 Whirlpool Door Handle
4	Liner, Door
5	WPW10278991 Whirlpool Insulation
7	W11699790 Whirlpool Retainer
8	Hinge, Door (2)
9	Glass, Door (Black)
9	Glass, Door (Biscuit)
9	Glass, Door (White)
11	W10491985 Whirlpool Screw
12	8184859 Whirlpool Range Oven Door Trim Kit (2 Sides, 1 Bottom)
12	8184858 Whirlpool Door Trim
12	8184860 Whirlpool Oven Door Trim
15	WP179051 Whirlpool Screw
17	Clip, Glass (4)
18	238614 Whirlpool Bumper Hinge
20	Bracket, Latch
21	WP3196925 Whirlpool Clip Assembly
22	WP3196175 Whirlpool Screw
23	WP3400832 Whirlpool Screw
23	8212471 Whirlpool Oven Paint
23	3184020 Whirlpool Oven Wire
23	3196696 Whirlpool Clip
23	Grease
23	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
23	WP3196154 Whirlpool Screw Assembly
23	WPL 8273322
23	WPL 8273266
23	4392899 Whirlpool Biscuit Touch-Up Paint
23	WPL 8273335
23	W11396691 Whirlpool Element Receptacle and Wire Kit
23	1
23	Wire (14 Ga. 200 c Brown)
23	Wire, 25` Roll (Black 14 Ga.)
23	350930 Whirlpool White Spray Paint
23	FOIL, ALUMINUM OVEN (18“ X 25 )
23	WPW10208653 Whirlpool Insulation
23	WPL 799832
23	PAINT, BULK (1 QT.) (BISCUIT (UNCUT))
23	511873 Whirlpool Refrigerator Paint
23	4392901 Whirlpool Biscuit Spray Paint
23	350942 Whirlpool Spray Paint
23	Almond (Uncut)
23	WP72107 Whirlpool Touchup
23	799344 Whirlpool Refrigerator Paint
23	72017 Whirlpool Appliance Touch-Up Paint White
23	Wire, 25` Roll (Red 14 Ga.)
23	Wire, 25“ Roll (White 14 GA.)
23	18 Ga. 80~c Rating (Red)
23	Wire (12 Ga. 150 c Black)
23	Wire (14 Ga. 150 c Yellow)
23	Wire (14 Ga. 150 c Orange)
23	Wire (14 Ga. 150 c Green)
23	Wire (14 Ga. 150 c Brown)
23	Wire (14 Ga. 150 c Blue)
23	242831 Whirlpool Oven Wire
23	Clip, Ground Wire
23	3400964 Whirlpool Oven Clip
23	814381 Whirlpool Pin
23	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
23	285006 Whirlpool Spray
23	350956 Whirlpool Spray Assembly
