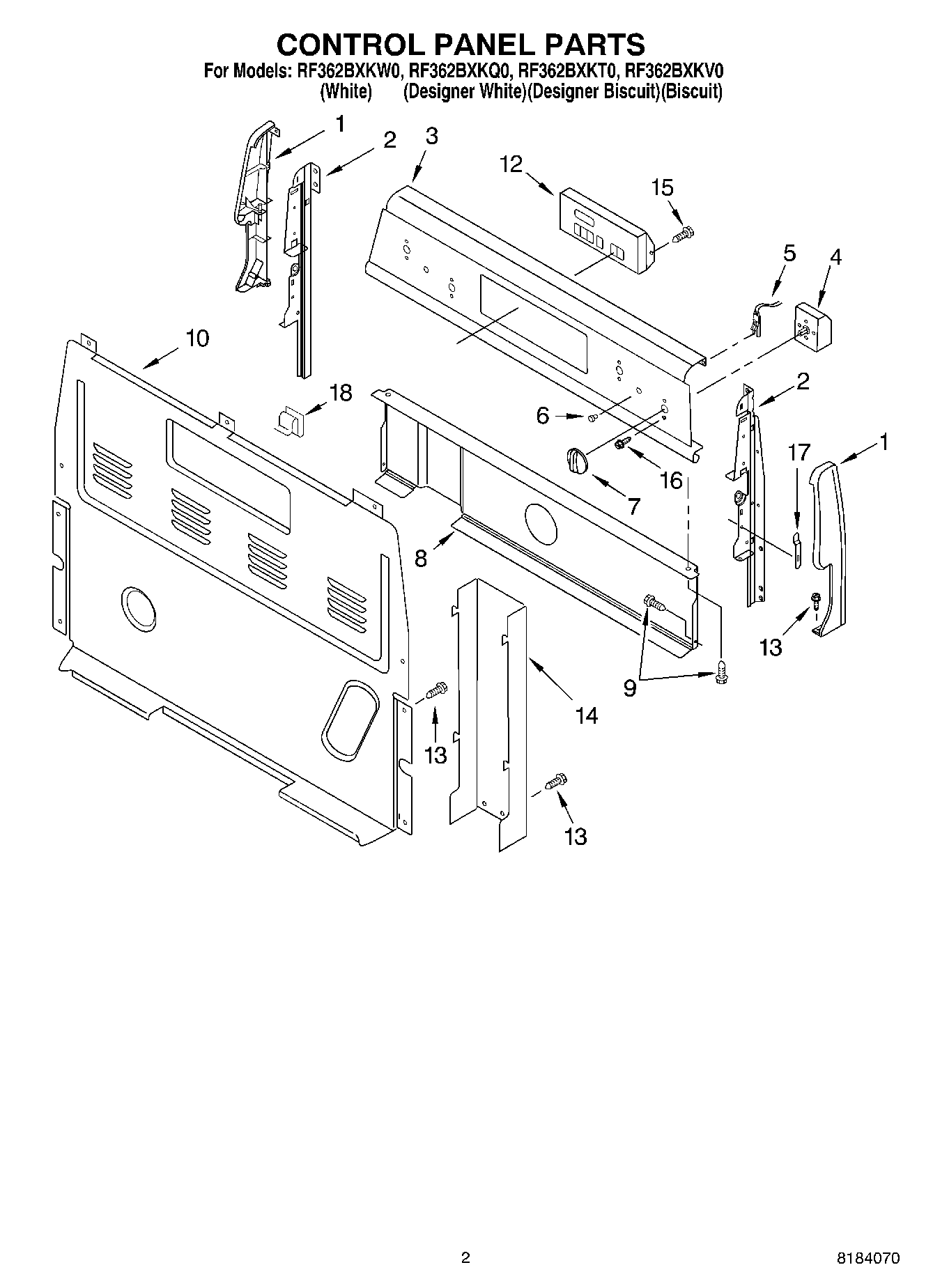

RF362BXKT0 02 – CONTROL PANEL

RF362BXKT0 02 – CONTROL PANEL

Written by

in

RF362BXKT0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap, Right Hand (Black)
1Endcap (Black Left Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4WP3149400 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522566 Whirlpool Knob
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (Biscuit)
12WP6610457 Whirlpool Electronic Control Board + Core
12WP6610456-includeCORE Whirlpool WP6610456 Washer Electronic Control Board + Core
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP3196557 Whirlpool Screw
16WP3400882 Whirlpool Screw
173196200 Whirlpool Clip
18WP8273564 Whirlpool Clip
