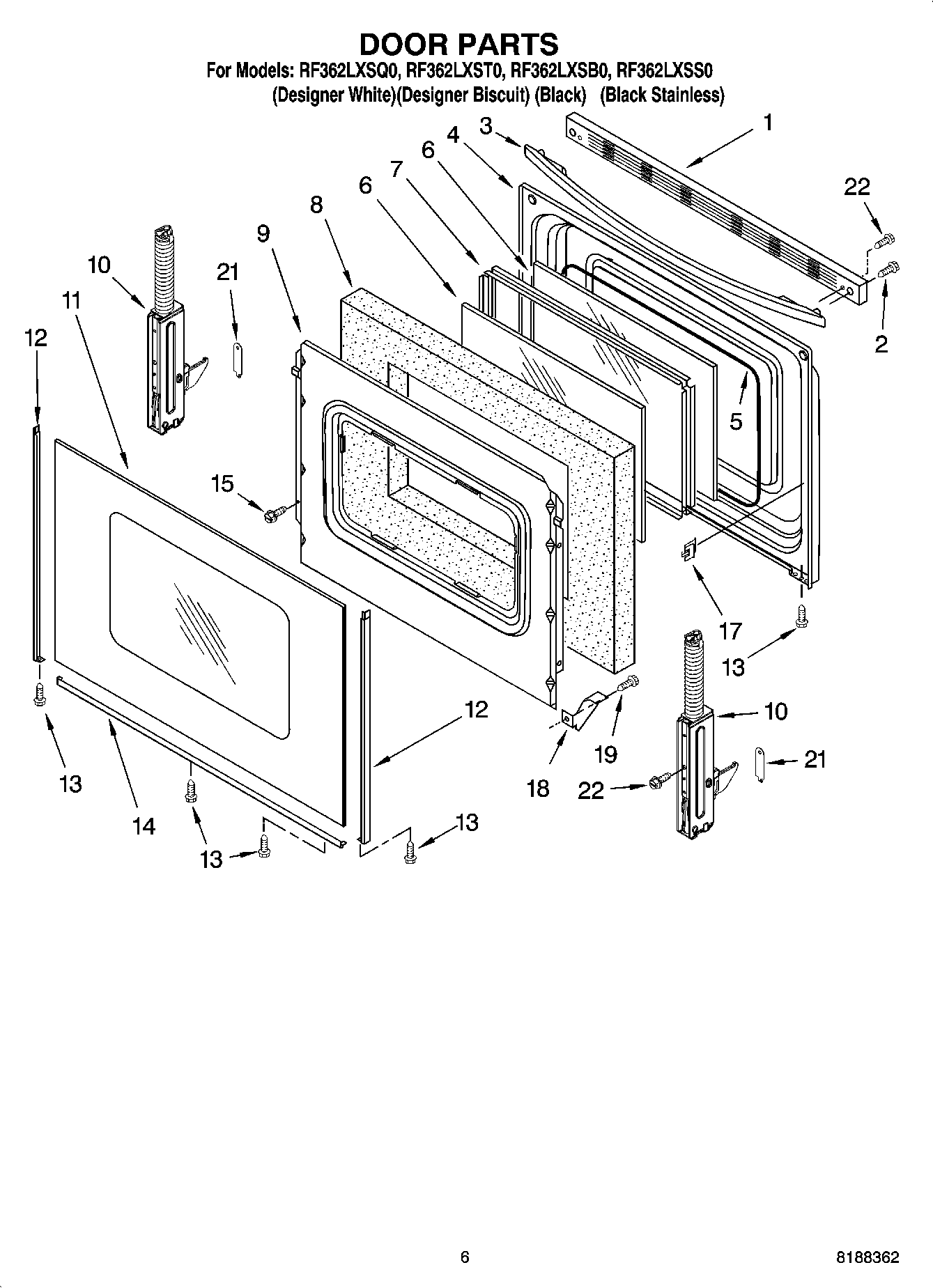

RF362LXSQ0 05 – DOOR PARTS, OPTIONAL PARTS
Written by
in
RF362LXSQ0 05 – DOOR PARTS, OPTIONAL PARTS
Products
Position
Product
WPL ARI160687A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
WPL 9762961
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Wire (12 Ga. 150 c Black)
3184020 Whirlpool Oven Wire
Grease
WP3196154 Whirlpool Screw Assembly
WPL ARI160686A
WPL ARI160685A
WPL ARI160684A
WPL ARI160683A
WPL ARI160682A
WPL ARI160681A
WPL 9762951
WPL 9762960
WPL 9762428
WPL ARI160688A
WPL 8524132
Clip, Ground Wire
350930 Whirlpool White Spray Paint
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
814381 Whirlpool Pin
FOIL, ALUMINUM OVEN (18“ X 25 )
WPL 799832
511873 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
350956 Whirlpool Spray Assembly
350942 Whirlpool Spray Paint
Almond (Uncut)
WPW10208653 Whirlpool Insulation
72017 Whirlpool Appliance Touch-Up Paint White
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
1
Trim, Top (White)
1
WP9762391 Whirlpool Door Trim Assembly
1
Trim, Top (Biscuit)
2
WP3196164 Whirlpool Screw
3
Handle, Door (Biscuit)
3
Handle, Door (White)
3
Handle, Door (Black)
4
WP9761344 Whirlpool Door Liner
5
Seal, Window
6
WP8053948 Whirlpool Door Glass
7
WPW10316950 Whirlpool Window Frame
8
WPW10278991 Whirlpool Insulation
9
W11539580 Whirlpool Retainer
10
W10347466 Whirlpool Door Hinge
11
WPW10330077 Whirlpool Door Glass
11
WPW10118455 Whirlpool Door Glass Assembly
11
WPW10118454 Whirlpool Door Outer Glass White
12
W10761018 Whirlpool Dishwasher Left Door Trim
12
WP8523166 Whirlpool Door Trim
12
WP8523173 Whirlpool Door Trim
12
WP8523172 Whirlpool Left Door Trim
12
WP8523167 Whirlpool Door Trim Assembly
12
W10761014 Whirlpool Right Door Trim
13
W10491985 Whirlpool Screw
14
WP8523180 Whirlpool Door Trim Assembly
14
WP8523178 Whirlpool Door Trim
14
WP8523177 Whirlpool Door Trim Assembly
14
WP8523175 Whirlpool Door Trim Assembly
15
WPW10031790 Whirlpool Screw
17
Clip, Glass (4)
18
WP3196794 Whirlpool Glass Bracket
19
WP3196175 Whirlpool Screw
21
9761517 Whirlpool Oven Clip Assembly
22
W10777162 Whirlpool Screw
←
