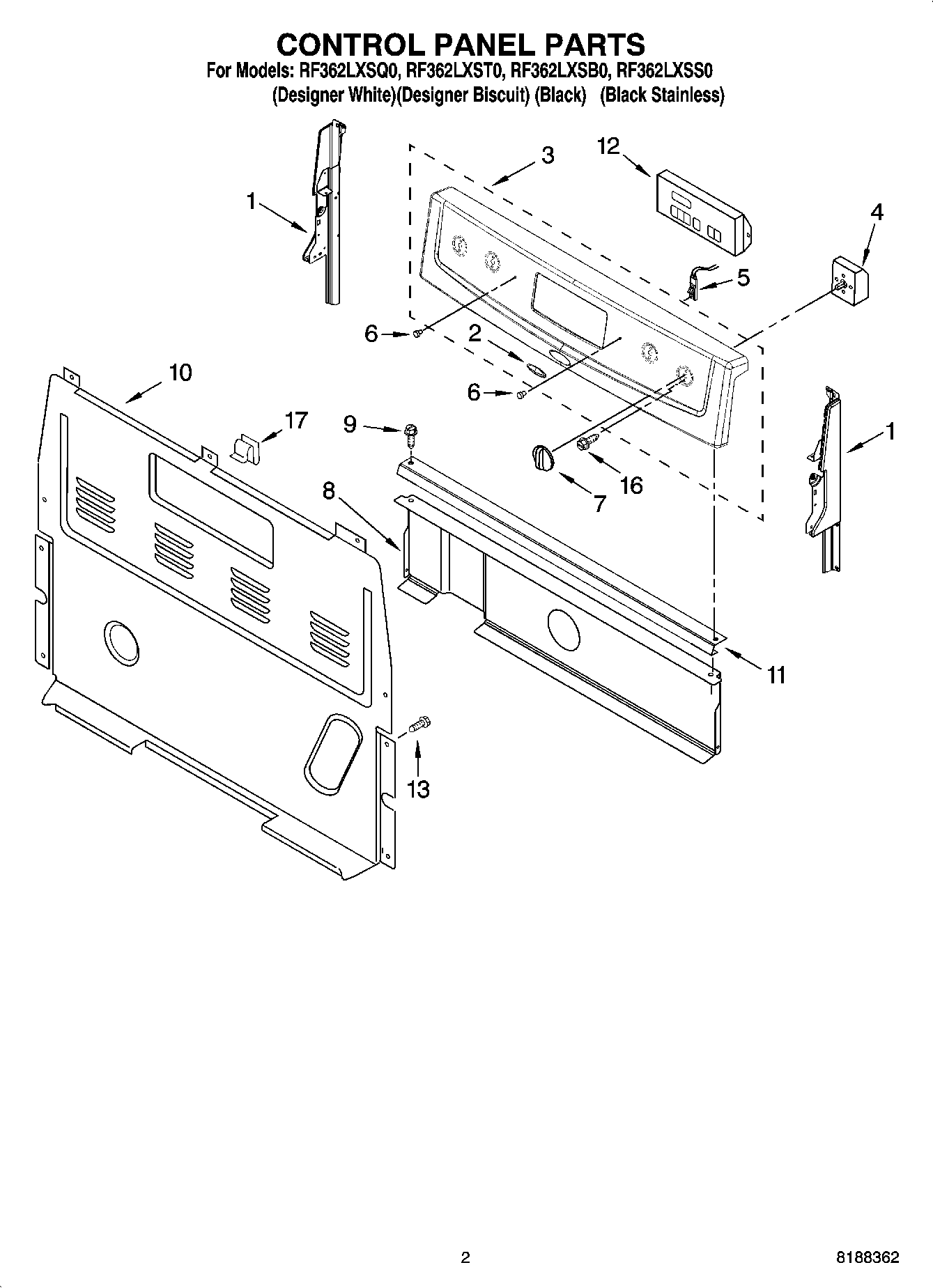

RF362LXST0 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
1	Endcap (Biscuit Left Hand)
2	Nameplate
3	Panel, Control (Biscuit)
3	Panel, Control (White)
3	Panel, Control (Black)
3	Panel, Control (Stainless)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP3149400 Whirlpool Oven Infinite Switch
4	WP9758060 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761962 Whirlpool Range Stove Burner Control Knob
7	WP9761964 Whirlpool Knob
7	WP9761963 Whirlpool Knob Assembly
8	Shield, Heat
9	3196166 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	Bracket, Console
12	Control, Range (Black)
12	Control, Range (White)
12	Control, Range (Biscuit)
13	SCREW
16	WP3400882 Whirlpool Screw
17	WP8273564 Whirlpool Clip
