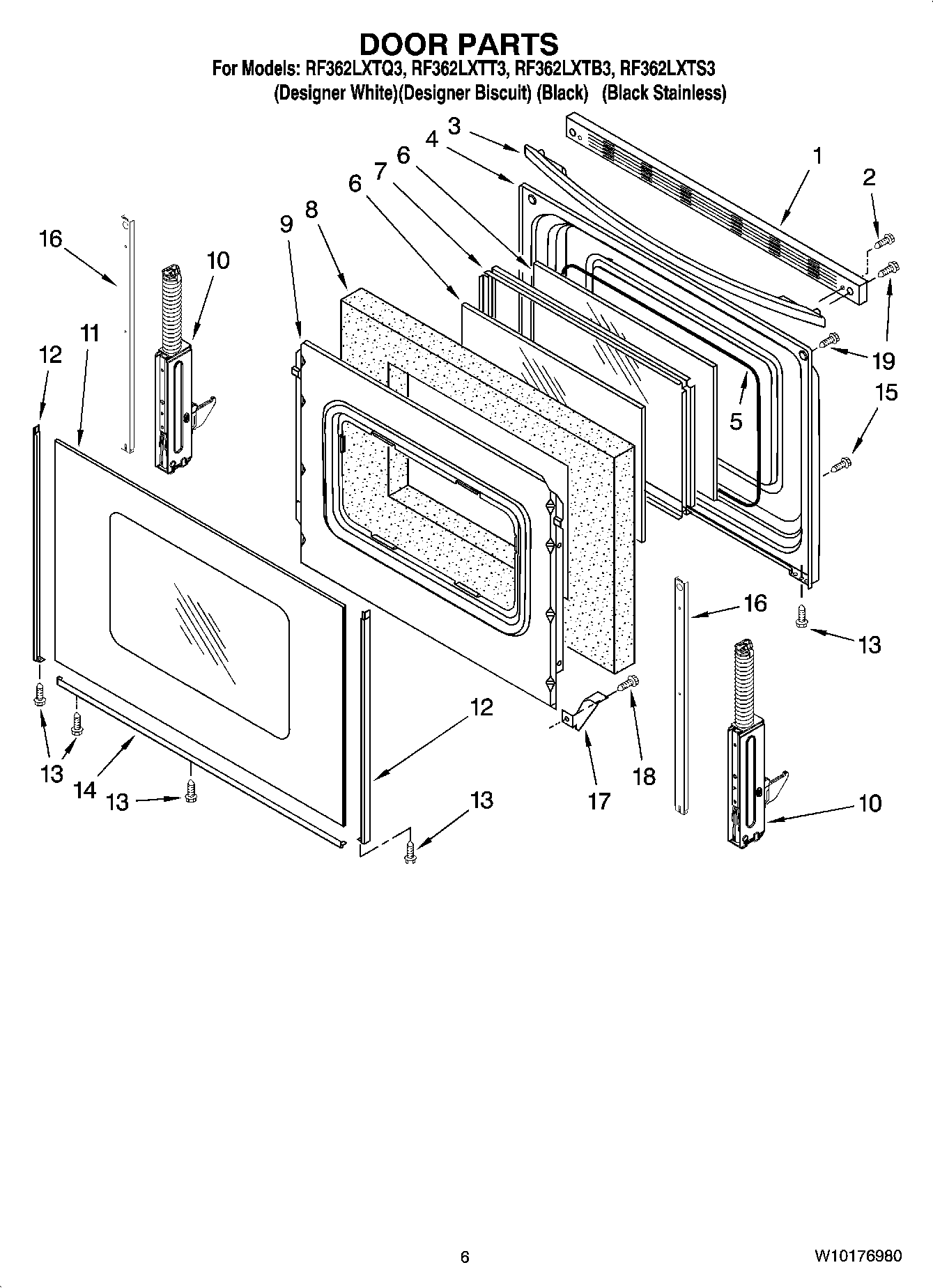

RF362LXTB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF362LXTB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF362LXTB3 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160772A
8212471 Whirlpool Oven Paint
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
WPL ARI160766A
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
3184020 Whirlpool Oven Wire
Grease
WPL ARI160771A
WPL ARI160770A
WPL W10111796
WPL ARI160769A
WPL W10111791
WPL ARI160768A
WPL W10111767
WPL ARI160767A
W11172524 Whirlpool Wire Harness
WPW10144763 Whirlpool Tie Wire
WP3196154 Whirlpool Screw Assembly
Clip, Ground Wire
Wire, 25` Roll (Red 14 Ga.)
285006 Whirlpool Spray
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
WPL 799832
WPW10208653 Whirlpool Insulation
350930 Whirlpool White Spray Paint
W11447673 Whirlpool Range Tip Anchor
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
WP72107 Whirlpool Touchup
350956 Whirlpool Spray Assembly
FOIL, ALUMINUM OVEN (18“ X 25 )
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Almond (Uncut)
1Trim, Top (Biscuit)
1Trim, Top (White)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Biscuit)
3Handle, Door (Black)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
10W10347466 Whirlpool Door Hinge
11WPW10330077 Whirlpool Door Glass
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer Door (Biscuit)
12WP8523173 Whirlpool Door Trim
12W10761014 Whirlpool Right Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12WP8523166 Whirlpool Door Trim
12W10761018 Whirlpool Dishwasher Left Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W11502236 Whirlpool Door Trim
17WP3196794 Whirlpool Glass Bracket
18WP3196175 Whirlpool Screw
19W10777162 Whirlpool Screw
