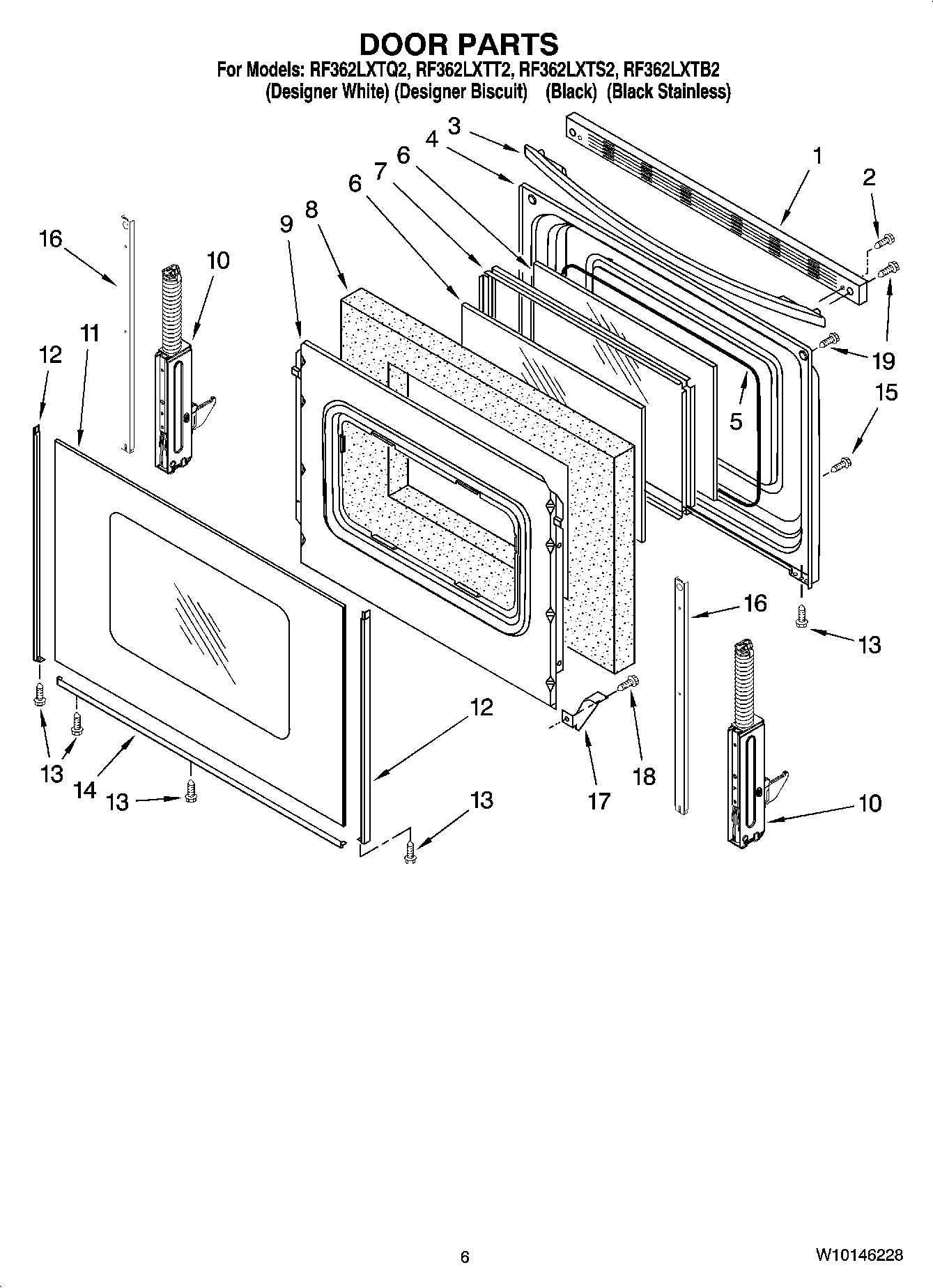

RF362LXTQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

RF362LXTQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Written by

in

RF362LXTQ2 05 – DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)

Products

PositionProduct
WPL ARI160797A
W11244557 Whirlpool Screw
Wire (14 Ga. 200 c Brown)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
Grease
8212471 Whirlpool Oven Paint
3184020 Whirlpool Oven Wire
WP3196154 Whirlpool Screw Assembly
WPL ARI160796A
WPL ARI160795A
WPL ARI160794A
WPL ARI160793A
WPL ARI160792A
WPL W10111796
WPL W10111791
WPL W10111767
W11172524 Whirlpool Wire Harness
WPL ARI160798A
Clip, Ground Wire
350930 Whirlpool White Spray Paint
285006 Whirlpool Spray
Wire, 25` Roll (Red 14 Ga.)
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
FOIL, ALUMINUM OVEN (18“ X 25 )
511873 Whirlpool Refrigerator Paint
W11447673 Whirlpool Range Tip Anchor
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
WPW10208653 Whirlpool Insulation
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
WPL 799832
1Trim, Top (White)
1Trim, Top (Biscuit)
1WP9762391 Whirlpool Door Trim Assembly
2WP3196164 Whirlpool Screw
3Handle, Door (White)
3Handle, Door (Black)
3Handle, Door (Biscuit)
4WP9761344 Whirlpool Door Liner
5Seal, Window
6WP8053948 Whirlpool Door Glass
7WPW10316950 Whirlpool Window Frame
8WPW10278991 Whirlpool Insulation
9W11539580 Whirlpool Retainer
10W10347464 Whirlpool Door Hinge
10W10347466 Whirlpool Door Hinge
11Glass, Outer Door (Biscuit)
11WPW10118455 Whirlpool Door Glass Assembly
11WPW10118454 Whirlpool Door Outer Glass White
11Glass, Outer (Stainless Steel)
12W10761018 Whirlpool Dishwasher Left Door Trim
12WP8523166 Whirlpool Door Trim
12WP8523173 Whirlpool Door Trim
12WP8523172 Whirlpool Left Door Trim
12WP8523167 Whirlpool Door Trim Assembly
12W10761014 Whirlpool Right Door Trim
13W10491985 Whirlpool Screw
14WP8523180 Whirlpool Door Trim Assembly
14WP8523178 Whirlpool Door Trim
14WP8523175 Whirlpool Door Trim Assembly
14WP8523177 Whirlpool Door Trim Assembly
15WPW10031790 Whirlpool Screw
16W11502236 Whirlpool Door Trim
17WP3196794 Whirlpool Glass Bracket
18WP3196175 Whirlpool Screw
19W10777162 Whirlpool Screw
