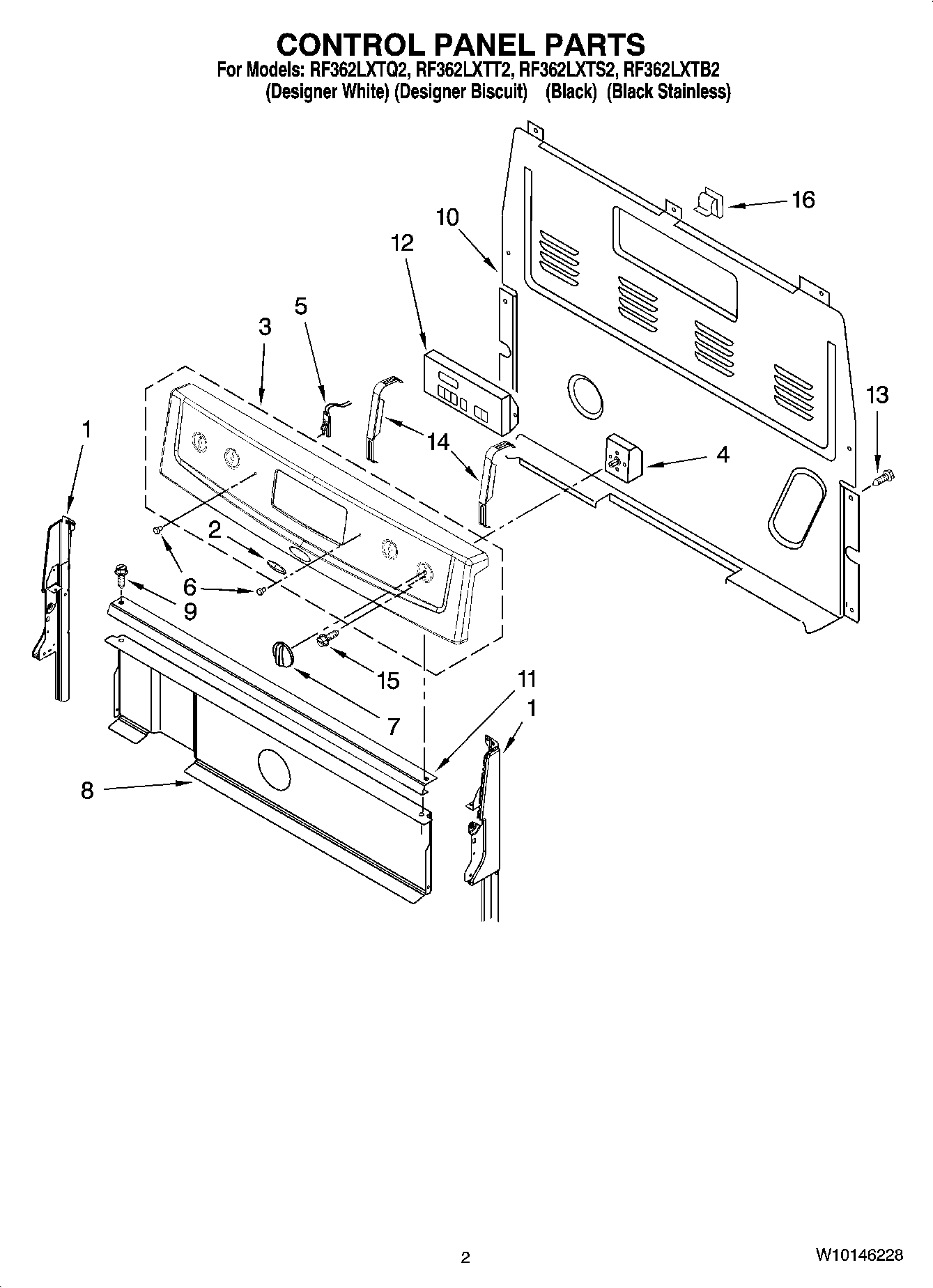

RF362LXTS2 02 – CONTROL PANEL PARTS

Products

Position	Product
1	W11230612 Whirlpool Panel End Cap
1	Endcap (Biscuit Left Hand)
1	W11219370 Whirlpool Endcap Panel
1	W11219365 Whirlpool Panel Endcap
1	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	Nameplate
3	Panel, Control (White)
3	Panel, Control (Biscuit)
3	Panel, Control (Black)
3	Panel, Control (Stainless)
4	WP3149404 Whirlpool Oven Surface Element Switch
4	WP9758060 Whirlpool Oven Infinite Switch
5	WP8523265 Whirlpool Indicator Light
6	WP3196068 Whirlpool Light Lens
7	WP9761963 Whirlpool Knob Assembly
7	WP9761964 Whirlpool Knob
7	WP9761962 Whirlpool Range Stove Burner Control Knob
8	W10134247 Whirlpool Heat Shield
9	3196166 Whirlpool Screw
9	WPL 8281194
9	WP3400832 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	Bracket, Console
12	W10840298 Whirlpool Control Assembly
13	SCREW
14	BRACKET, MOUNTING EOC
15	WP3400882 Whirlpool Screw
16	WP8273564 Whirlpool Clip
