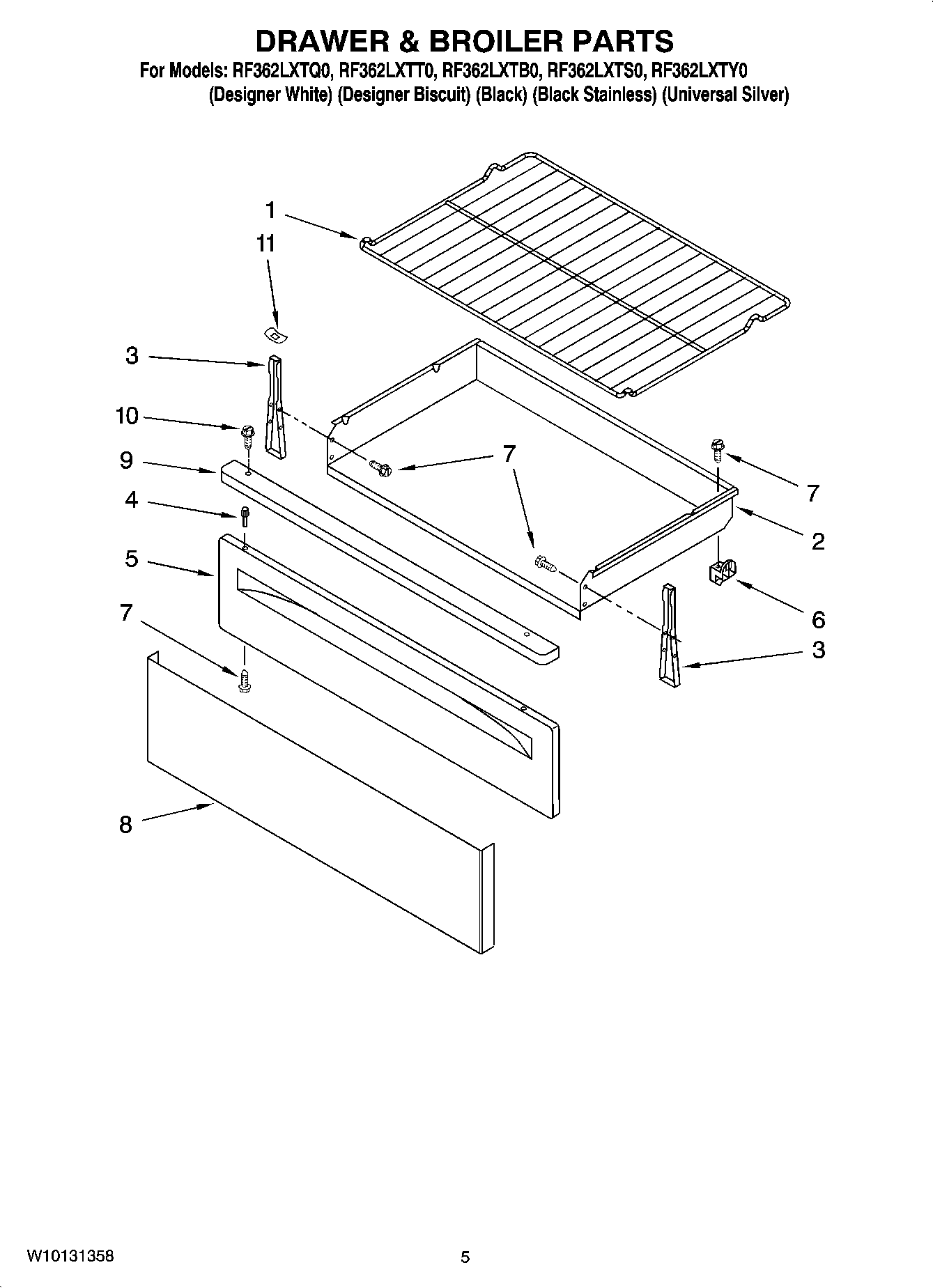

RF362LXTT0 04 – DRAWER & BROILER PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI160849A
	Grease
	3184020 Whirlpool Oven Wire
	8212471 Whirlpool Oven Paint
	W11244557 Whirlpool Screw
	Wire (14 Ga. 200 c Brown)
	Wire (12 Ga. 150 c Black)
	Wire (14 Ga. 150 c Yellow)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Brown)
	WP3196154 Whirlpool Screw Assembly
	WPL 8524132
	WPL ARI160850A
	WPL ARI160848A
	WPL ARI160847A
	WPL ARI160846A
	WPL ARI160845A
	WPL ARI160844A
	WPL ARI160843A
	WPL W10115055
	WPL W10121263
	WPL W10115056
	WPL 9762428
	Wire (14 Ga. 150 c Blue)
	242831 Whirlpool Oven Wire
	799344 Whirlpool Refrigerator Paint
	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
	285006 Whirlpool Spray
	WP72107 Whirlpool Touchup
	Almond (Uncut)
	350942 Whirlpool Spray Paint
	Wire, 25` Roll (Red 14 Ga.)
	511873 Whirlpool Refrigerator Paint
	WPL 799832
	FOIL, ALUMINUM OVEN (18“ X 25 )
	814381 Whirlpool Pin
	W11447673 Whirlpool Range Tip Anchor
	350930 Whirlpool White Spray Paint
	Clip, Ground Wire
	WPW10208653 Whirlpool Insulation
	350956 Whirlpool Spray Assembly
	72017 Whirlpool Appliance Touch-Up Paint White
1	WPW10256908 Whirlpool Oven Range Rack
2	Drawer, Storage
3	W10838990 Whirlpool Mounting Bracket
4	3196815 Whirlpool Oven Rivet
4	WP3196814 Whirlpool Rivet
4	WP3196813 Whirlpool Rivet
5	W11230476 Whirlpool Drawer Panel
5	W11230488 Whirlpool Drawer Panel
5	W11219377 Whirlpool Drawer Panel
6	WP8053334 Whirlpool Drawer Glide
7	WP3400832 Whirlpool Screw
8	Panel, Stainless
9	Handle (Black)
9	Handle, Drawer
10	WPW10031790 Whirlpool Screw
11	WP9781235 Whirlpool Clip
