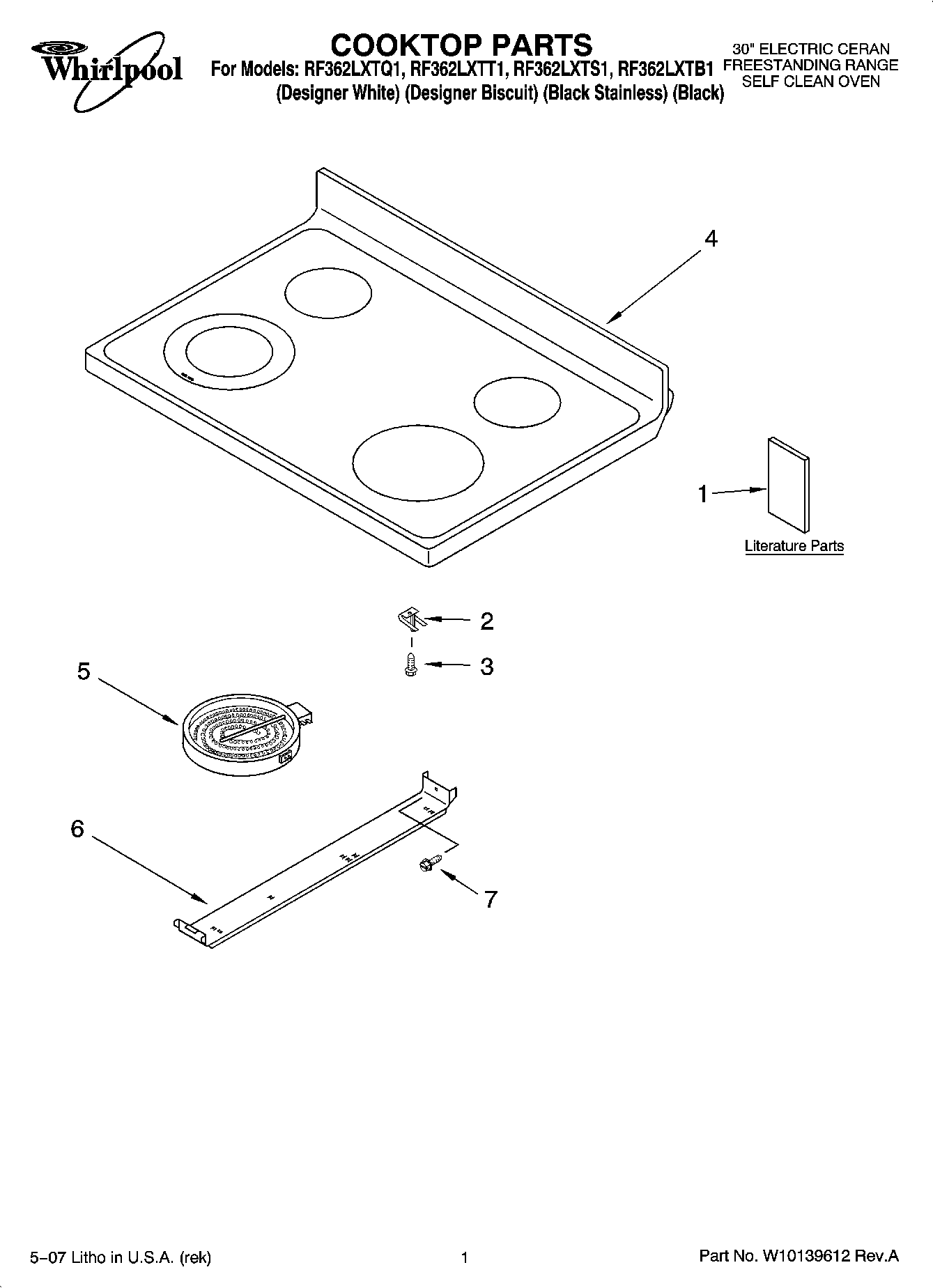

RF362LXTT1 01 – COOKTOP PARTS

RF362LXTT1 01 – COOKTOP PARTS

Written by

in

RF362LXTT1 01 – COOKTOP PARTS

Products

PositionProduct
1SAFER COOKING TIPS (ENGLISH
1Owners Manual
1Installation Instructions Template, Anti-Tip
1Tech Sheet
1Anti-Tip Template (English/Spanish)
1Anti-Tip Template (English/French)
2Spring, Locator
3WP3196170 Whirlpool Screw
4Cooktop (White)
4Cooktop (Black)
4Cooktop (Biscuit)
5ELMNT-SURF
5WP8523047 Whirlpool Surface Element Assembly
6Bracket, Element ((2))
7WP3196557 Whirlpool Screw
