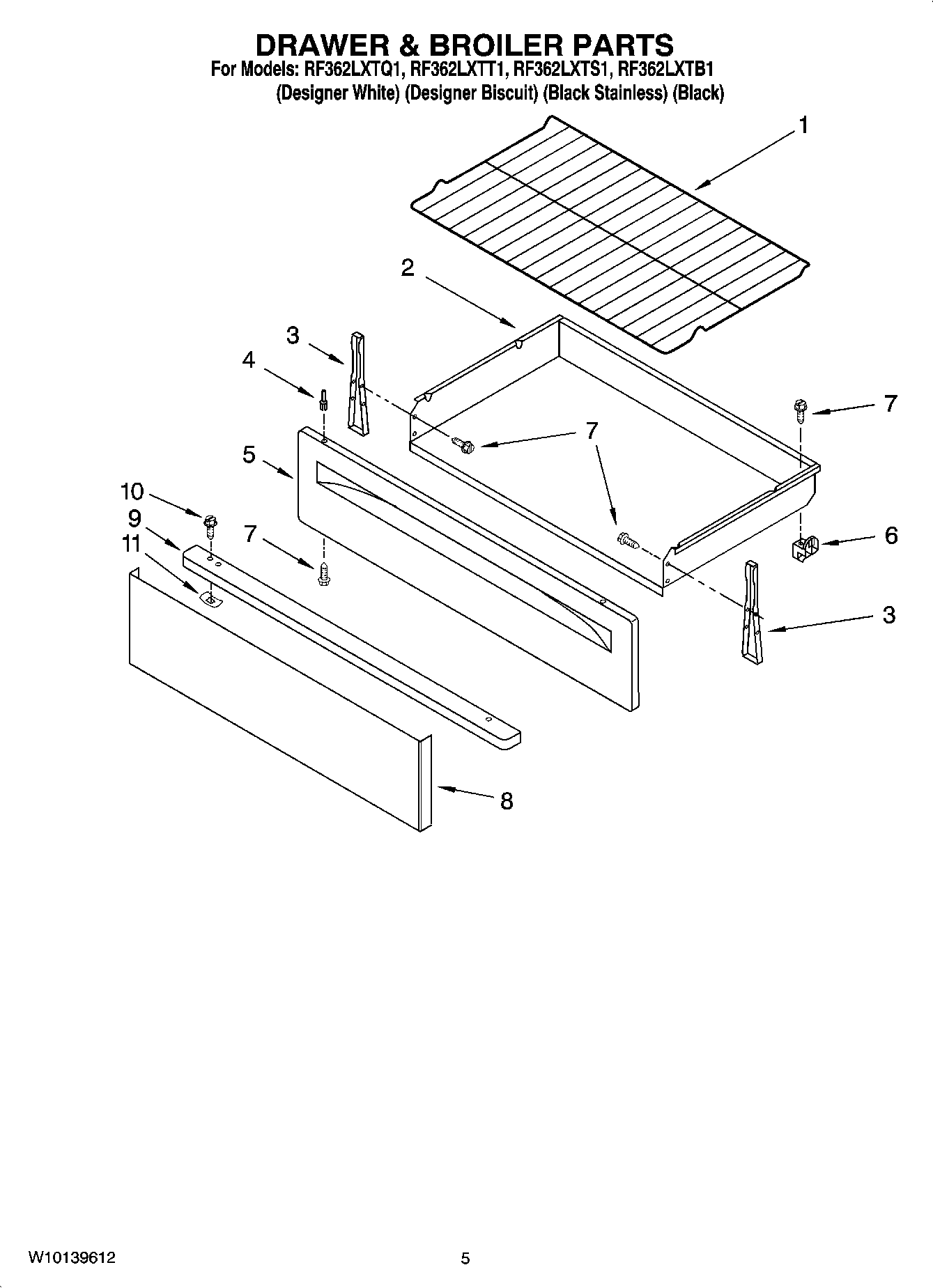

RF362LXTT1 04 – DRAWER & BROILER PARTS

RF362LXTT1 04 – DRAWER & BROILER PARTS

Written by

in

RF362LXTT1 04 – DRAWER & BROILER PARTS

Products

PositionProduct
1WPW10256908 Whirlpool Oven Range Rack
2Drawer, Storage
3W10838990 Whirlpool Mounting Bracket
43196815 Whirlpool Oven Rivet
4WP3196813 Whirlpool Rivet
4WP3196814 Whirlpool Rivet
5W11230488 Whirlpool Drawer Panel
5W11230476 Whirlpool Drawer Panel
5W11219377 Whirlpool Drawer Panel
6WP8053334 Whirlpool Drawer Glide
7WP3400832 Whirlpool Screw
8Panel, Stainless
9Handle (Black)
10WPW10031790 Whirlpool Screw
11WP9781235 Whirlpool Clip
