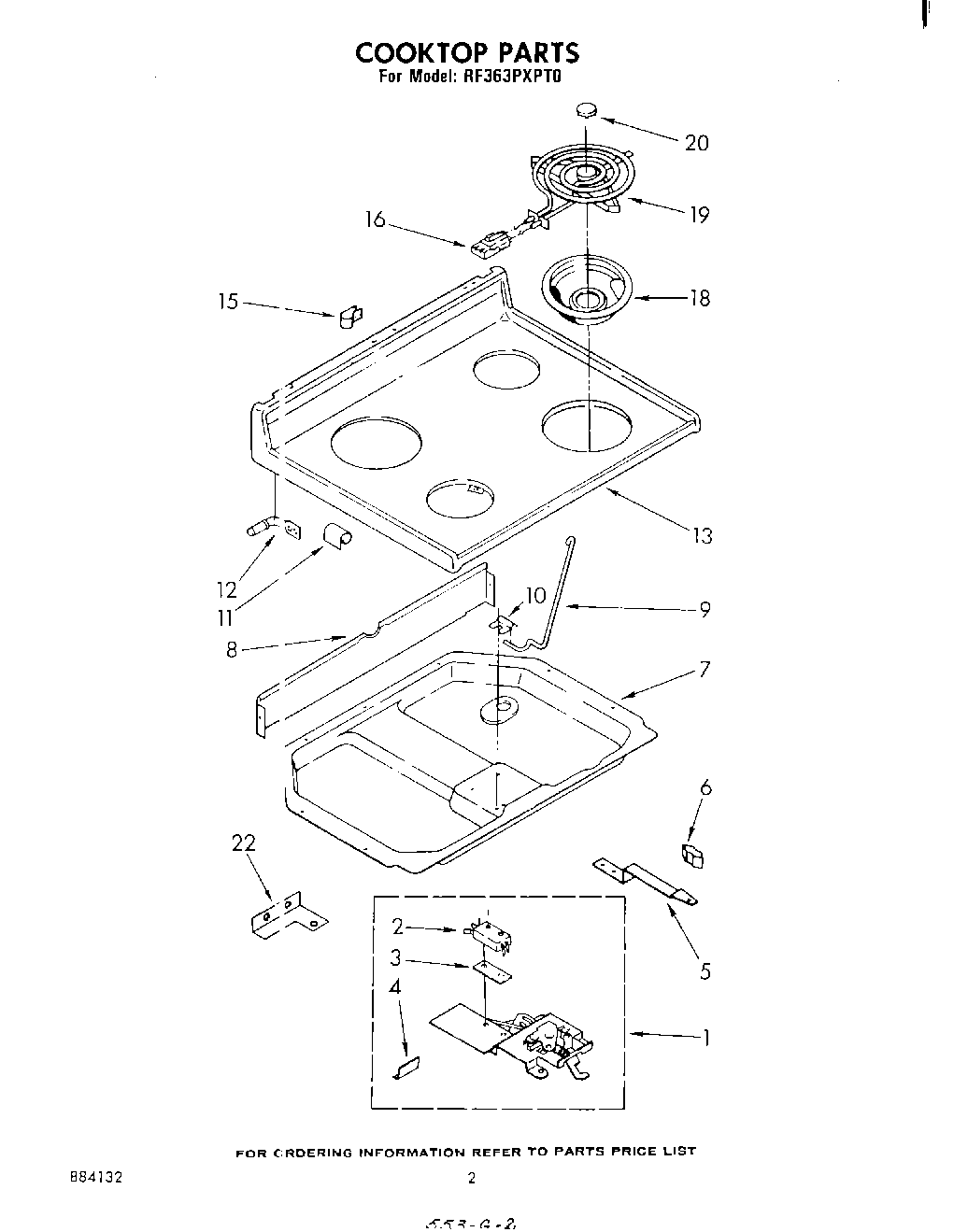

RF363PXPT0 02 – COOKTOP

Products

Position	Product
	WP660533 Whirlpool Oven 8" Surface Element
1	Latch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw (3)
5	WP488627 Whirlpool Refrigerator Screw
5	Screw
5	Handle, Latch
6	Knob, Latch
7	Burner Box
8	Shield, Wiring
9	Rod, Cooktop
10	Retainer, Cooktop
10	WP3390631 Whirlpool Screw
11	Bracket, Cooktop (2)
12	Pin, Cooktop (2)
13	Cooktop (Chrome)
15	SCREW
15	WP308605 Whirlpool Refrigerator Clamp
16	BURNER RECEPTACLE KIT
16	WP313808 Whirlpool Screw
18	DRIP BOWL 8" W/HOLE CHROME
18	WPW10196406 Whirlpool 6" Chrome Drip Bowl
19	WP660532 Whirlpool Oven Surface Element
20	Medallion (4)
22	WPL 312320
22	Screw, 10A x 1/2 (2) (Black)
