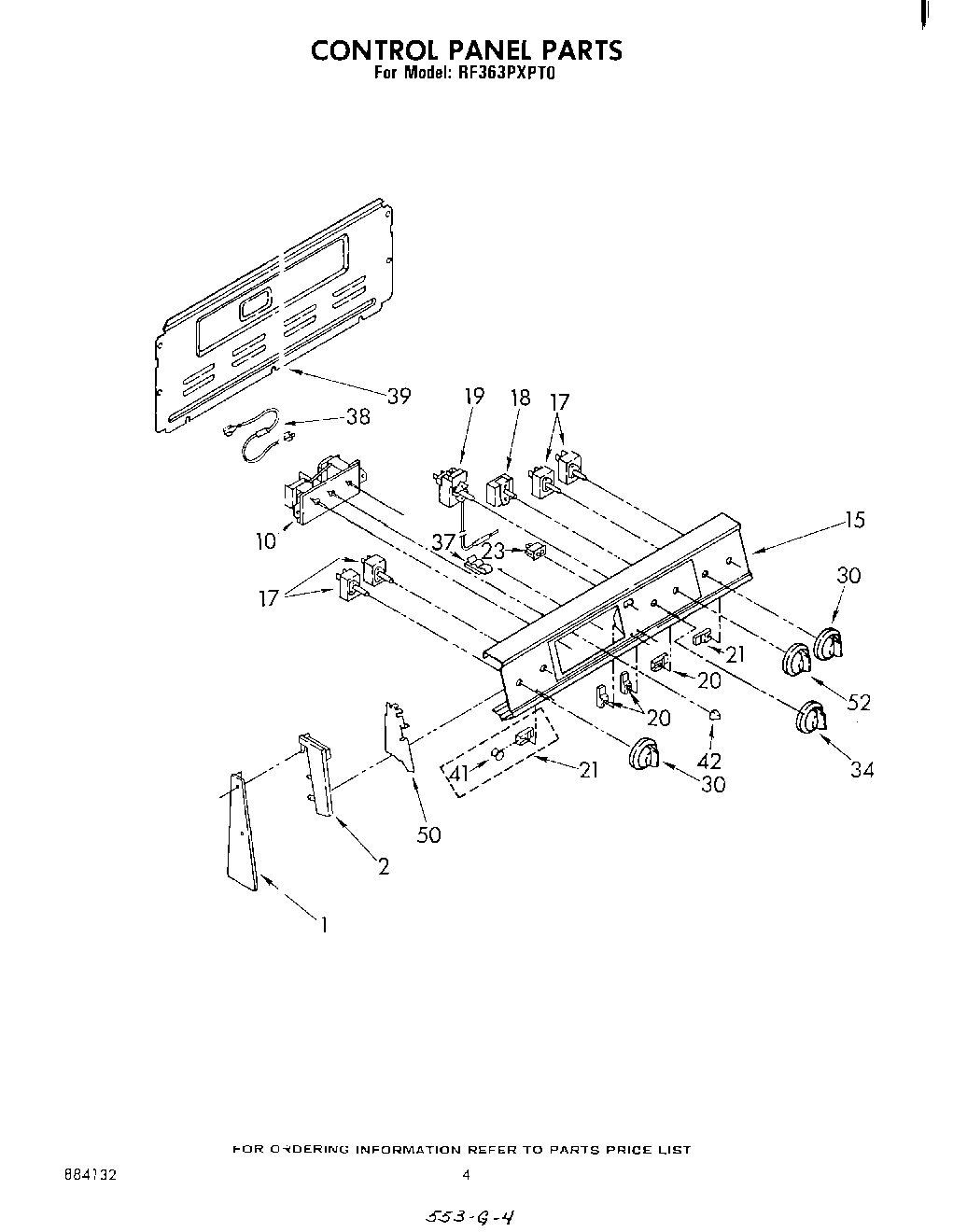

RF363PXPT0 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32×7/16“
1	WP3390631 Whirlpool Screw
1	Screw 10-32×1“
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
10	Timer, Auto
15	Washer
15	Panel, Control
17	WP3149400 Whirlpool Oven Infinite Switch
17	WP3149404 Whirlpool Oven Surface Element Switch
18	WP486579 Whirlpool Air Conditioner Screw
18	Switch, Selector (5 Position)
19	WP313808 Whirlpool Screw
19	Thermostat, Oven Pyro
20	Light, Indicator
21	Light, Indicator (Surface Unit (2))
23	WP4314961 Whirlpool Lite Switch
30	Knob, Switch (4)
34	Knob, Control (4)
34	Screw
37	Clip, Tube
38	Resistor & Terminal Assembly
39	Harness-Conduit Asm.
39	SCREW
41	Lens, Amber
42	Spring (3)
42	WP3169181 Whirlpool Knob
50	Shield (2)
50	WP965173 Whirlpool Dishwasher Screw
52	Knob, Control
52	WP688805 Whirlpool Spring Clip
