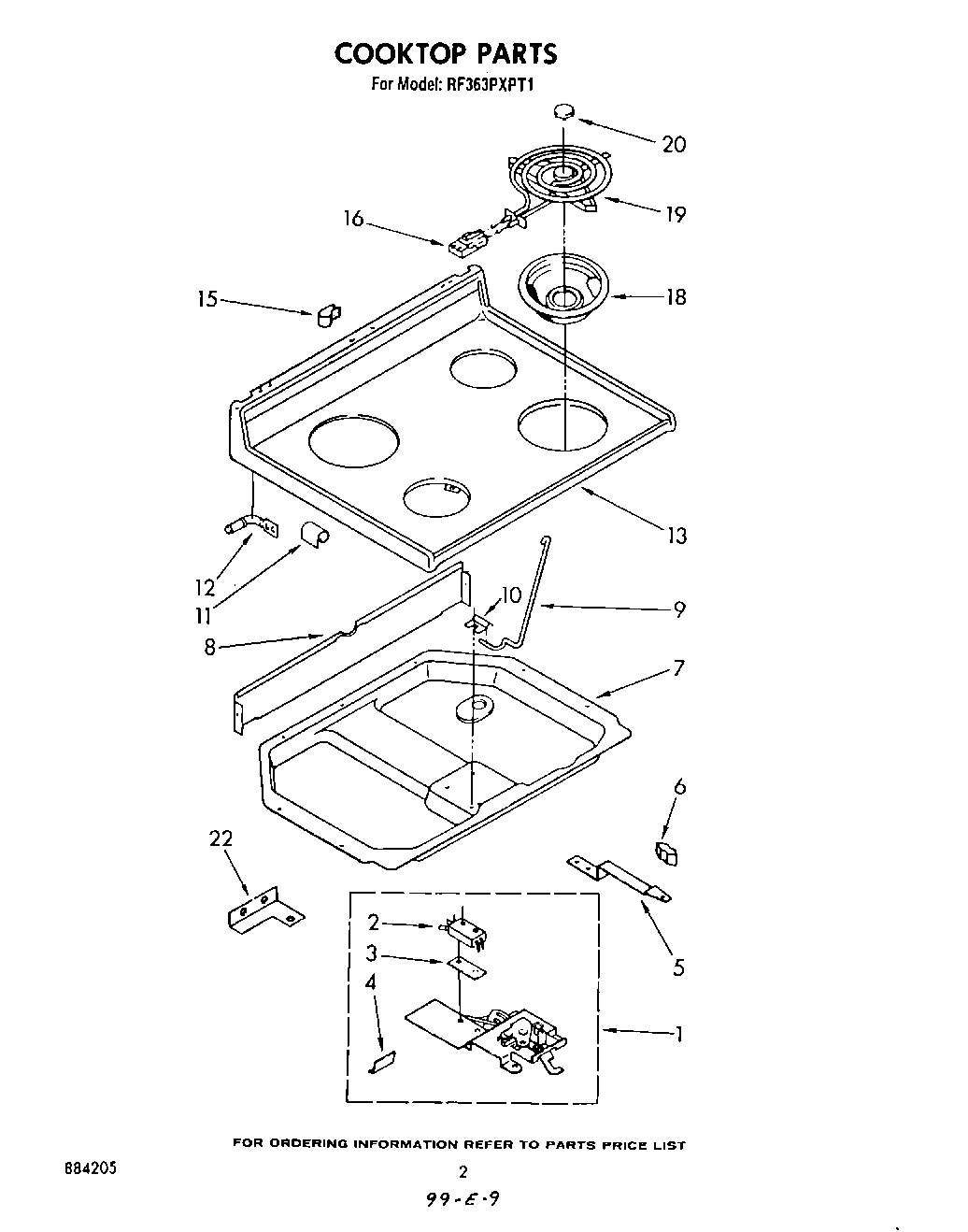

RF363PXPT1 02 – COOK TOP

Products

PositionProduct
WP660533 Whirlpool Oven 8" Surface Element
1Bracket, Cooktop (2)
1Latch Assembly
2Screw
2Safety Switch
3Insulator, Switch
4Shield, Latch
4Screw
5Screw (3)
5Screw
5WP488627 Whirlpool Refrigerator Screw
5Handle, Latch
6Knob, Latch
7Burner Box
8Shield, Wiring
9Rod, Cooktop
10Retainer, Cooktop
10WP3390631 Whirlpool Screw
12Pin, Cooktop (2)
13Cooktop (Chrome)
15WP308605 Whirlpool Refrigerator Clamp
15SCREW
16BURNER RECEPTACLE KIT
16WP313808 Whirlpool Screw
18WPW10196406 Whirlpool 6" Chrome Drip Bowl
18DRIP BOWL 8" W/HOLE CHROME
19WP660532 Whirlpool Oven Surface Element
20Medallion (4)
22WPL 312320
22Screw, 10A x 1/2 (2) (Black)
