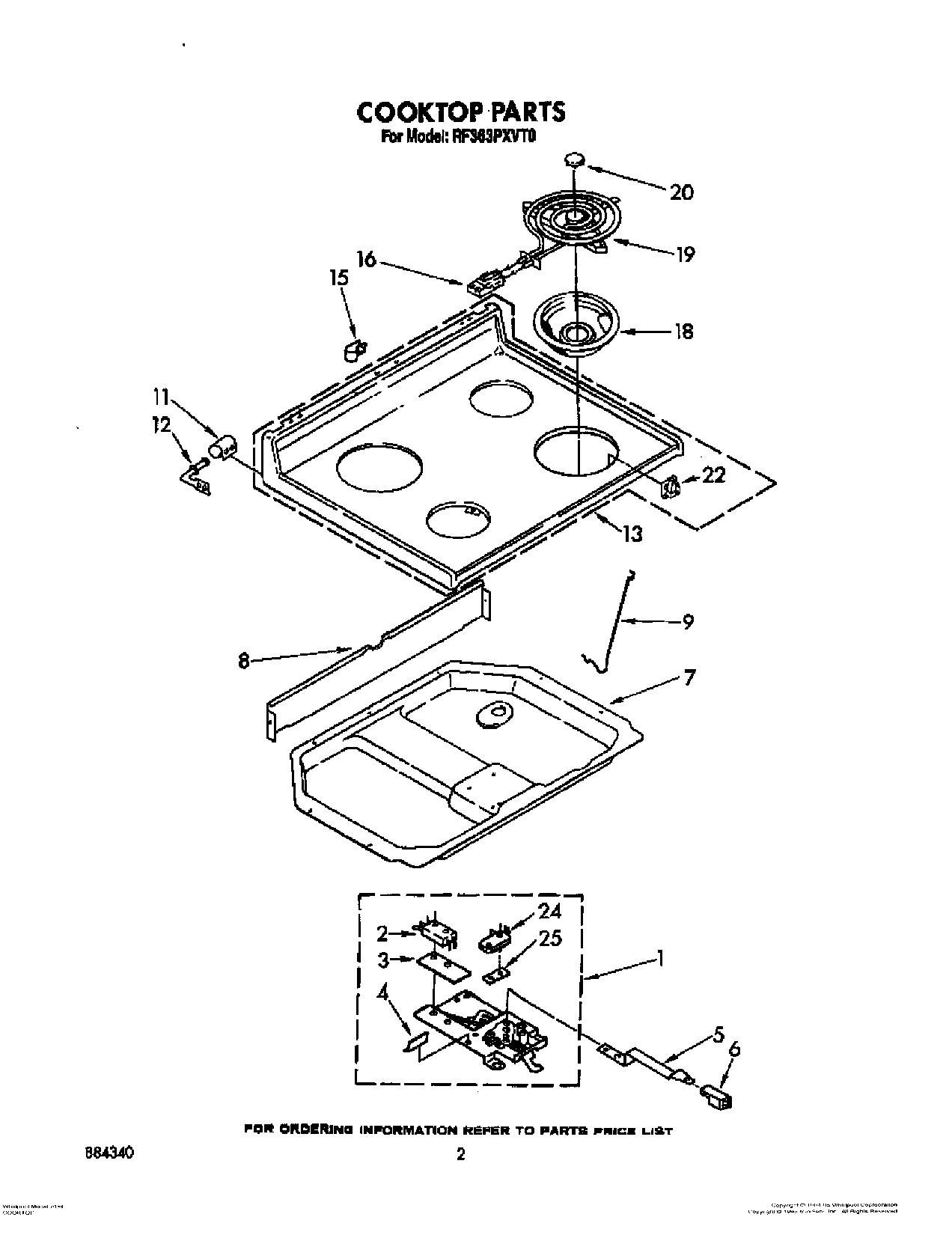

RF363PXVT0 02 – COOKTOP, LIT/OPTIONALadmin2025-04-26T12:48:13+00:00RF363PXVT0 02 – COOKTOP, LIT/OPTIONAL
Products
| Position | Product |
|---|
| List, Parts |
| Guide, Use & Care |
| Instructions, Installation |
| WPL LIT313358 |
| 1 | Latch Assembly |
| 2 | Safety Switch |
| 2 | Screw |
| 3 | Insulator, Switch |
| 4 | Screw |
| 4 | Shield, Latch |
| 5 | Handle, Latch |
| 5 | Screw |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 7 | Box, Burner |
| 7 | WP3390631 Whirlpool Screw |
| 8 | Shield, Wiring |
| 9 | Rod, Cooktop |
| 11 | Bracket, Cooktop (2) |
| 12 | Pin, Cooktop (2) |
| 13 | Cooktop (Platinum) |
| 15 | SCREW |
| 15 | WP308605 Whirlpool Refrigerator Clamp |
| 16 | WP313808 Whirlpool Screw |
| 16 | WP4332752 Whirlpool Clip |
| 18 | DRIP BOWL 8" W/HOLE CHROME |
| 18 | WPW10196406 Whirlpool 6" Chrome Drip Bowl |
| 19 | WP660532 Whirlpool Oven Surface Element |
| 19 | WP660533 Whirlpool Oven 8" Surface Element |
| 20 | Medallion (4) |
| 22 | 814103 Whirlpool Clip |
| 22 | WP487887 Whirlpool Refrigerator Screw |
| 22 | Nut (4) |
| 24 | Switch, Lock |
| 25 | WPL 3147864 |
