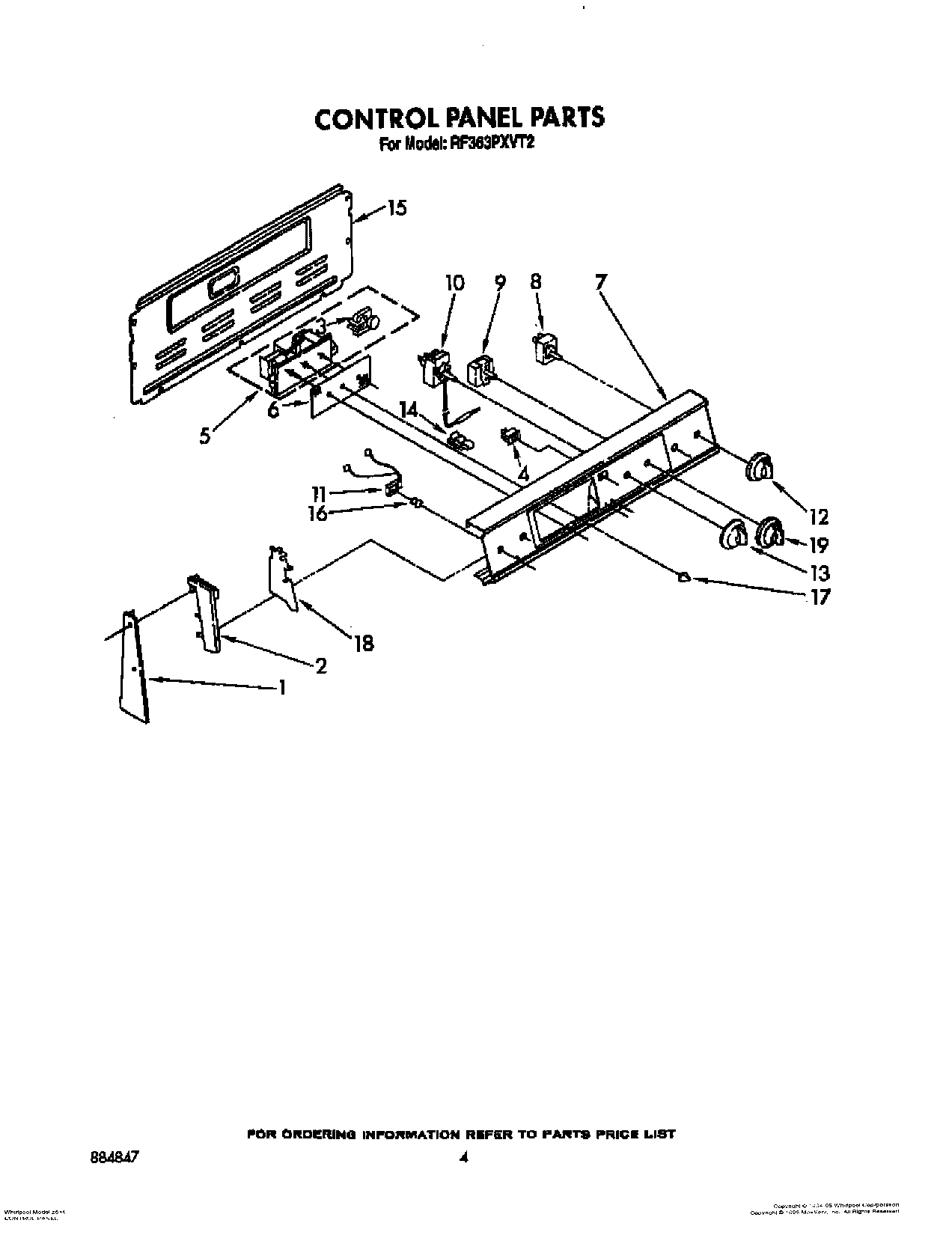

RF363PXVT2 03 – CONTROL PANEL

Products

Position	Product
1	Screw 10-32x1``
1	Screw 10-32x7/16``
2	End Cap L.H.
2	End Cap R.H.
2	Screw,
3	Motor, Timer
4	WP4314961 Whirlpool Lite Switch
5	Timer, Auto
6	Glass, Timer
7	Washer
7	Panel, Control
8	WP3149404 Whirlpool Oven Surface Element Switch
8	SWITCH-INF
9	Switch, Selector (5 Position)
9	WP486579 Whirlpool Air Conditioner Screw
10	Thermostat, Oven
10	WP313808 Whirlpool Screw
11	Light, Indicator (Surface Unit (2))
11	Light, Indicator (250V)
11	Indicator Light (1)
12	WP3149983 Whirlpool Knob
13	Knob, Oven Temp.
14	Clip, Tube
15	Harness-Conduit Asm.
15	SCREW
16	Lens, Amber
17	Spring (3)
17	WP3169181 Whirlpool Knob
18	Shield (2)
18	WP965173 Whirlpool Dishwasher Screw
19	Knob, Selector
