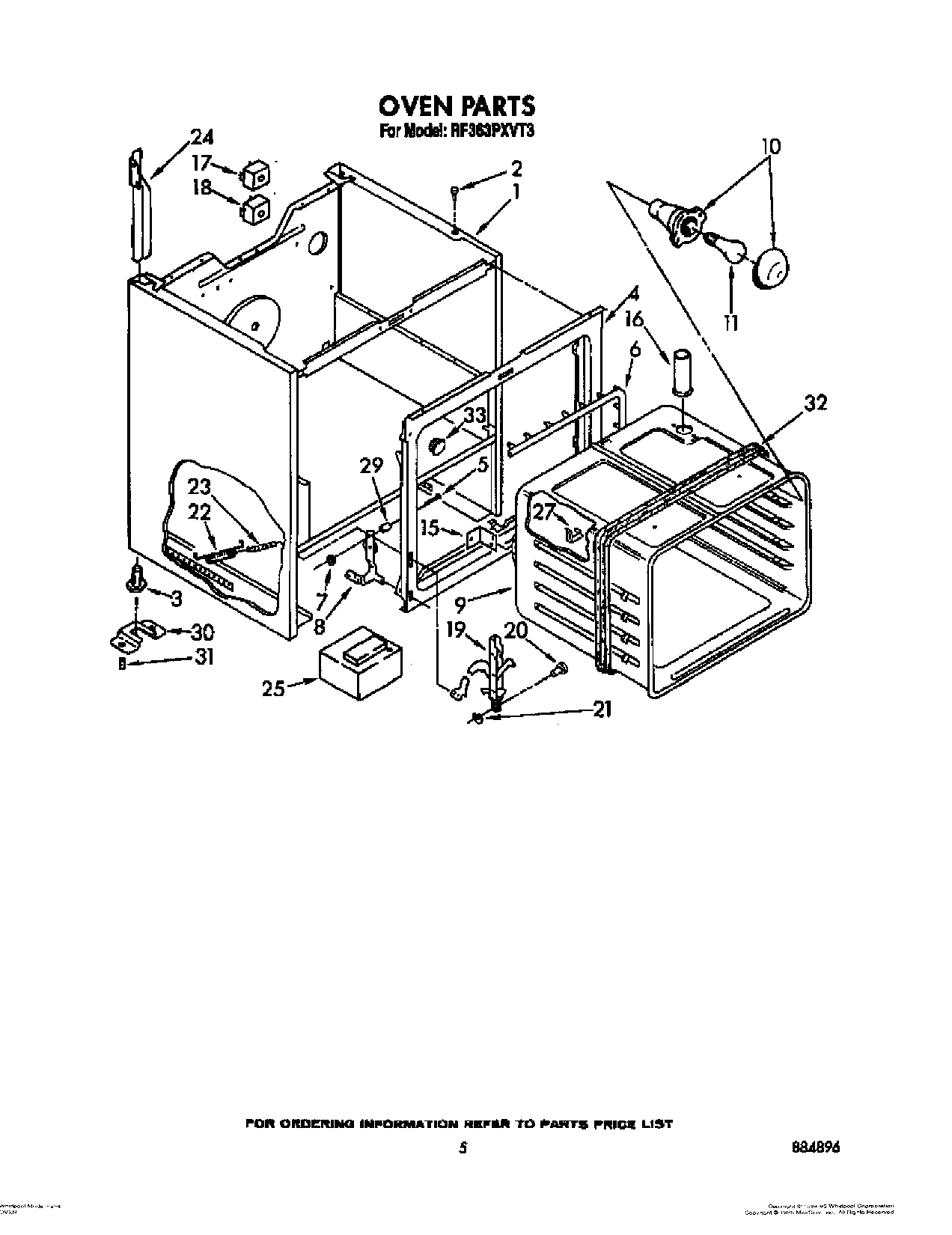

RF363PXVT3 04 – OVEN

Products

PositionProduct
1Main Chassis (Platinum)
2238614 Whirlpool Bumper Hinge
3WPW10058460 Whirlpool Appliance Levelling Leg
4Screw (Top)
4Frame, Front
5Pin, Hinge Ear (2)
6Seal, Door
7Pushnut (2)
8Hinge (R.H.)
8Hinge (L.H.)
9Screw (3)
9Oven (30“ Pyro)
10W11594027 Whirlpool Range Oven Light Socket
11RANGE ONLY 40W 120V APPL BULB
15Bracket, Oven (Mounting)
16Vent, Oven
17Sw
18Switch, Bake
19Channel, Arm (2)
20WP307986 Whirlpool Hinge Pin
21Retainer Ring (2)
22WP308126 Whirlpool Door Spring
23WP308125 Whirlpool Microwave Range/Cooktop Anchor
24SCREW
24Wire Cover
24Wire Cover-Controls (Right)
25340184 Whirlpool Screw
25Block, Balance
2798005642 Whirlpool Clip
29Snubber, Door (2)
30Screw
308273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
31Anchor, Plastic
32WPL 310433
33Plug Button
