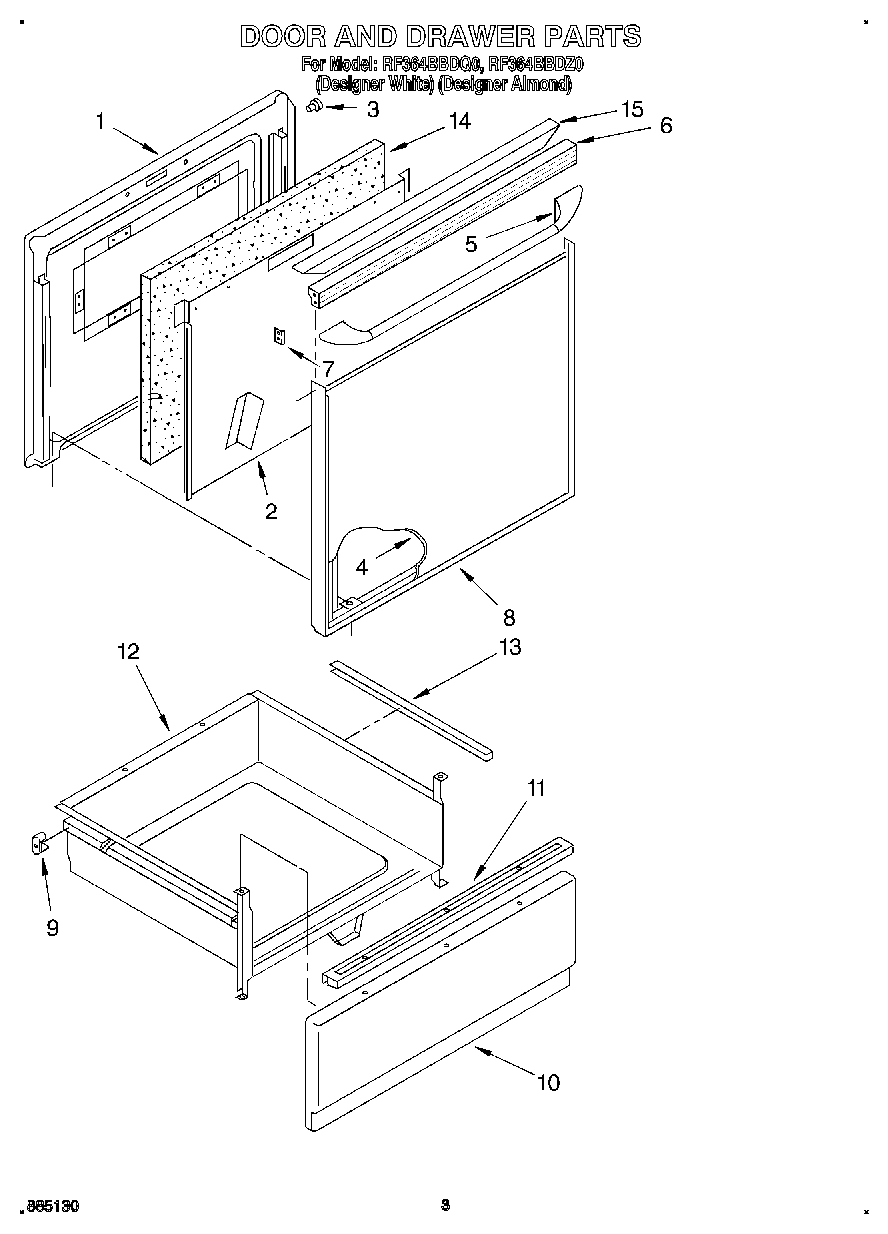

RF364BBDQ0 03 – DOOR AND DRAWER

Products

PositionProduct
1Liner, Oven Door
2Retainer, Insulation
2Screw
3Bumper (4)
4Outer Glass (Almond)
4Outer Glass Panel (Designer White)
5Handle, Door (Almond)
5Handle, Door (White)
6Screw, 10A x 1/2 (2) (Black)
6Top, Door Frame (Designer Almond)
6Top, Door Frame (Designer White)
7WP355515 Whirlpool Screw
7Clip, Mtg (2)
8Frame, Door (Almond)
8Frame, Door (White)
8Frame, Door (Screw (4))
8Handle, Door (Screw)
8Screw
9Glide, Rear (2)
10WP488627 Whirlpool Refrigerator Screw
10Panel Drawer (Almond)
10Panel Drawer (White)
11Handle, Drawer (Almond)
11Handle, Drawer (White)
12Drawer, Utility
13Protector, Drawer (2)
14Insulation, Door
15Cap, Top (Designer Almond)
15Top, Door Frame (Screw (2))
15Cap, Top (Designer White)
15Top, Door Frame (Screw (2))
