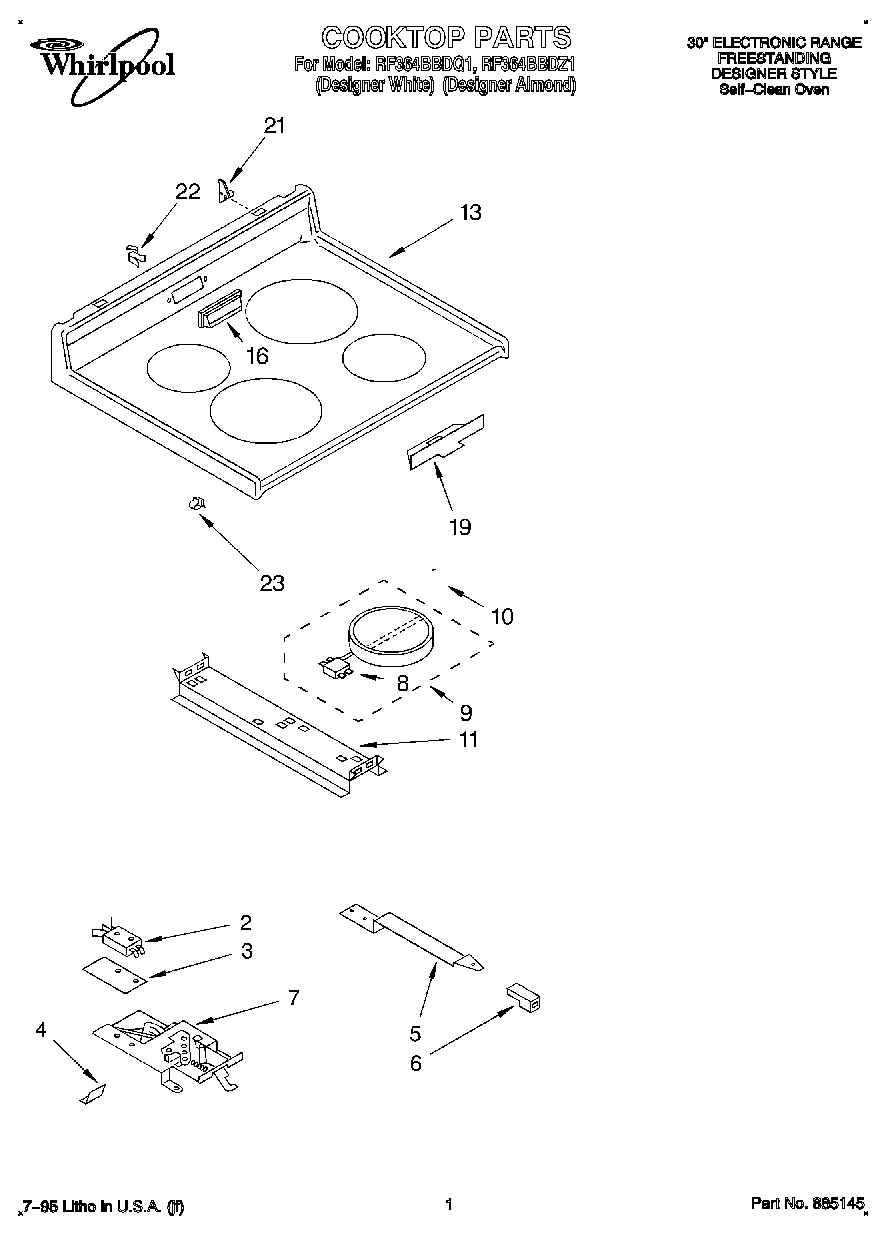

RF364BBDQ1 01 – COOKTOP, LITERATURE

Products

PositionProduct
WPL LIT3150400
Use and Care Guide
WPL LIT677973
Instructions, Installation
Tech Sheet
2Safety Switch
3Insulator, Switch
4Screw
4Shield, Latch
5Screw
5Handle, Latch
6Knob, Latch
6WP486579 Whirlpool Air Conditioner Screw
6Designer Almond
7Latch Mechanism
8Limiter, Temp. (2100W, LF-RR)
8Limiter, Temp. (1700W, RF-LR)
9Element, Surface (Includes No.1) (2100W, LF-RR)
9Element, Surface (Includes No.1) (1700W, RF-LR)
10Spring, Locator
10WP486754 Whirlpool Compactor Screw
11Bracket, (2) Element Support
11Back Splash (Screw (4) 10AB x 1/2“)
13Cooktop Asm. (Almond Mdl.)
13Cooktop (Designer White Mdl)
13WP308685 Whirlpool Microwave Screw
16cover, vent (almond)
16Cover, Vent (White)
19Shield, Probe
21Bracket, Cooktop (Left)
21Bracket, Cooktop (Right)
21SCREW
22Clip, Vent Cover
23Clip
