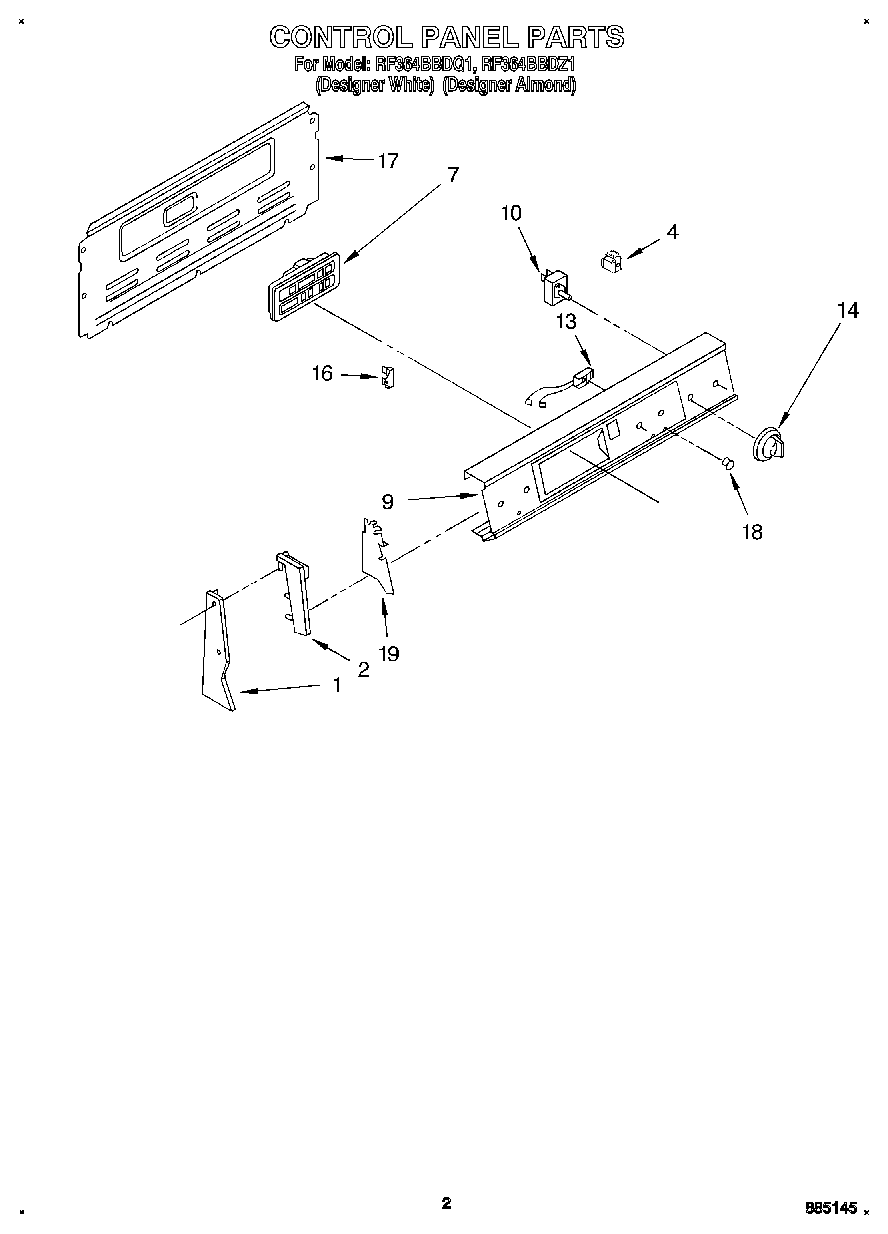

RF364BBDQ1 02 – CONTROL PANEL

Products

Position	Product
1	End Trim (L.H. White)
1	End Trim (R.H. White)
1	End Trim (L.H. Almond)
1	End Trim (R.H. Almond)
2	End Cap L.H. (Designer White)
2	End Cap R.H. (Designer White)
2	End Cap R.H. (Designer Almond)
2	End Cap L.H. (Designer Almond)
4	Adapter, Terminal
7	Timer, ERC Control (Designer Almond)
7	Electronic Control (Designer White Mdl)
9	Panel, Control (Almond)
9	Panel, Control (White)
9	Panel, Control (Designer White)
9	Panel, Control (Designer Almond)
10	Screw, 8-32 x 3/16 (2)
10	WP3148952 Whirlpool Oven Infinite Switch
10	SWITCH-INF
13	Indicator Light (Surface Unit On)
13	Light, Indicator (Hot Surface (1))
14	WP3196232 Whirlpool Knob
14	WPL 3188723
16	Fuse, Thermal
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
