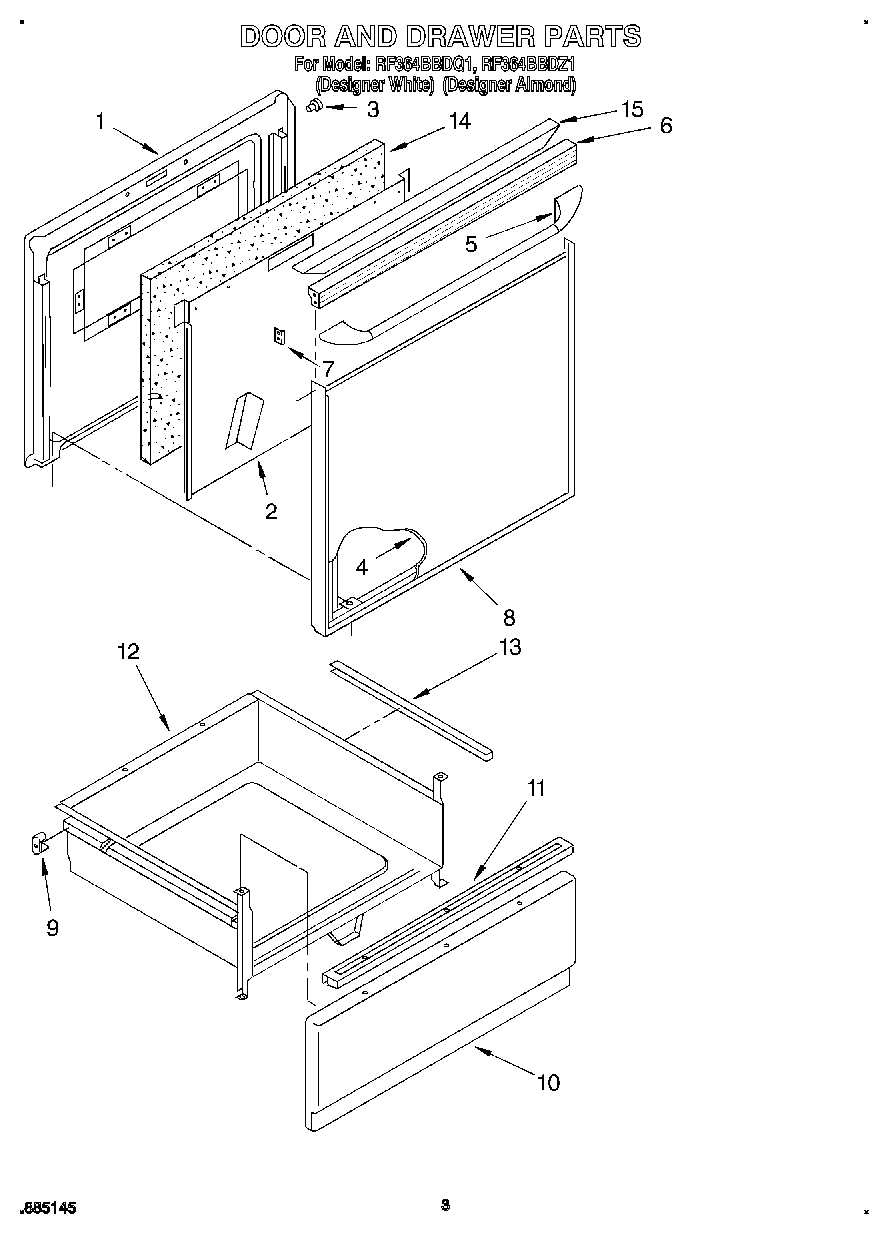

RF364BBDQ1 03 – DOOR AND DRAWERadmin2025-04-26T11:36:09+00:00RF364BBDQ1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Liner, Oven Door |
| 2 | Retainer, Insulation |
| 2 | Screw |
| 3 | Bumper (4) |
| 4 | Outer Glass (Almond) |
| 4 | Outer Glass Panel (Designer White) |
| 5 | Handle, Door (Almond) |
| 5 | Handle, Door (White) |
| 6 | Screw, 10A x 1/2 (2) (Black) |
| 6 | Top, Door Frame (Designer Almond) |
| 6 | Top, Door Frame (Designer White) |
| 7 | WP355515 Whirlpool Screw |
| 7 | Clip, Mtg (2) |
| 8 | Frame, Door (Almond) |
| 8 | Frame, Door (White) |
| 8 | Frame, Door (Screw (4)) |
| 8 | Handle, Door (Screw) |
| 8 | Screw |
| 9 | Glide, Rear (2) |
| 10 | WP488627 Whirlpool Refrigerator Screw |
| 10 | Panel Drawer (Almond) |
| 10 | Panel Drawer (White) |
| 11 | Handle, Drawer (Almond) |
| 11 | Handle, Drawer (White) |
| 12 | Drawer, Utility |
| 13 | Protector, Drawer (2) |
| 14 | Insulation, Door |
| 15 | Cap, Top (Designer Almond) |
| 15 | Top, Door Frame (Screw (2)) |
| 15 | Cap, Top (Designer White) |
| 15 | Top, Door Frame (Screw (2)) |
