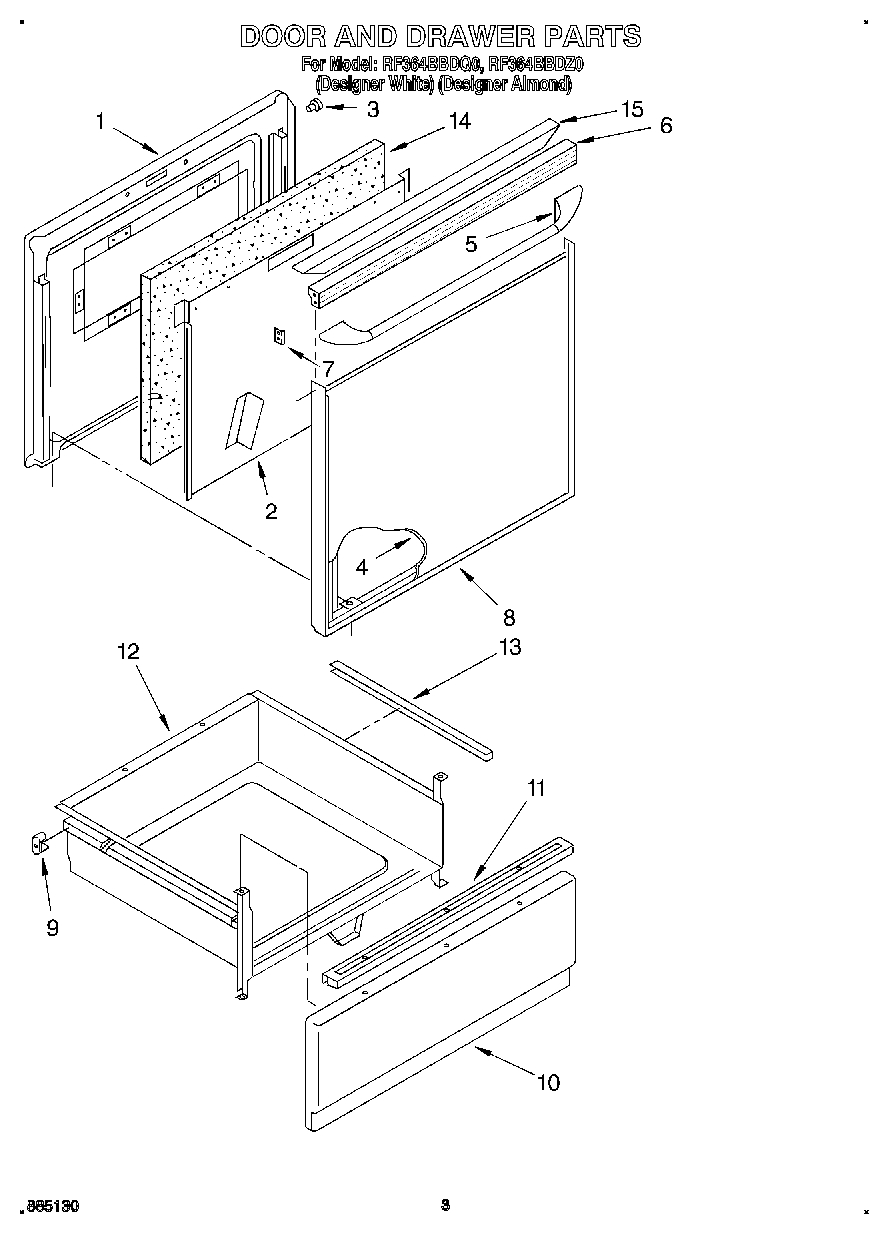

RF364BBDZ0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
2	Retainer, Insulation
2	Screw
3	Bumper (4)
4	Outer Glass (Almond)
4	Outer Glass Panel (Designer White)
5	Handle, Door (Almond)
5	Handle, Door (White)
6	Screw, 10A x 1/2 (2) (Black)
6	Top, Door Frame (Designer Almond)
6	Top, Door Frame (Designer White)
7	WP355515 Whirlpool Screw
7	Clip, Mtg (2)
8	Frame, Door (Almond)
8	Frame, Door (White)
8	Frame, Door (Screw (4))
8	Handle, Door (Screw)
8	Screw
9	Glide, Rear (2)
10	WP488627 Whirlpool Refrigerator Screw
10	Panel Drawer (Almond)
10	Panel Drawer (White)
11	Handle, Drawer (Almond)
11	Handle, Drawer (White)
12	Drawer, Utility
13	Protector, Drawer (2)
14	Insulation, Door
15	Cap, Top (Designer Almond)
15	Top, Door Frame (Screw (2))
15	Cap, Top (Designer White)
15	Top, Door Frame (Screw (2))
