RF364BXBN0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	Instructions, Installation
	Wiring Diagram
	WPL LIT3150400

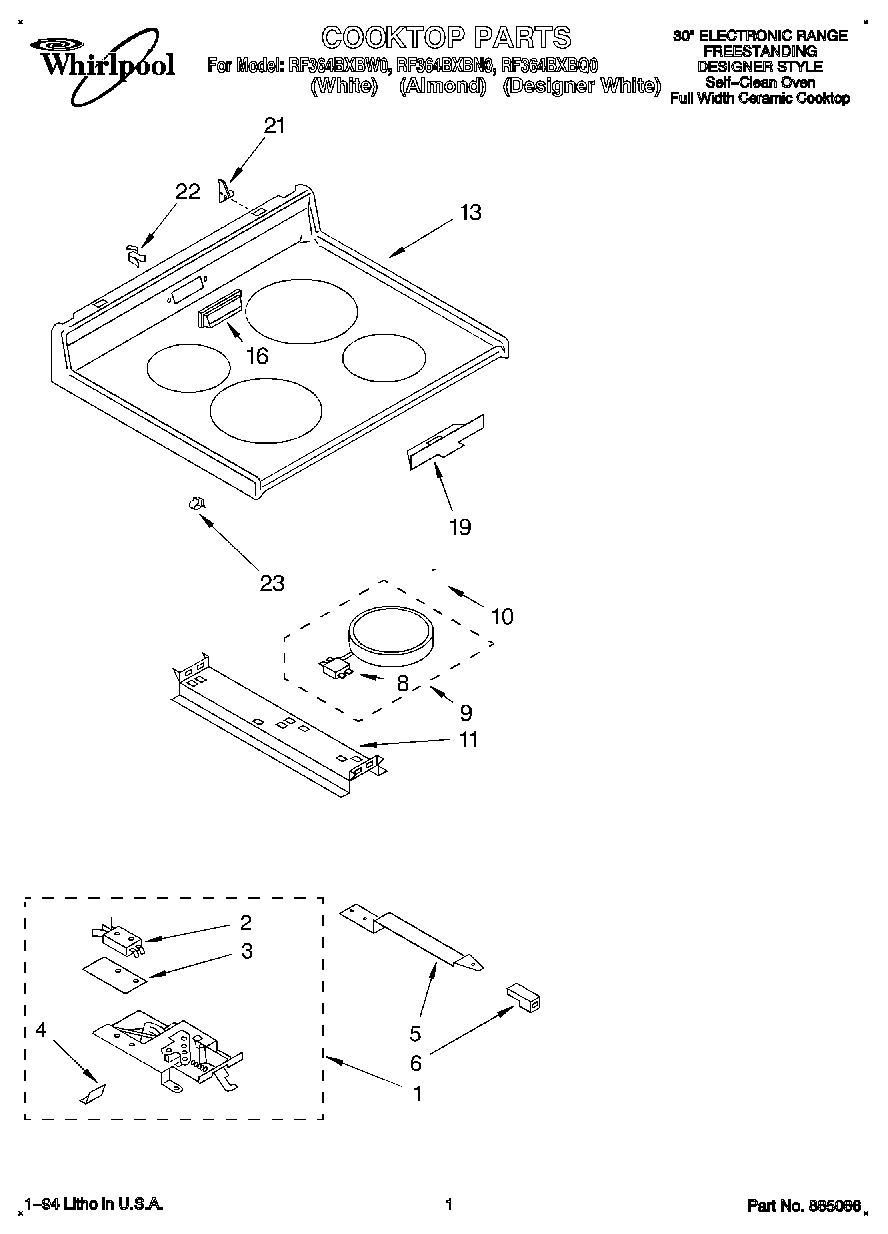

1	Latch & Switch Assembly
2	Screw
2	Safety Switch
3	Insulator, Switch
4	Shield, Latch
4	Screw
5	Screw
5	Handle, Latch
5	Handle, Latch
6	WP486579 Whirlpool Air Conditioner Screw
6	Knob, Latch
6	Knob, Latch
8	Switch, Limit (Use W/3183200 Element)
8	Limiter, Temp. (2100W, LF-RR)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Bracket, (2) Element Support
11	Back Splash (Screw (4) 10AB x 1/2“)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (White Mdl.)
13	Cooktop (Almond Mdl.)
13	Cooktop (Designer White Mdl)
16	cover, vent (almond)
16	Cover, Vent (White)
19	Shield, Probe
21	Bracket, Cooktop (Right)
21	Bracket, Cooktop (Left)
21	SCREW
22	Clip, Vent Cover
23	Clip
