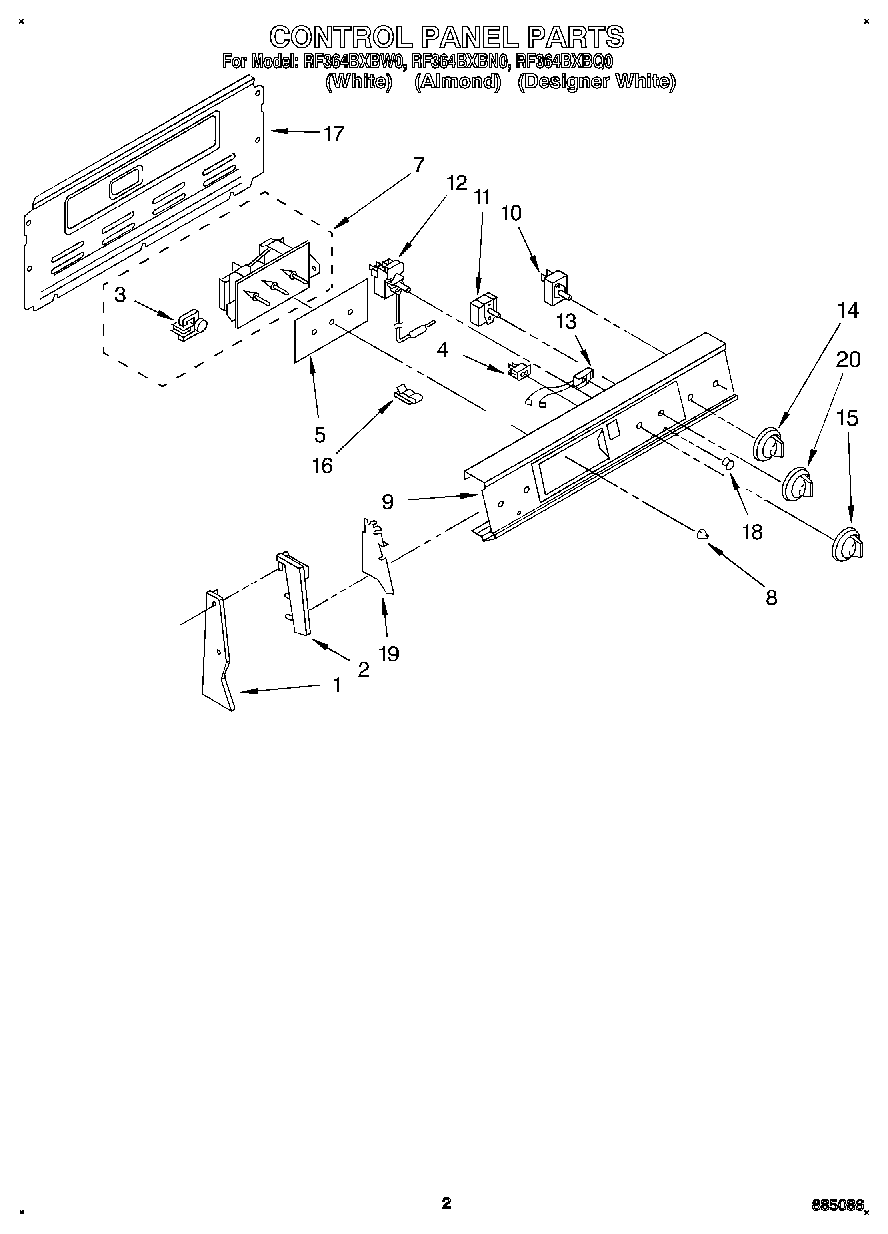

RF364BXBN0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	End Trim R.H.
2	End Cap R.H.
2	End Cap L.H.
2	End Cap, R.H. (White/Almond/Gold)
2	Screw,
2	End Cap, R.H. (White/Almond/Gold)
3	Motor, Timer
4	WP4314961 Whirlpool Lite Switch
4	3149360 Whirlpool Light Switch
5	Glass, Timer
7	Control, Oven Assembly
7	Timer, Control
8	WP3169181 Whirlpool Knob
9	Panel, Control (Designer White)
9	Washer
9	Panel, Control (White/Almond)
10	Screw, 8-32 x 3/16 (2)
10	SWITCH-INF
10	WP3148952 Whirlpool Oven Infinite Switch
11	Switch, Selector
12	Thermostat, 0ven Pyro
12	WP313808 Whirlpool Screw
13	Indicator Light (1)
13	Light, Indicator (250V)
13	Light, Indicator (Includes No. 12) (Surface Unit On)
14	Knob, (4) Infinite Switch (Designer Mdl)
14	Knob, (4) Infinite Switch (White/Almond/Gold)
15	Designer White Mdl
15	Knob (Temp) (White/Almond)
16	Clip, Tube
17	Rear Cover Contr
17	SCREW
18	Lens, Amber
19	Shield (2)
19	WP965173 Whirlpool Dishwasher Screw
20	Knob (Selector)
20	WPL 3183116
