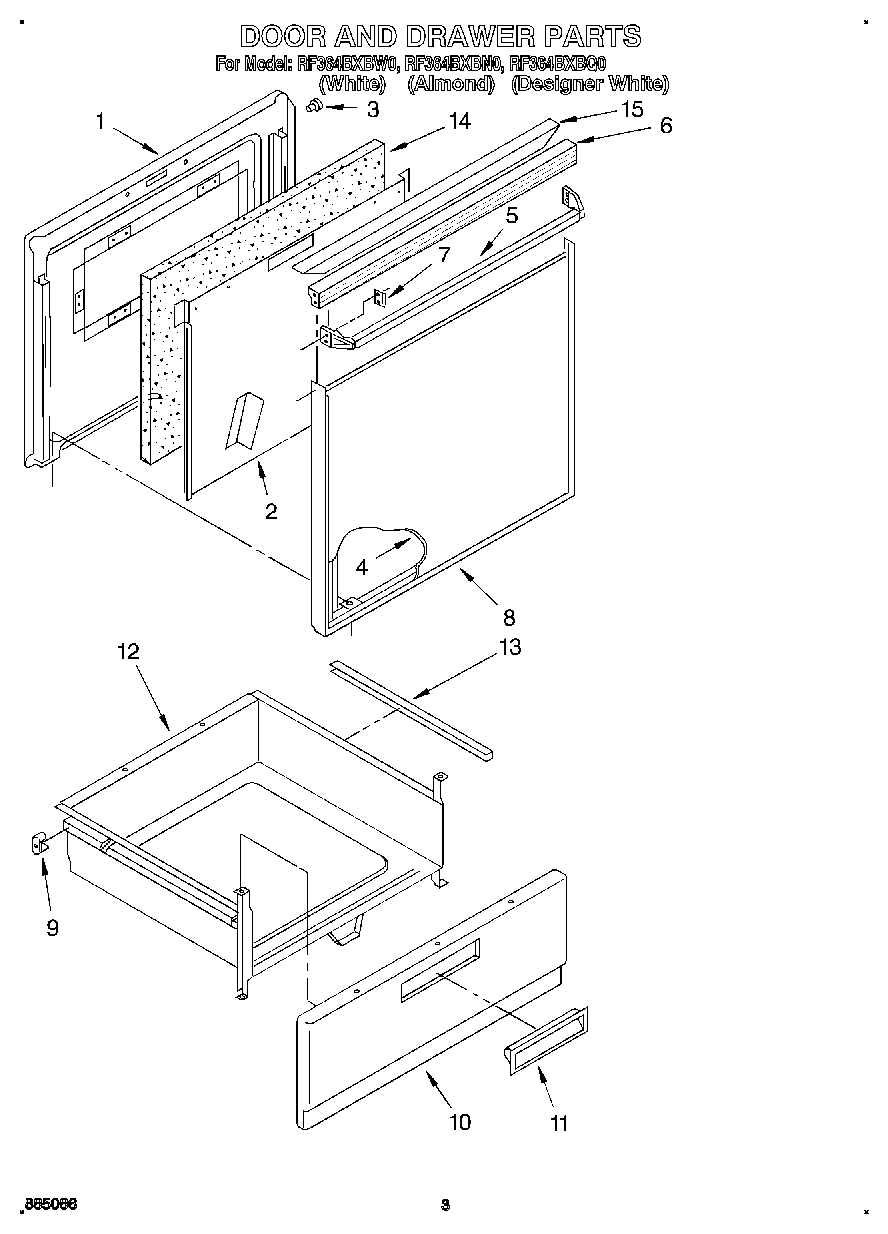

RF364BXBN0 03 – DOOR AND DRAWER

Products

Position	Product
1	Liner, Oven Door
2	Retainer, Insulation
2	Screw
3	Bumper (4)
4	Panel, Door (Black Glass)
4	Outer Glass Panel (Designer White)
5	Handle, Oven Door
5	Handle, Door (White)
6	Top, Door (White Model)
6	Top, Door (Black Model)
7	Clip, Mtg (2)
8	WP355515 Whirlpool Screw
8	Screw, 10A x 1/2 (2) (Black)
8	Frame, Door
9	Glide, Rear (2)
10	Panel, Drawer (Almond)
10	Panel, Drawer (White)
10	WP488627 Whirlpool Refrigerator Screw
11	Handle, Snap-In (White)
11	Handle, Snap-In (Almond)
12	Drawer, Utility
13	Protector, Drawer (2)
14	Insulation, Door
15	Cap, Top
