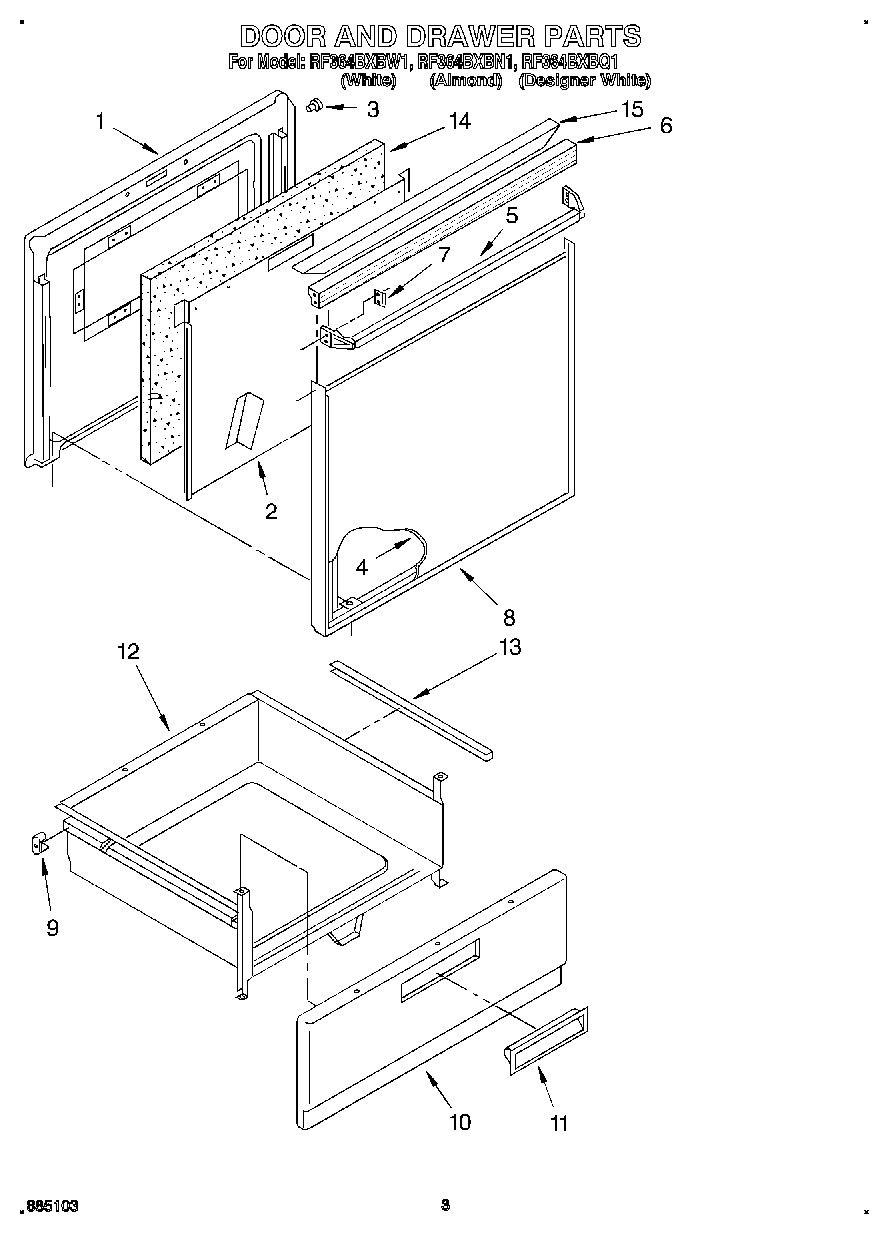

RF364BXBN1 03 – DOOR AND DRAWERadmin2025-04-26T12:48:28+00:00RF364BXBN1 03 – DOOR AND DRAWER
Products
| Position | Product |
|---|
| 1 | Screw |
| 1 | Liner, Oven Door |
| 2 | Retainer, Insulation |
| 2 | Screw |
| 3 | Bumper (4) |
| 4 | Panel, Door (Black Glass) |
| 4 | Outer Glass Panel (Designer White) |
| 5 | Handle, Door (White) |
| 5 | Handle, Oven Door |
| 6 | Top, Door (Black Model) |
| 6 | Top, Door (White Model) |
| 7 | Clip, Mtg (2) |
| 8 | Frame, Door |
| 8 | Screw, 10A x 1/2 (2) (Black) |
| 8 | WP355515 Whirlpool Screw |
| 9 | Glide, Rear (2) |
| 10 | WP488627 Whirlpool Refrigerator Screw |
| 10 | Panel, Drawer (Almond) |
| 10 | Panel, Drawer (White) |
| 11 | Handle, Snap-In (White) |
| 11 | Handle, Snap-In (Almond) |
| 12 | Drawer, Utility |
| 13 | Protector, Drawer (2) |
| 14 | Insulation, Door |
| 15 | Cap, Top |
