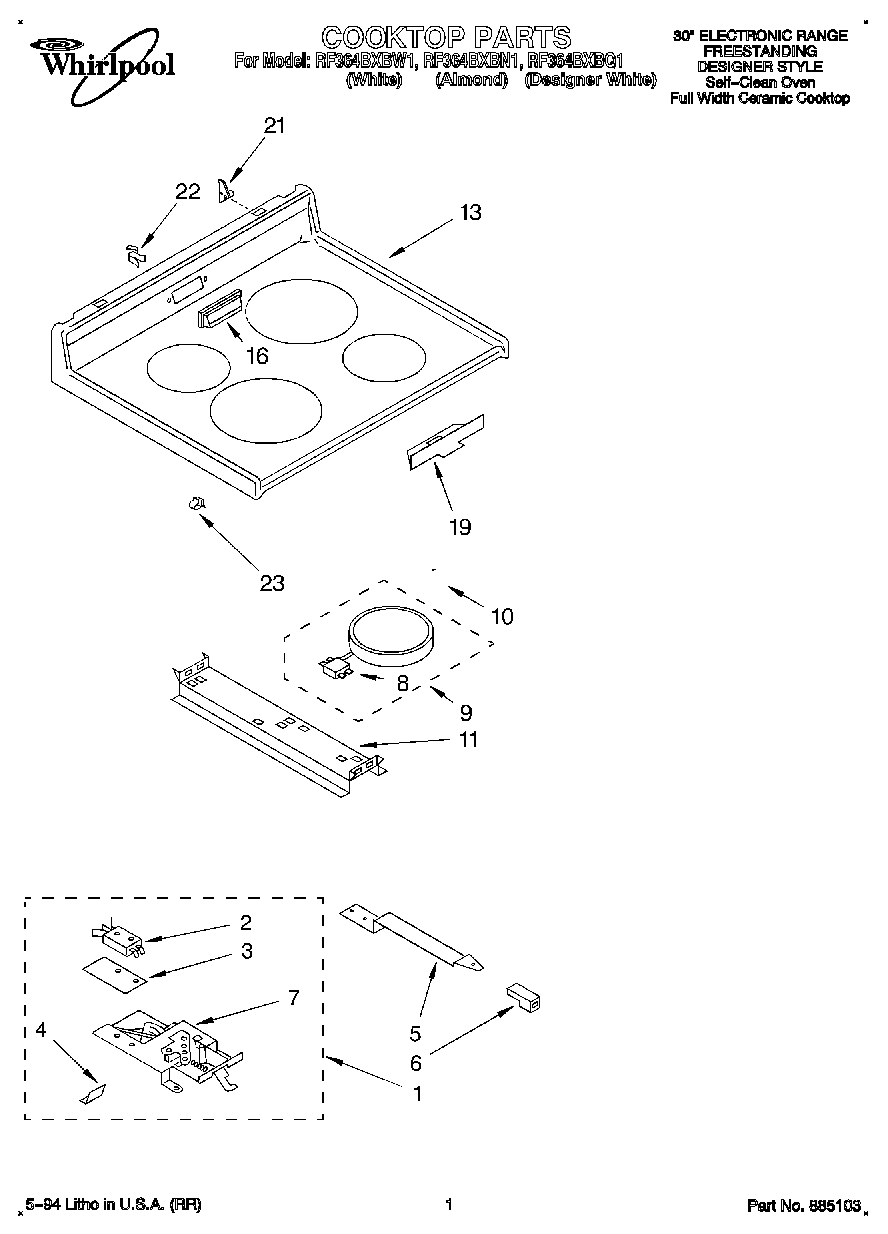

RF364BXBW1 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	Instructions, Installation
	WPL LIT3150400
	Wiring Diagram
1	Latch & Switch Assembly
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Handle, Latch
5	Handle, Latch
5	Screw
6	Knob, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Latch Mechanism
8	Limiter, Temp. (2100W, LF-RR)
8	Switch, Limit (Use W/3183200 Element)
9	Element, Surface (1700W Right Front)
9	Element, Surface (2100W Right Rear)
10	Spring, Locator
10	WP486754 Whirlpool Compactor Screw
11	Back Splash (Screw (4) 10AB x 1/2“)
11	Bracket, (2) Element Support
13	Cooktop (White Mdl.)
13	Cooktop (Designer White Mdl)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (Almond Mdl.)
16	Cover, Vent (White)
16	cover, vent (almond)
19	Shield, Probe
21	Bracket, Cooktop (Left)
21	Bracket, Cooktop (Right)
21	SCREW
22	Clip, Vent Cover
23	Clip
