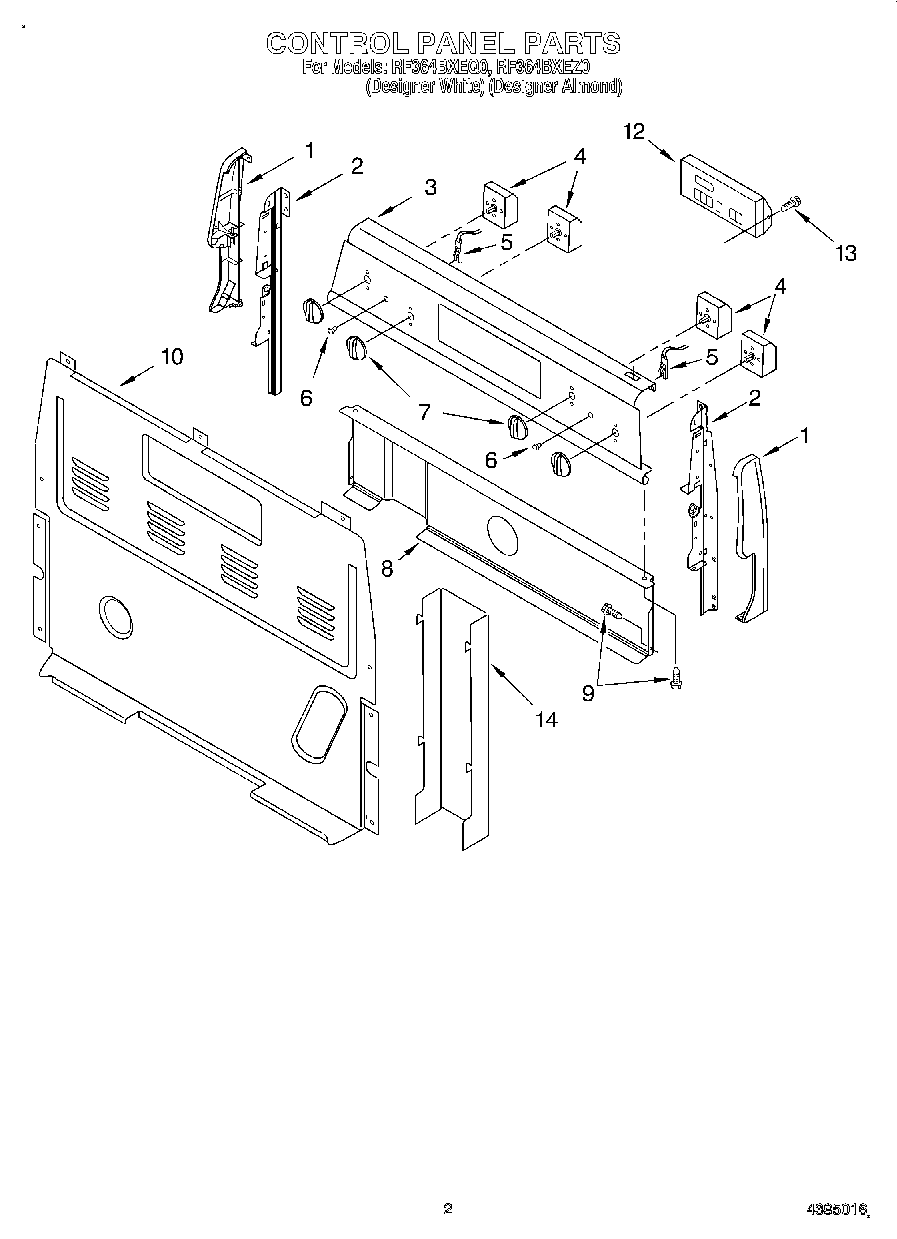

RF364BXEQ0 02 – CONTROL PANEL

RF364BXEQ0 02 – CONTROL PANEL

Written by

in

RF364BXEQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Almond Right Hand)
1Endcap (White Left Hand)
1Endcap (White Right Hand)
1Endcap (Almond Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Almond)
3Panel, Backguard (White)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
4Switch, Infinite (Screw (8))
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7Knob, Infinite (4) (Almond)
7WP3196232 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
12Control, Range (White)
12Control, Range (Almond)
14WPW10326122 Whirlpool Black Cover
14SCREW
