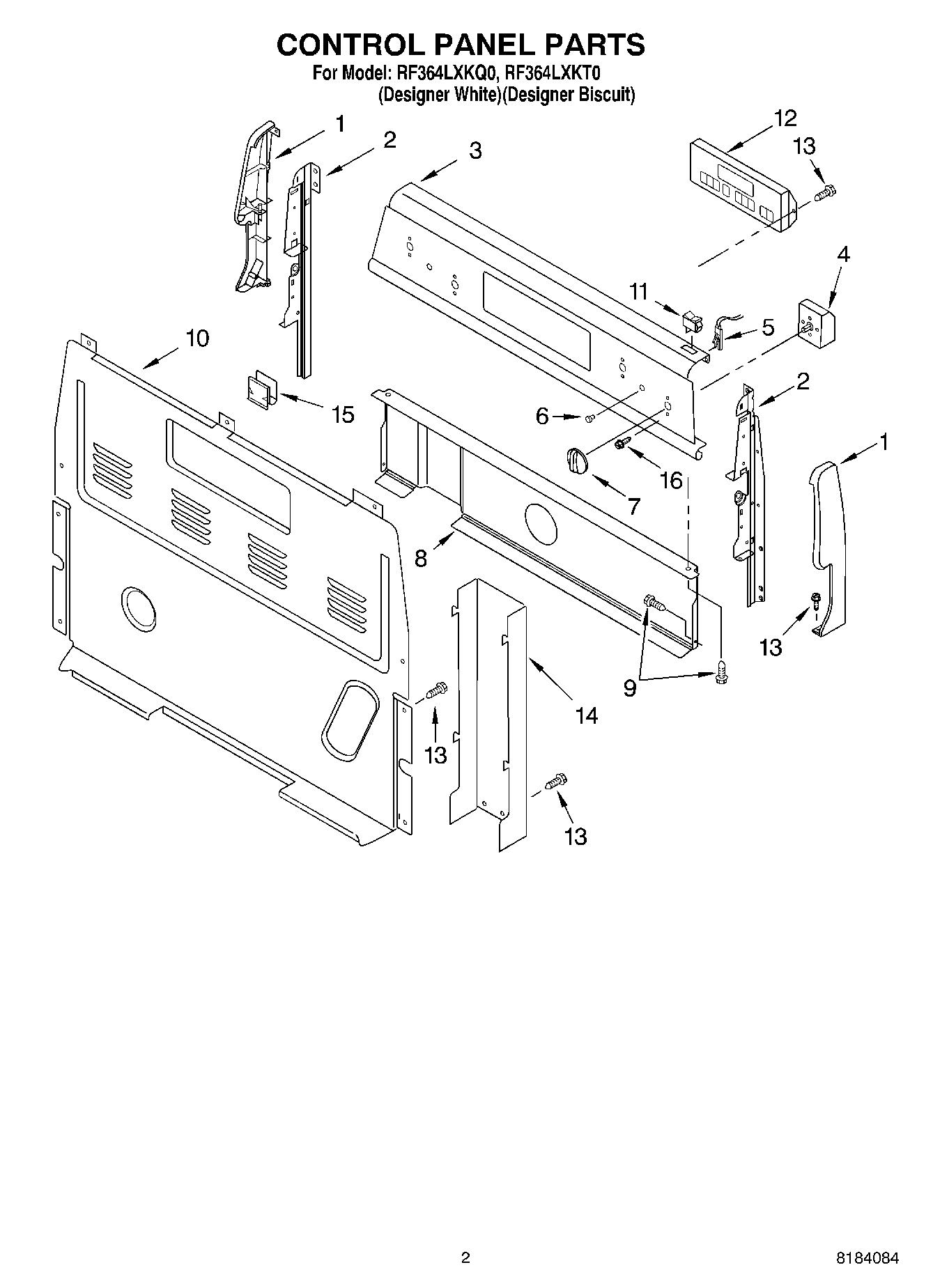

RF364LXKQ0 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
1Endcap (Biscuit Left Hand)
2Support, Endcap (Right Hand)
2Support, Endcap (Left Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4SWITCH-INF
4WP3148952 Whirlpool Oven Infinite Switch
5Light, Indicator (Surface Unit (2))
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
113149360 Whirlpool Light Switch
11Switch, Rocker (Biscuit)
12WP6610457 Whirlpool Electronic Control Board + Core
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP8273564 Whirlpool Clip
16WP3400882 Whirlpool Screw
