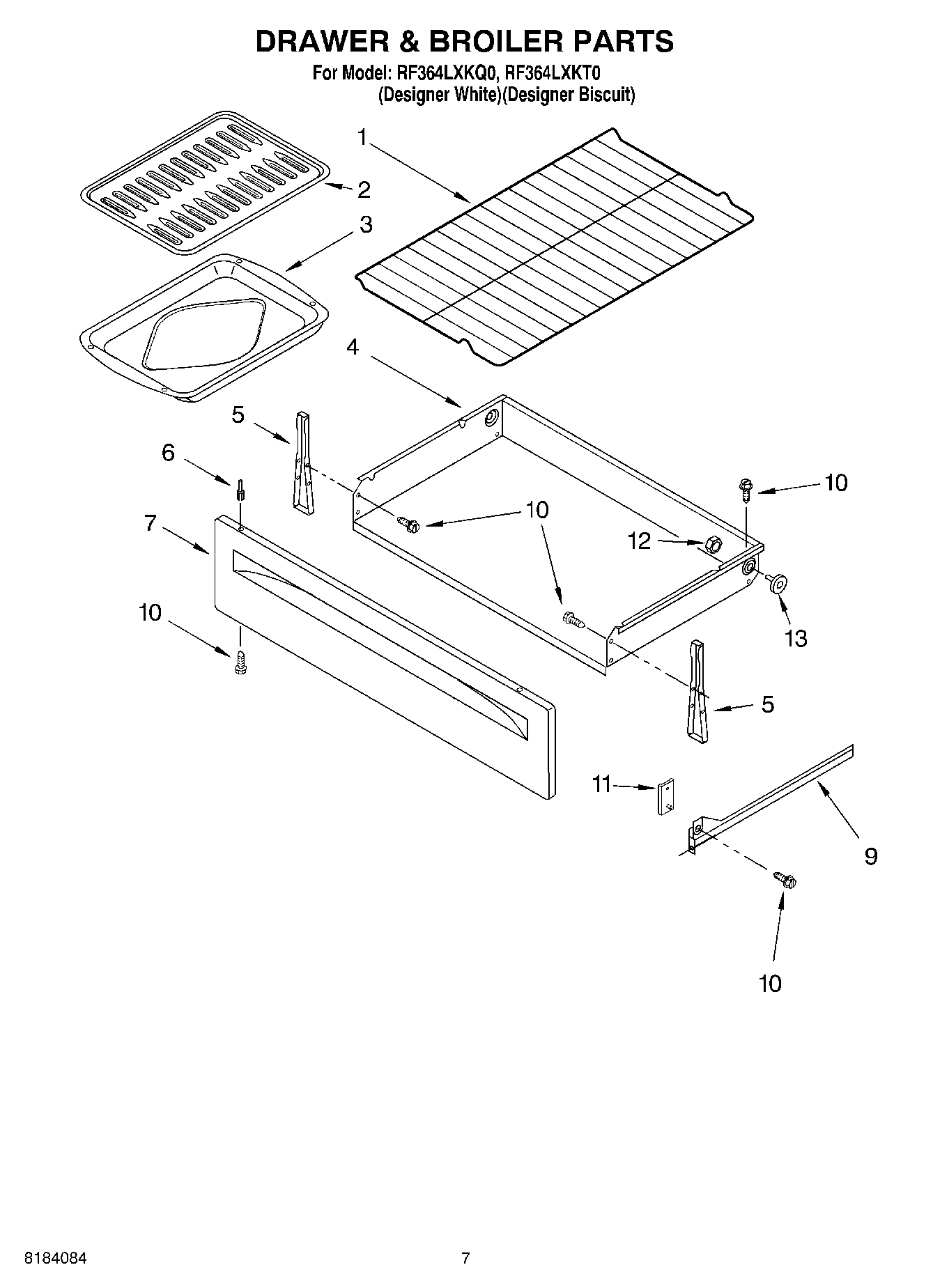

RF364LXKQ0 05 – DRAWER & BROILER

Products

Position	Product
1	WPW10256908 Whirlpool Oven Range Rack
2	WP3195996 Whirlpool Pan Grid
3	WP3196076 Whirlpool Broil Pan
4	Drawer, Storage
5	W10838990 Whirlpool Mounting Bracket
6	WP3196814 Whirlpool Rivet
7	W11219377 Whirlpool Drawer Panel
9	Rail, Drawer (Right Hand)
9	Rail, Drawer (Left Hand)
10	WP3400832 Whirlpool Screw
11	Spacer, Glide
12	WP487939 Whirlpool Refrigerator Nut
13	Wire (12 Ga. 150 c Black)
13	Wire (14 Ga. 150 c Yellow)
13	Wire (14 Ga. 150 c Orange)
13	Wire (14 Ga. 150 c Green)
13	WPL 8273304
13	18 Ga. 80~c Rating (Red)
13	Wire (14 Ga. 200 c Brown)
13	WPL 8273305
13	WPL 8272999
13	WPL 8273266
13	WP3196154 Whirlpool Screw Assembly
13	8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
13	Grease
13	3196696 Whirlpool Clip
13	3184020 Whirlpool Oven Wire
13	8212471 Whirlpool Oven Paint
13	W11244557 Whirlpool Screw
13	1
13	Wire (14 Ga. 150 c Brown)
13	Wire (14 Ga. 150 c Blue)
13	FOIL, ALUMINUM OVEN (18“ X 25 )
13	WPW10208653 Whirlpool Insulation
13	WPL 799832
13	511873 Whirlpool Refrigerator Paint
13	Almond (Uncut)
13	WP72107 Whirlpool Touchup
13	799344 Whirlpool Refrigerator Paint
13	72017 Whirlpool Appliance Touch-Up Paint White
13	350956 Whirlpool Spray Assembly
13	Wire, 25` Roll (Black 14 Ga.)
13	Wire, 25` Roll (Red 14 Ga.)
13	242831 Whirlpool Oven Wire
13	350942 Whirlpool Spray Paint
13	Clip, Ground Wire
13	3400964 Whirlpool Oven Clip
13	814229 Whirlpool Primary Roller
13	814381 Whirlpool Pin
13	W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
13	285006 Whirlpool Spray
13	Wire, 25“ Roll (White 14 GA.)
13	350930 Whirlpool White Spray Paint
