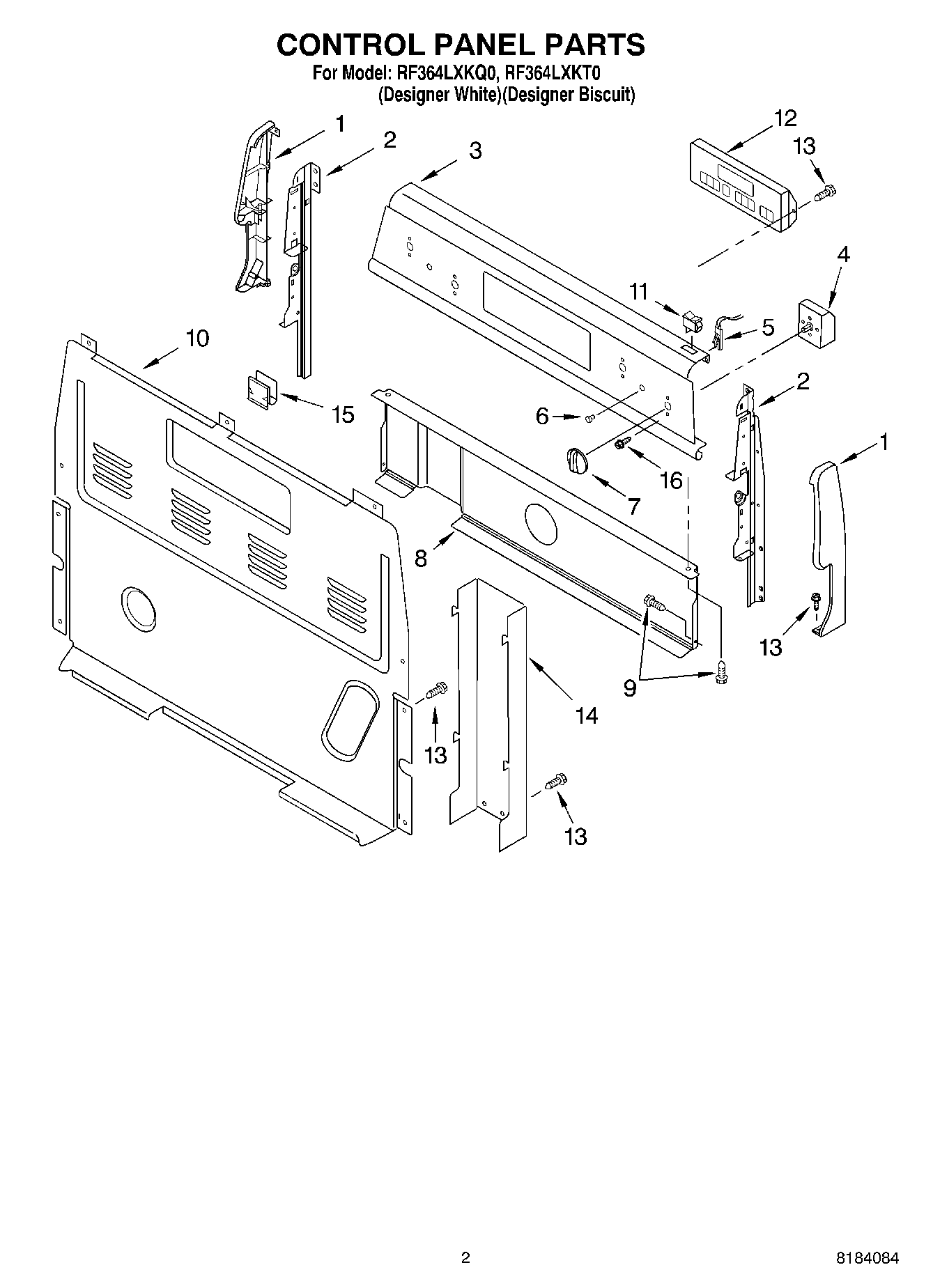

RF364LXKT0 02 – CONTROL PANEL

Products

Position	Product
1	Endcap (Biscuit Right Hand)
1	Endcap (White Right Hand)
1	Endcap (White Left Hand)
1	Endcap (Biscuit Left Hand)
2	Support, Endcap (Right Hand)
2	Support, Endcap (Left Hand)
3	Panel, Backguard (Biscuit)
3	Panel, Backguard (White)
4	SWITCH-INF
4	WP3148952 Whirlpool Oven Infinite Switch
5	Light, Indicator (Surface Unit (2))
6	WP3196068 Whirlpool Light Lens
7	Knob, Control (4) (Biscuit)
7	WP8522565 Whirlpool Knob
8	Shield, Heat
9	Screw
10	WP8272473 Whirlpool Rear Cover
11	3149360 Whirlpool Light Switch
11	Switch, Rocker (Biscuit)
12	WP6610457 Whirlpool Electronic Control Board + Core
12	Control, Range (Biscuit)
13	SCREW
14	WPW10326122 Whirlpool Black Cover
15	WP8273564 Whirlpool Clip
16	WP3400882 Whirlpool Screw
