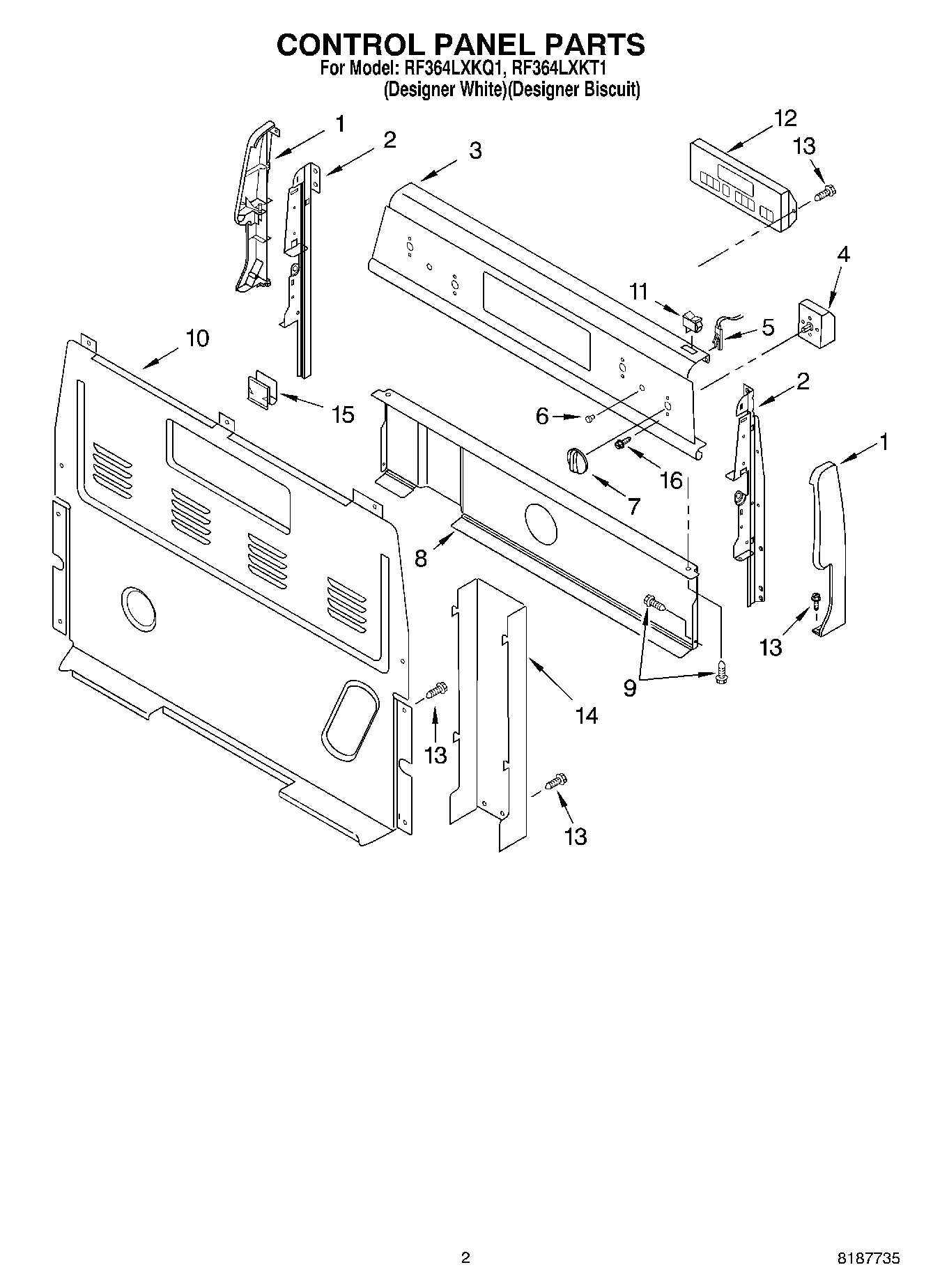

RF364LXKT1 02 – CONTROL PANEL

RF364LXKT1 02 – CONTROL PANEL

Written by

in

RF364LXKT1 02 – CONTROL PANEL

Products

PositionProduct
1Endcap (Biscuit Right Hand)
1Endcap (Biscuit Left Hand)
1Endcap (White Right Hand)
1Endcap (White Left Hand)
2Support, Endcap (Left Hand)
2Support, Endcap (Right Hand)
3Panel, Backguard (Biscuit)
3Panel, Backguard (White)
4WP3148952 Whirlpool Oven Infinite Switch
4SWITCH-INF
5WP8523265 Whirlpool Indicator Light
6WP3196068 Whirlpool Light Lens
7Knob, Control (4) (Biscuit)
7WP8522565 Whirlpool Knob
8Shield, Heat
9Screw
10WP8272473 Whirlpool Rear Cover
11Switch, Rocker (Biscuit)
113149360 Whirlpool Light Switch
12WP6610457 Whirlpool Electronic Control Board + Core
12Control, Range (Biscuit)
13SCREW
14WPW10326122 Whirlpool Black Cover
15WP8273564 Whirlpool Clip
16WP3400882 Whirlpool Screw
