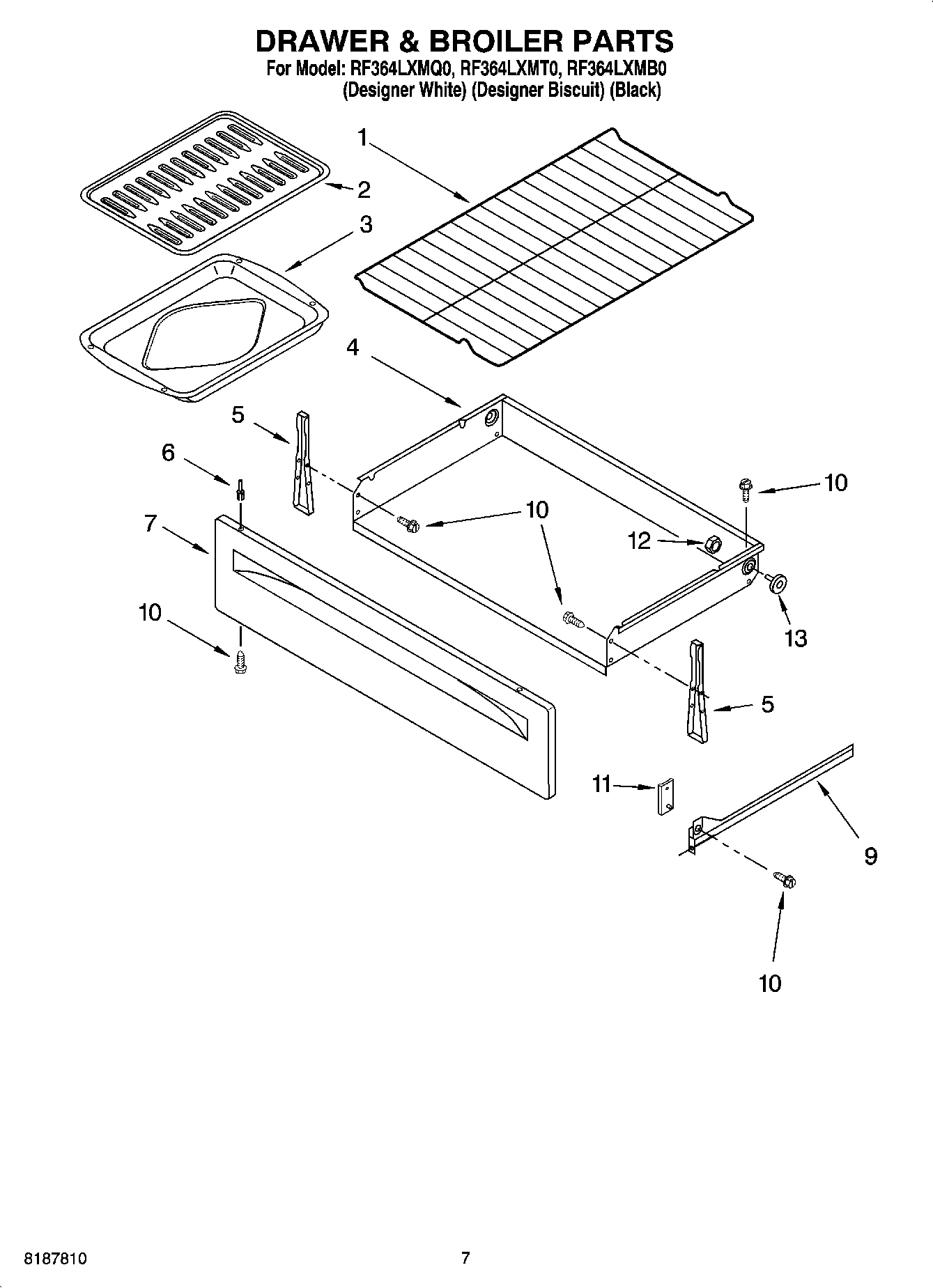

RF364LXMT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

RF364LXMT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Written by

in

RF364LXMT0 05 – DRAWER & BROILER PARTS, MISCELLANEOUS PARTS

Products

PositionProduct
WPL ARI160912A
WP3196154 Whirlpool Screw Assembly
8273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
Grease
3196696 Whirlpool Clip
3184020 Whirlpool Oven Wire
W11244557 Whirlpool Screw
1
Wire (14 Ga. 200 c Brown)
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
WPL 8316781
WPL 8524132
WPL ARI160911A
WPL ARI160910A
WPL ARI160909A
WPL ARI160908A
WPL ARI160907A
WPL ARI160906A
Harness, Wire (Oven Light)
WPL 8523718
WPL 4454241
WPL 8524114
WPL 8524089
WPL 8524088
WPL ARI160913A
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
242831 Whirlpool Oven Wire
W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
285006 Whirlpool Spray
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
FOIL, ALUMINUM OVEN (18“ X 25 )
WPW10208653 Whirlpool Insulation
WPL 799832
511873 Whirlpool Refrigerator Paint
350942 Whirlpool Spray Paint
Almond (Uncut)
WP72107 Whirlpool Touchup
799344 Whirlpool Refrigerator Paint
72017 Whirlpool Appliance Touch-Up Paint White
350956 Whirlpool Spray Assembly
350930 Whirlpool White Spray Paint
814381 Whirlpool Pin
8212471 Whirlpool Oven Paint
Clip, Ground Wire
1WPW10256908 Whirlpool Oven Range Rack
2WP3195996 Whirlpool Pan Grid
3WP3196076 Whirlpool Broil Pan
4Drawer, Storage
5W10838990 Whirlpool Mounting Bracket
6WP3196814 Whirlpool Rivet
63196815 Whirlpool Oven Rivet
6WP3196813 Whirlpool Rivet
7W11219377 Whirlpool Drawer Panel
7W11230476 Whirlpool Drawer Panel
7W11230488 Whirlpool Drawer Panel
9Rail, Drawer (Left Hand)
9Rail, Drawer (Right Hand)
10WP3400832 Whirlpool Screw
11Spacer, Glide
12WP487939 Whirlpool Refrigerator Nut
13814229 Whirlpool Primary Roller
