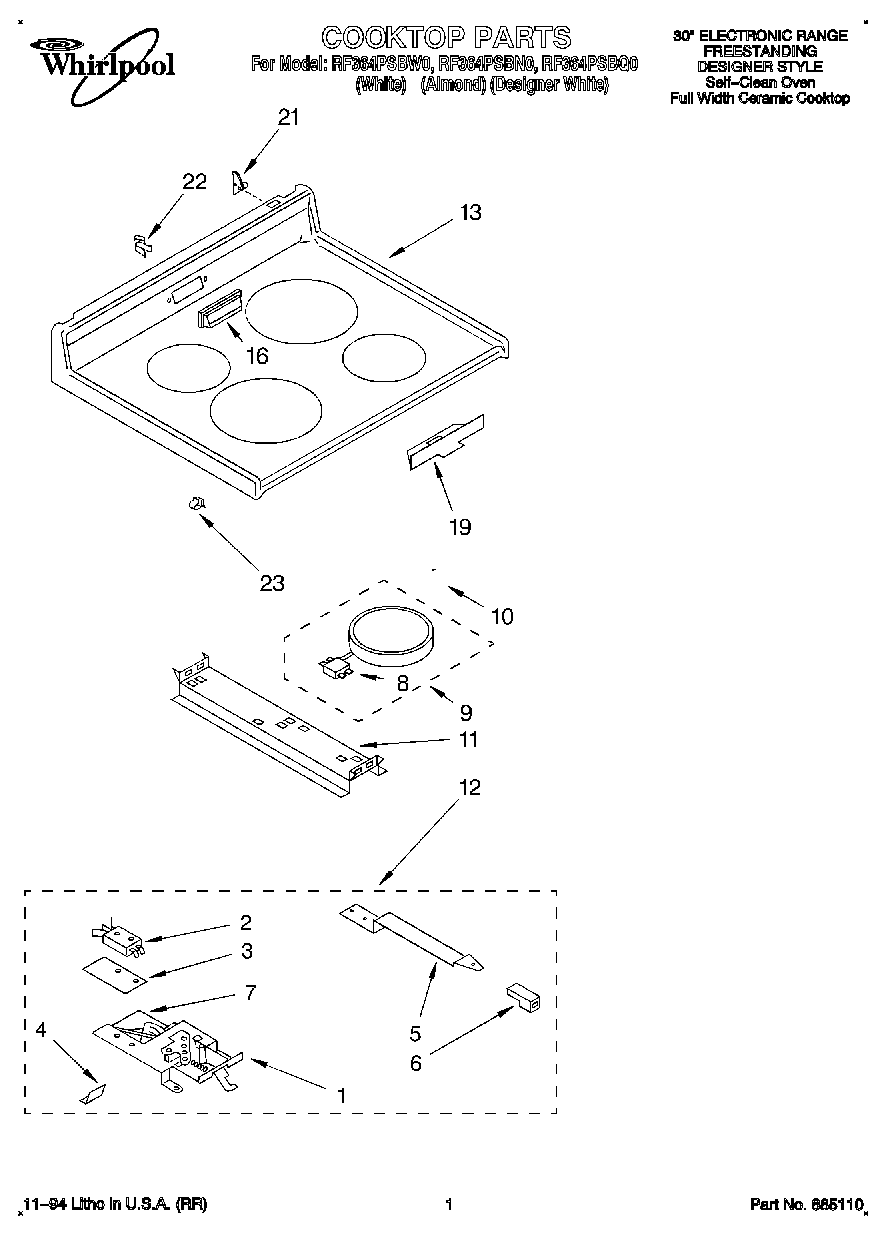

RF364PSBN0 01 – COOKTOP, LITERATURE

Products

Position	Product
	Use and Care Guide
	Wiring Diagram
	Tech Sheet
	Instructions, Installation
	WPL LIT3150400
1	SCREW
2	Safety Switch
2	Screw
3	Insulator, Switch
4	Screw
4	Shield, Latch
5	Screw
5	Handle, Latch
5	Handle, Latch
6	Knob, Latch
6	Knob, Latch
6	WP486579 Whirlpool Air Conditioner Screw
7	Latch Mechanism
8	Limiter Temp. (7“ – RF)
8	Limiter, Temperature (Use W/3183648 Element)
9	Element, Surface (2100W Right Rear)
9	Element, Surface (1700W Right Front)
10	WP486754 Whirlpool Compactor Screw
10	Spring, Locator
11	Screw (2)
11	Bracket, (2) Element Support
12	Latch-Harness Assy (White/Almond Mdl.)
12	Latch-Harness Assy (Designer White Mdl)
13	Cooktop (Designer White Mdl)
13	WP308685 Whirlpool Microwave Screw
13	Cooktop (White Mdl.)
13	Cooktop (Almond Mdl.)
16	cover, vent (almond)
16	Cover, Vent (White)
19	Shield, Probe
21	Bracket, Cooktop (Left)
21	Bracket, Cooktop (Screw,(4) 10-16 x 1/2)
21	Bracket, Cooktop (Right)
22	Clip, Vent Cover
23	Clip
