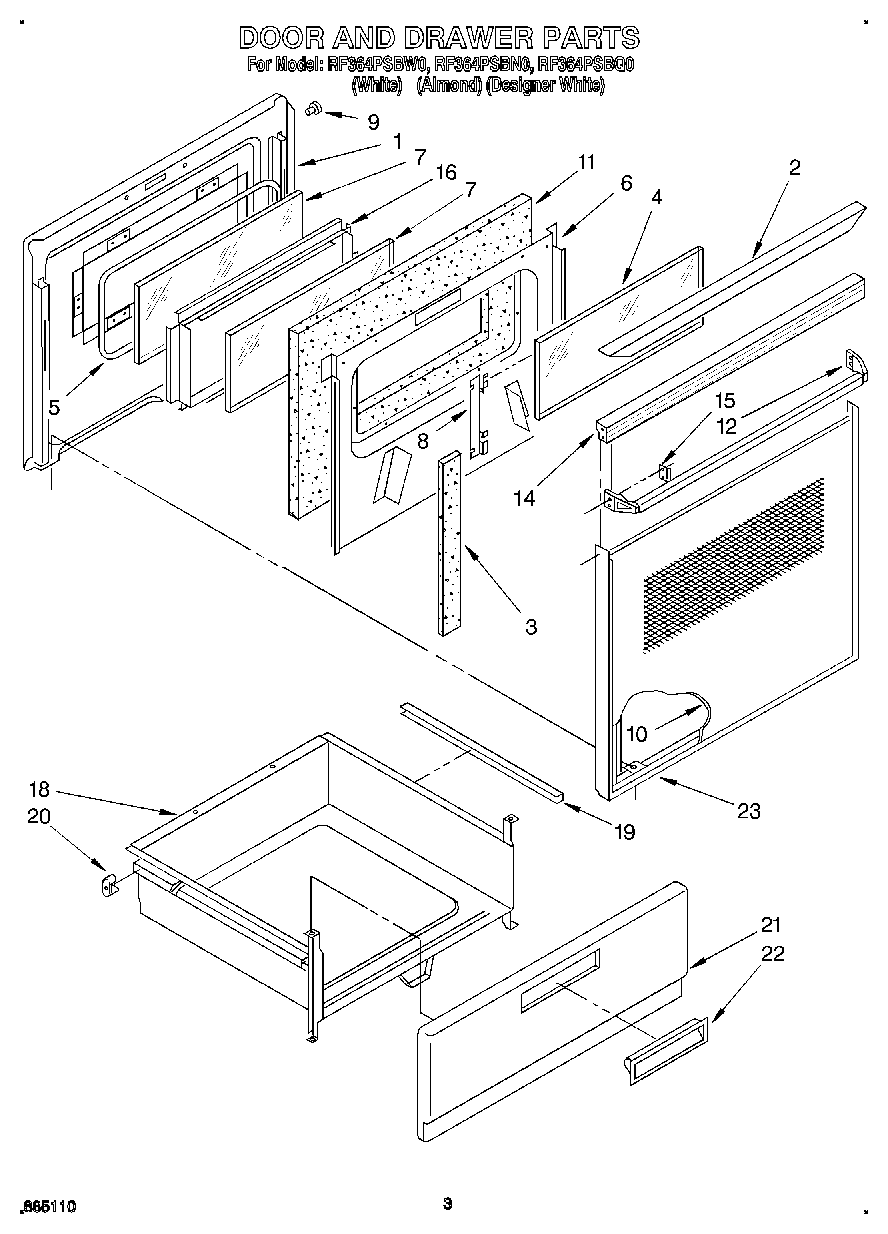

RF364PSBN0 03 – DOOR AND DRAWER

Products

Position	Product
1	Screw
1	Screw
1	Liner, Door
2	Top, Door Frame (Screw (2))
2	Cap, Top
2	Screw
3	Seal, Flange (2)
4	Glass, Clear
5	Seal, Door
6	Retainer,
7	WP3169203 Whirlpool Door Glass
8	Retainer, Glass (2)
9	Bumper (4)
10	Glass, Panel (Black Model)
10	Glass, Panel (White)
11	Insulation, Door
12	Handle, Oven Door
12	Handle, Door (White)
14	Screw, (2) 10-16 x 1/2
14	Top, Door (Black Model)
14	WP308685 Whirlpool Microwave Screw
14	Top, Door (White Model)
15	Clip, Mtg (2)
16	Frame, Inner
16	Screw
18	Drawer, Utility
19	Protector, Drawer (2)
20	Glide, Rear (2)
21	Panel, Drawer (White)
21	Panel, Drawer (Almond)
21	WP488627 Whirlpool Refrigerator Screw
22	Handle, Snap-In (White)
22	Handle, Snap-In (Almond)
23	Screw, 10A x 1/2 (2) (Black)
23	WP355515 Whirlpool Screw
23	Frame, Door
