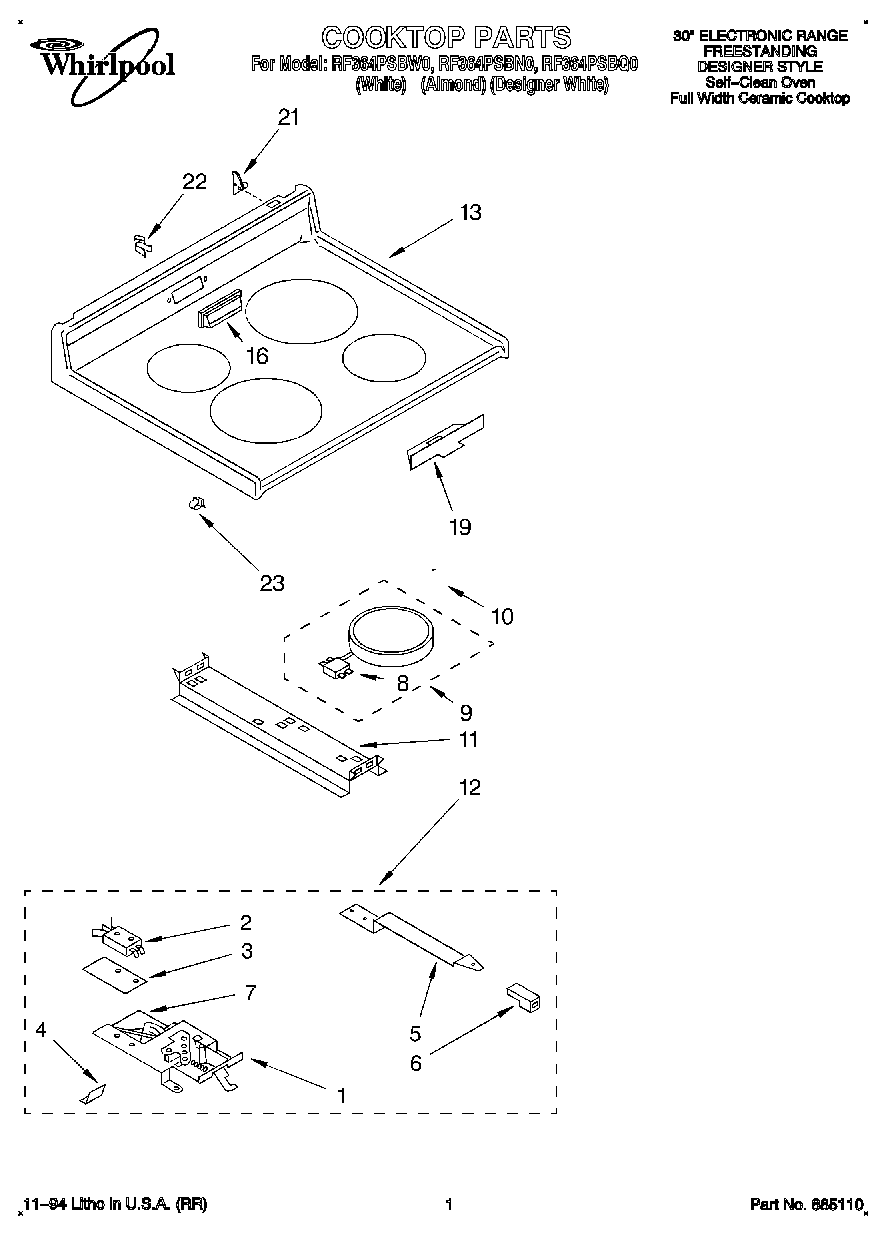

RF364PSBQ0 01 – COOKTOP, LITERATUREadmin2025-04-26T11:38:11+00:00RF364PSBQ0 01 – COOKTOP, LITERATURE
Products
| Position | Product |
|---|
| Use and Care Guide |
| Wiring Diagram |
| Tech Sheet |
| Instructions, Installation |
| WPL LIT3150400 |
| 1 | SCREW |
| 2 | Safety Switch |
| 2 | Screw |
| 3 | Insulator, Switch |
| 4 | Screw |
| 4 | Shield, Latch |
| 5 | Screw |
| 5 | Handle, Latch |
| 5 | Handle, Latch |
| 6 | Knob, Latch |
| 6 | Knob, Latch |
| 6 | WP486579 Whirlpool Air Conditioner Screw |
| 7 | Latch Mechanism |
| 8 | Limiter Temp. (7`` - RF) |
| 8 | Limiter, Temperature (Use W/3183648 Element) |
| 9 | Element, Surface (2100W Right Rear) |
| 9 | Element, Surface (1700W Right Front) |
| 10 | WP486754 Whirlpool Compactor Screw |
| 10 | Spring, Locator |
| 11 | Screw (2) |
| 11 | Bracket, (2) Element Support |
| 12 | Latch-Harness Assy (White/Almond Mdl.) |
| 12 | Latch-Harness Assy (Designer White Mdl) |
| 13 | Cooktop (Designer White Mdl) |
| 13 | WP308685 Whirlpool Microwave Screw |
| 13 | Cooktop (White Mdl.) |
| 13 | Cooktop (Almond Mdl.) |
| 16 | cover, vent (almond) |
| 16 | Cover, Vent (White) |
| 19 | Shield, Probe |
| 21 | Bracket, Cooktop (Left) |
| 21 | Bracket, Cooktop (Screw,(4) 10-16 x 1/2) |
| 21 | Bracket, Cooktop (Right) |
| 22 | Clip, Vent Cover |
| 23 | Clip |
