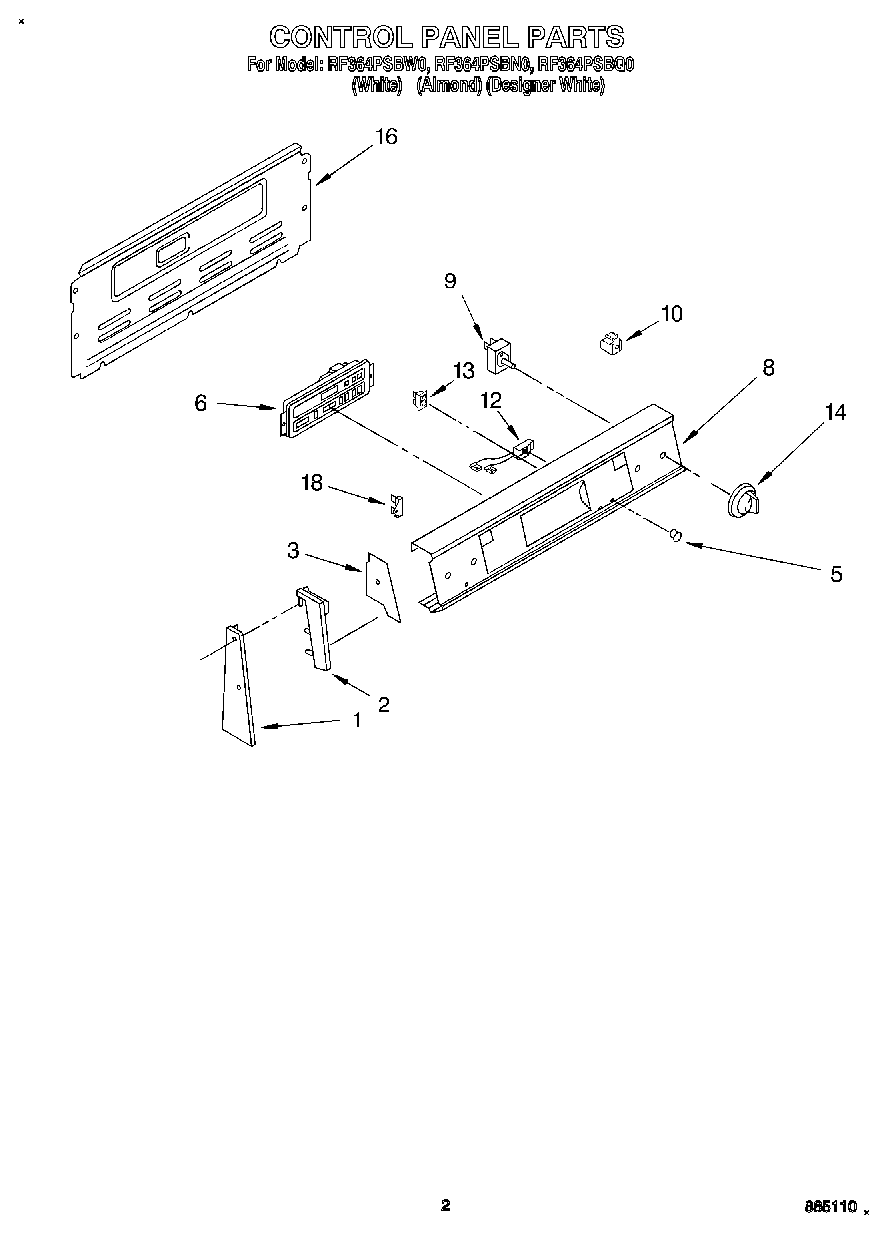

RF364PSBQ0 02 – CONTROL PANEL

Products

Position	Product
1	End Trim L.H.
1	End Trim R.H.
1	Washer
2	End Cap L.H.
2	Screw,
2	End Cap R.H.
3	Shield (2)
5	Lens, Amber
6	Electronic Control (White/Almond Mdl.)
6	Electronic Control (Designer White Mdl)
6	WP965173 Whirlpool Dishwasher Screw
8	Control Panel (White/Almond Mdl.)
8	Control Panel (Designer White Mdl)
9	WP3149400 Whirlpool Oven Infinite Switch
9	Screw, 8-32 x 3/16 (2)
9	WP3149404 Whirlpool Oven Surface Element Switch
10	Adapter, Terminal
12	Indicator Light (Surface Unit On)
12	Light, Indicator (Hot Surface (1))
13	Switch, Rocker (White)
13	Switch, Rocker
14	Knob, (4) Infinite Switch (White/Almond/Gold)
14	Knob, (4) Infinite Switch (Designer Mdl)
16	Rear Cover Contr
16	SCREW
18	Fuse, Thermal
18	Screw (2)
