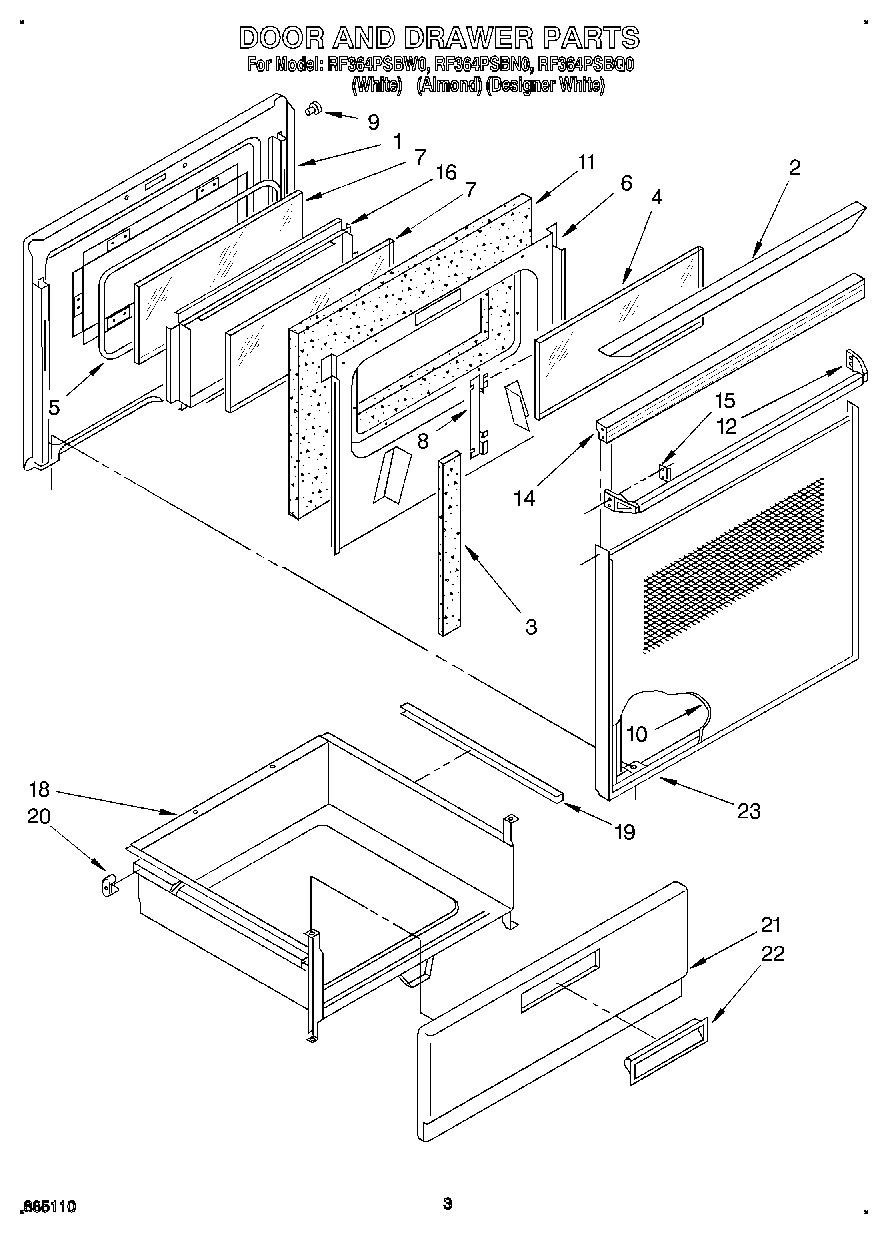

RF364PSBQ0 03 – DOOR AND DRAWER

RF364PSBQ0 03 – DOOR AND DRAWER

Written by

in

RF364PSBQ0 03 – DOOR AND DRAWER

Products

PositionProduct
1Screw
1Screw
1Liner, Door
2Top, Door Frame (Screw (2))
2Cap, Top
2Screw
3Seal, Flange (2)
4Glass, Clear
5Seal, Door
6Retainer,
7WP3169203 Whirlpool Door Glass
8Retainer, Glass (2)
9Bumper (4)
10Glass, Panel (Black Model)
10Glass, Panel (White)
11Insulation, Door
12Handle, Oven Door
12Handle, Door (White)
14Screw, (2) 10-16 x 1/2
14Top, Door (Black Model)
14WP308685 Whirlpool Microwave Screw
14Top, Door (White Model)
15Clip, Mtg (2)
16Frame, Inner
16Screw
18Drawer, Utility
19Protector, Drawer (2)
20Glide, Rear (2)
21Panel, Drawer (White)
21Panel, Drawer (Almond)
21WP488627 Whirlpool Refrigerator Screw
22Handle, Snap-In (White)
22Handle, Snap-In (Almond)
23Screw, 10A x 1/2 (2) (Black)
23WP355515 Whirlpool Screw
23Frame, Door
