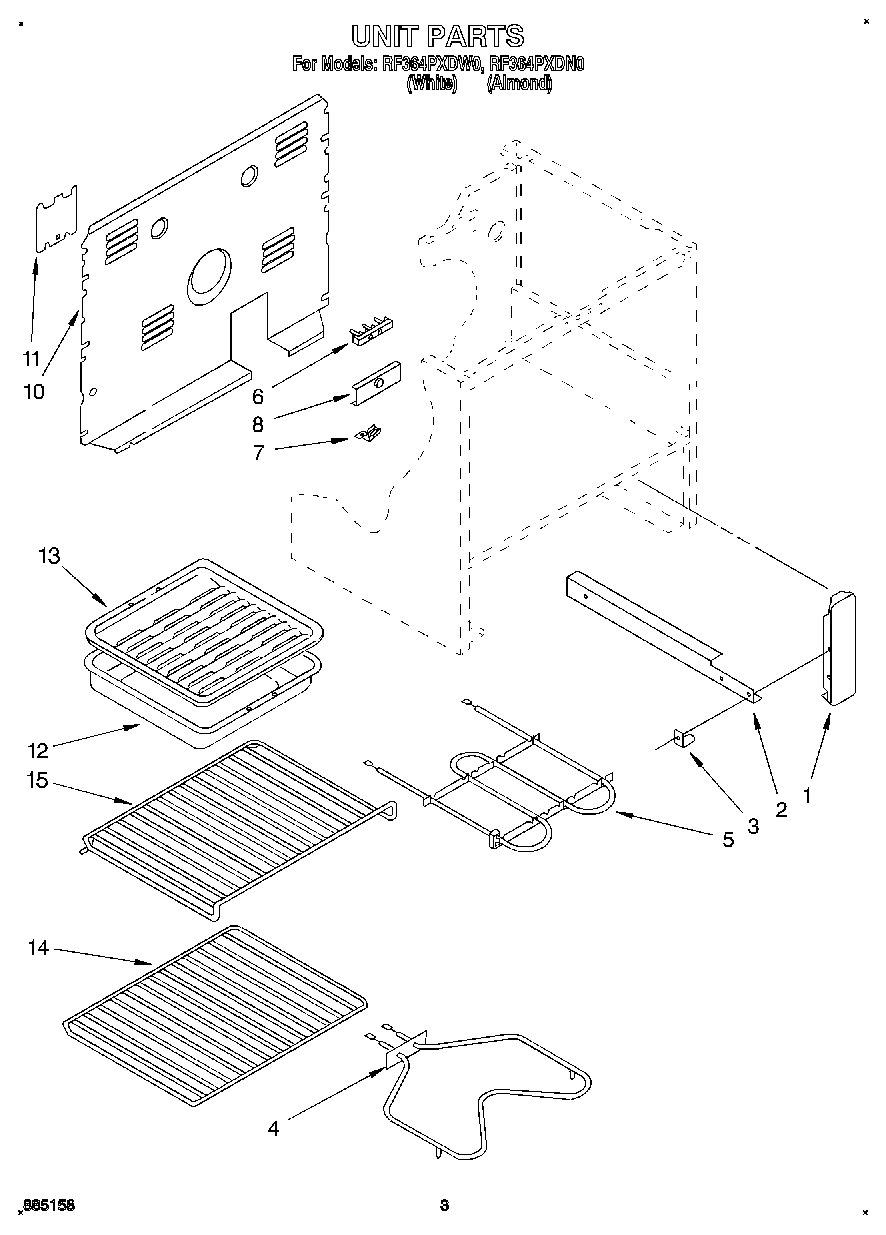

RF364PXDN0 02 – UNIT

Products

PositionProduct
1Bracket, Mounting (2)
2Rail L.H. (Includes Illus. 3)
2Rail R.H. (Includes Illus. 3)
3Glide, Front (2)
3Screw, 10A x 1/2 (2) (Black)
4ELMNT-BAKE
5Screw (2)
5WP660579 Whirlpool Range Wall Oven Broil Element, 3000W, 240V
6Screw, (2) 10-16 x 1
6WP8203546 Whirlpool Terminal Block
6WP112432 Whirlpool Nut Assembly
7Ground Strap
7Clip, Ground Wire
8Bracket, Service
10Cover, Rear
11Cover, Service
11SCREW
134396923 Whirlpool Broil Pan Set Gray Porcelain
14WPL 308173
15WA906B Whirlpool Cooktop Glass Scraper
15W10355051 Whirlpool Cooktop Cleaner Affresh (10 Oz)
15WPL 3169093
15WPL 3169094
15WPL 308172
158273888A Whirlpool Range Oven Anchor Anti-Tip Bracket Kit
